Model: Galvanized C purlin
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
Categories: C purlin machine
WhatsApp: 0086153021035513
E-mail: Jay@haixingsteel.com

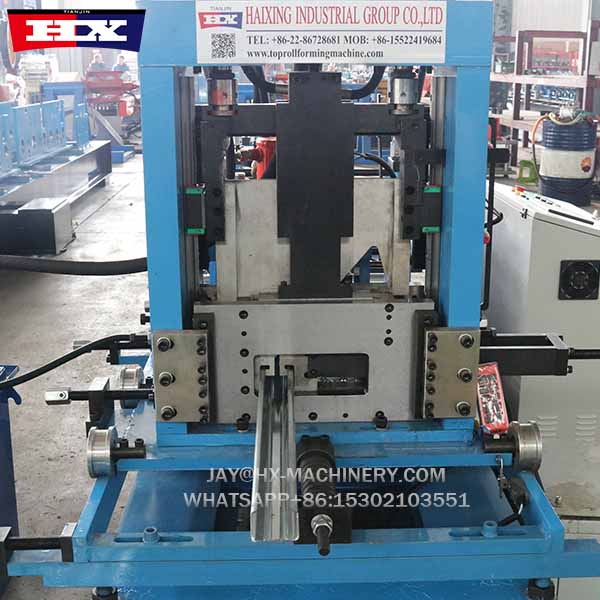

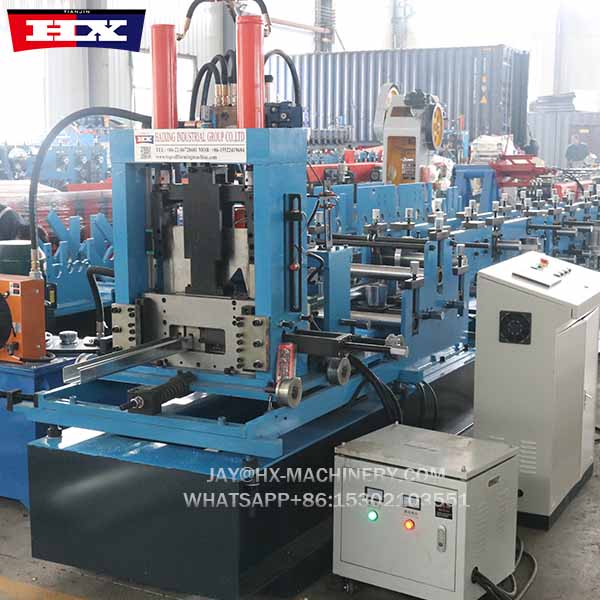

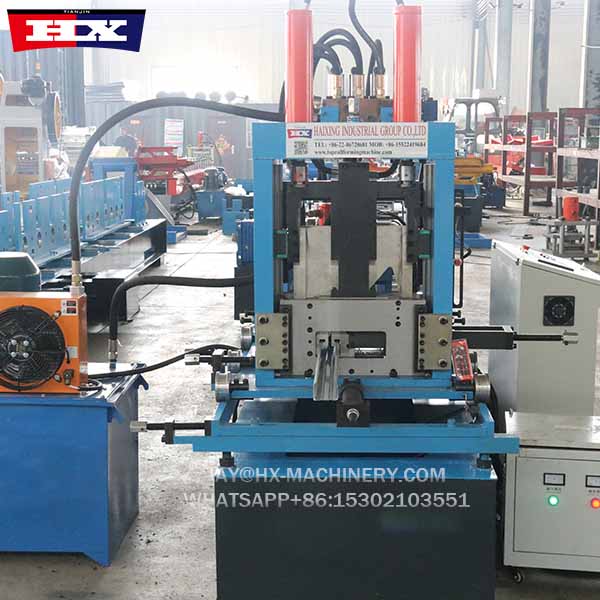

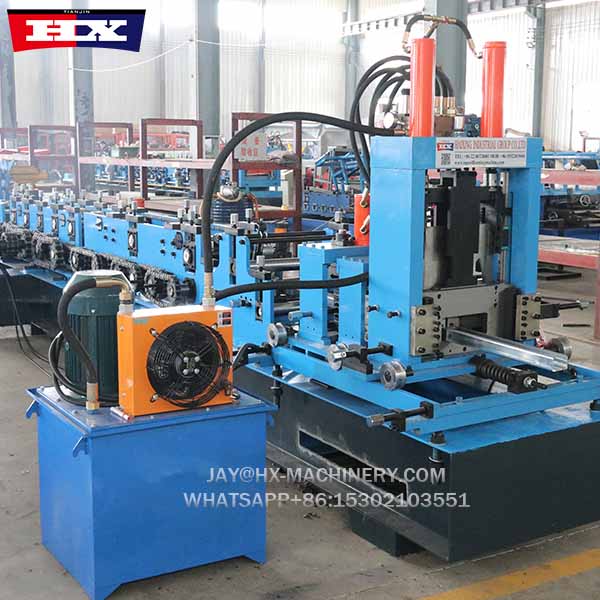

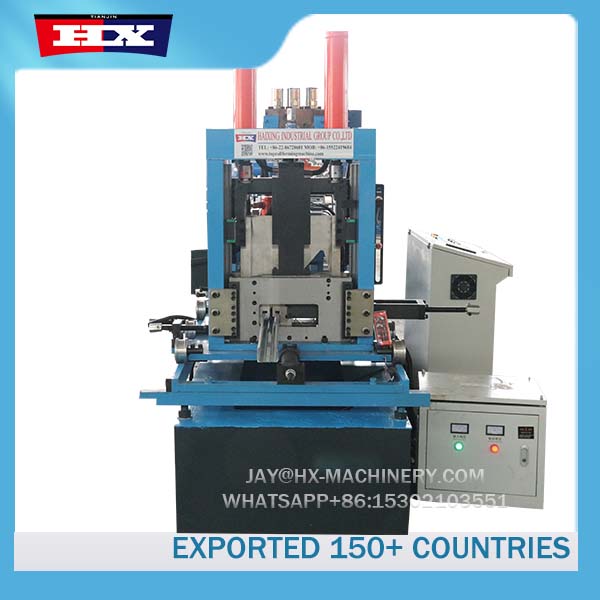

c channel forming machine
The C channel forming machine ensures fast and accurate production of C channels with minimal material waste. Its robust design offers long-lasting performance, reducing downtime and maintenance costs. Easy to operate and highly efficient, it's perfect for high-volume construction projects.
.

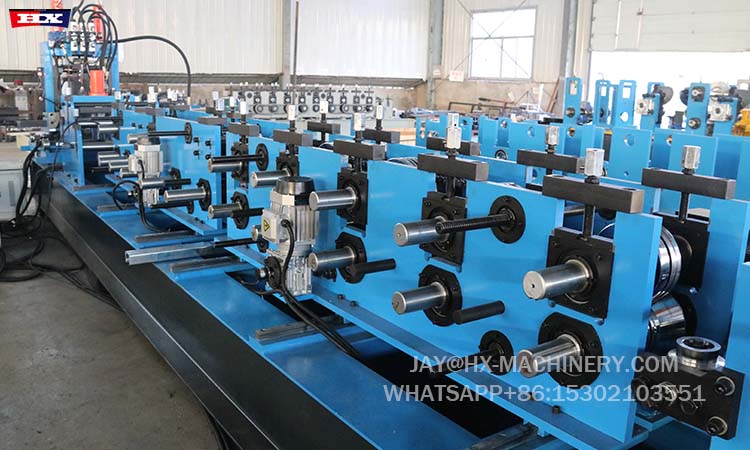

c channel forming machine
Detail

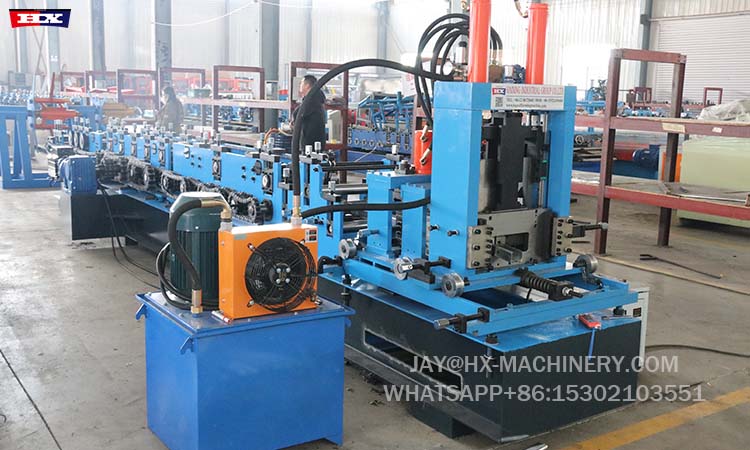

c channel forming machine
|
No.
|
Main Parameter of c purlin roll forming machine
|
|
|
1
|
Suitable to process
|
Galvanized steel strips
|
|
2
|
Roller
|
16rollers+leveling axis 4rollers
|
|
3
|
Dimensions
|
10500*1500*1600mm
|
|
4
|
Main Motor size
|
11Kw*2
|
|
5
|
Hydraulic pump
|
5.5Kw
|
|
6
|
Thickness of the plate
|
1.5-3.0mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ85mm
|
|
10
|
Weight
|
About 8.5T
|
|
11
|
Main structure of the machine
|
450H steel
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
20mm
|
|
14
|
Chain Wheel and Cycle Chain
|
2Inch
|
|
15
|
Voltage
|
380V 50HZ 3Phase
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Cut off the way
|
Hydraulic torsion shear
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Gear pump
|
|
20
|
Touch screen
|
Delta
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
