Model: Galvanized C purlin
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
Categories: C purlin machine
WhatsApp: 0086153021035513
E-mail: Jay@haixingsteel.com

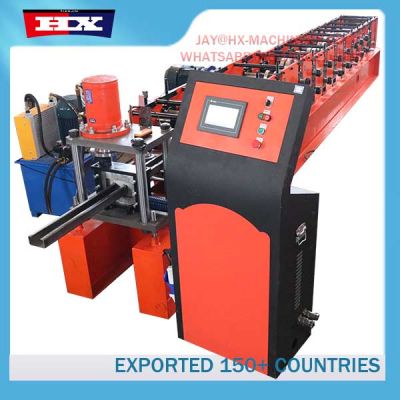

C purlin forming machine
This C purlin forming machine features adjustable sizes, high forming accuracy, and stable continuous running. Its automated control reduces errors, increases output, and supports flexible profile changes. Strong structure and easy maintenance make it ideal for long-term industrial use
.

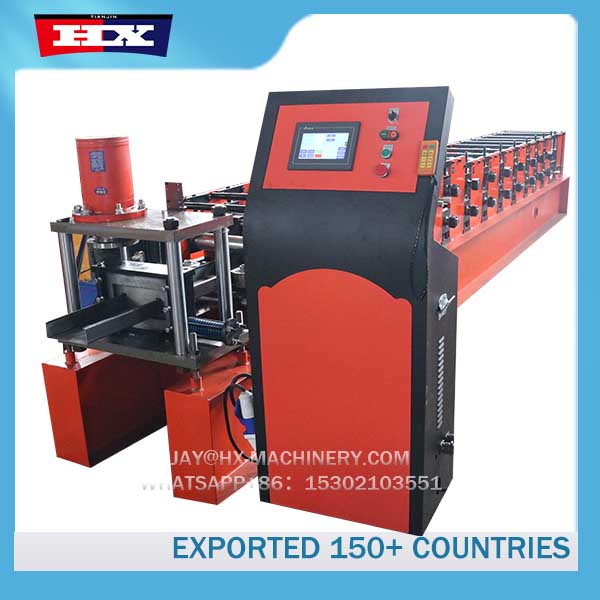

C purlin forming machine
Detail
C purlin forming machine
|
No.
|
Main Parameter of c purlin roll forming machine
|
|
|
1
|
Suitable to process
|
Galvanized steel strips
|
|
2
|
Roller
|
16rollers+leveling axis 4rollers
|
|
3
|
Dimensions
|
10500*1500*1600mm
|
|
4
|
Main Motor size
|
11Kw*2
|
|
5
|
Hydraulic pump
|
5.5Kw
|
|
6
|
Thickness of the plate
|
1.5-3.0mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ85mm
|
|
10
|
Weight
|
About 8.5T
|
|
11
|
Main structure of the machine
|
450H steel
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
20mm
|
|
14
|
Chain Wheel and Cycle Chain
|
2Inch
|
|
15
|
Voltage
|
380V 50HZ 3Phase
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Cut off the way
|
Hydraulic torsion shear
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Gear pump
|
|
20
|
Touch screen
|
Delta
|
|
21
|
Length Tolerance
|
±2mm
|
