Develivery time:25-35 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp: 008615302103551
E-mail: Jay@hx-machinery.com
600 Cable Tray Manufacturing Machine
The 600 cable tray roll forming machine delivers fast, accurate production of 600mm cable trays. Its advanced automation reduces labor costs and ensures consistent quality. The machine’s robust design minimizes downtime, while low maintenance requirements make it ideal for large-scale, high-volume production.

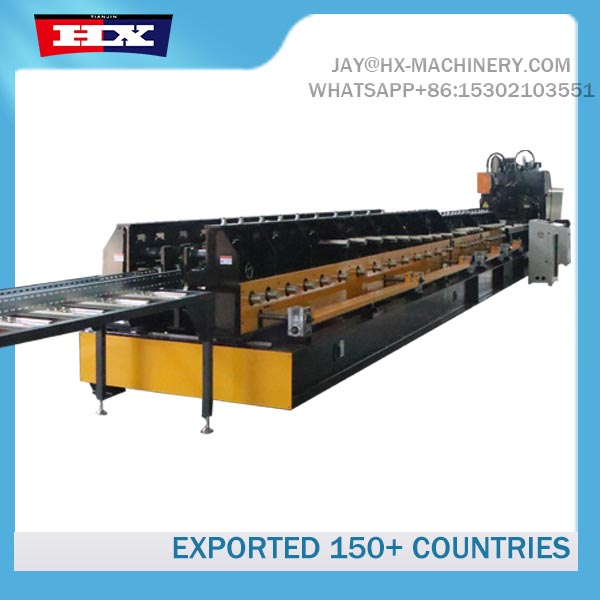

600 cable tray roll forming machine
Detail

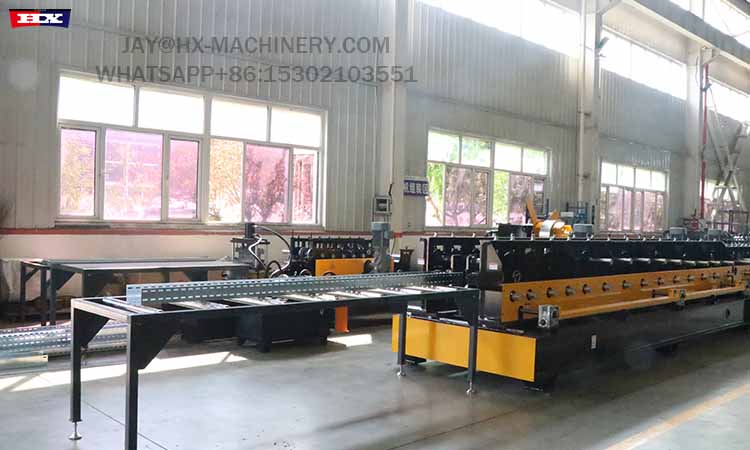

600 cable tray roll forming machine
|
No.
|
Automated cable tray production line
|
|
|
1
|
Product Name
|
Automated cable tray production line
|
|
2
|

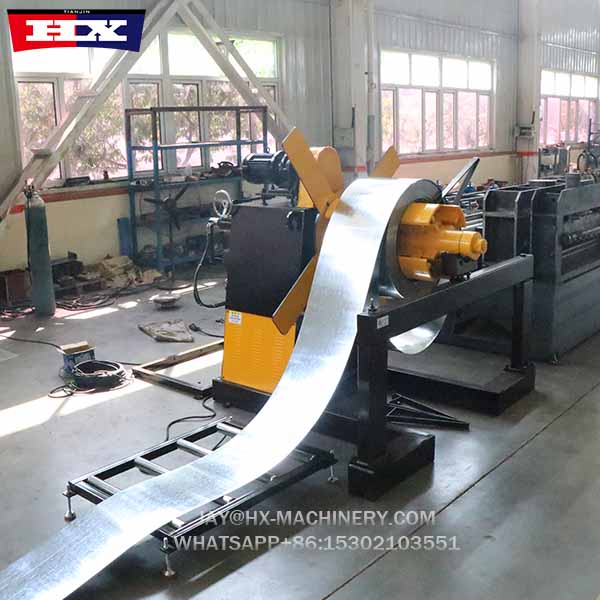

Material rack |
Hydraulic core expansion
Electric unwinding function
Inner diameter expansion and contraction range: φ460-520 mm
Maximum coil outer diameter: φ1500 mm
Load capacity: 6 tons
|
|
3
|
Dimensions
|
30*2.5*2.2m
|
|
4
|
Motor Power
|
7.5Kw
|
|
5
|
Hydraulic components
|
11 KW
|
|
6
|
Thickness of the plate
|
0.8-1.5mm
|
|
7
|
Productivity
|
8-16m/min
|
|
8
|
Cutting type
|
Hydraulic shear
|
|
9
|
Brand of electrical control cabinet
|
Delta or customized according to customer requirements
|
|
10
|
Weight
|
About 6000kgs
|
|
11
|
Touch screen/inverter
|
Delta or customized according to customer requirements
|
|
12
|
High-speed platform
|
3m roller feed table (1 unit)
Main motor power (1.5kW)
Electric opening and closing
|
|
13
|
Forming size |
400/100, 400/50, 300/100, 300/50,
200/100, 200/50, 100/100, 100/50, 50/50
|
|
14
|
Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
|
15
|
Voltage | 400V±5％，60Hz，3p, be customized |
|
16
|
Feeding thickness
|
0.8-1.5 mm |
|
17
|
Rows | 26 |
|
18
|
Feeding width |
200-650mm（200-800）
|
|
21
|
Length Tolerance |
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
