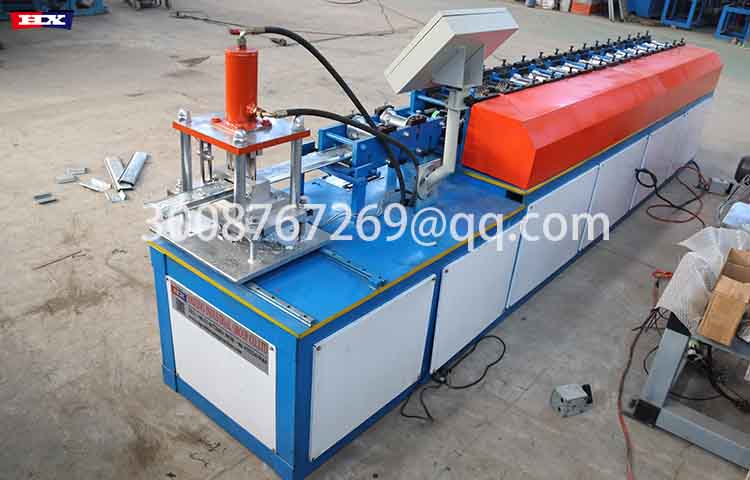

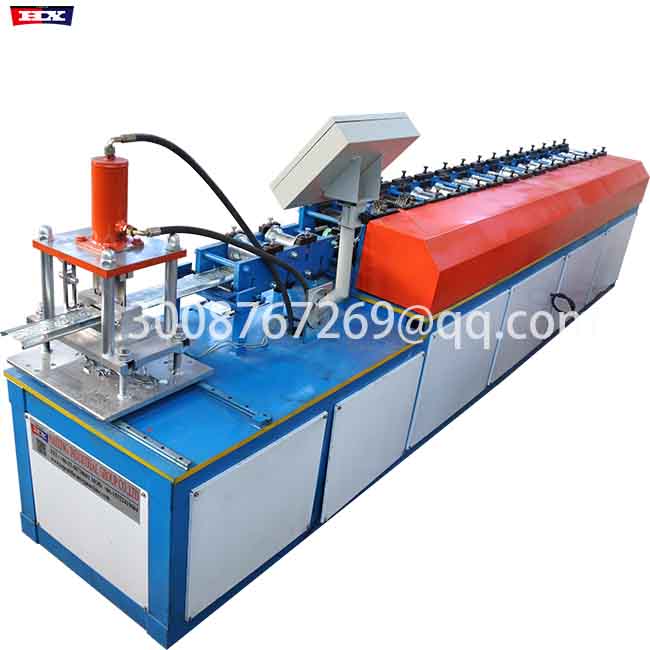

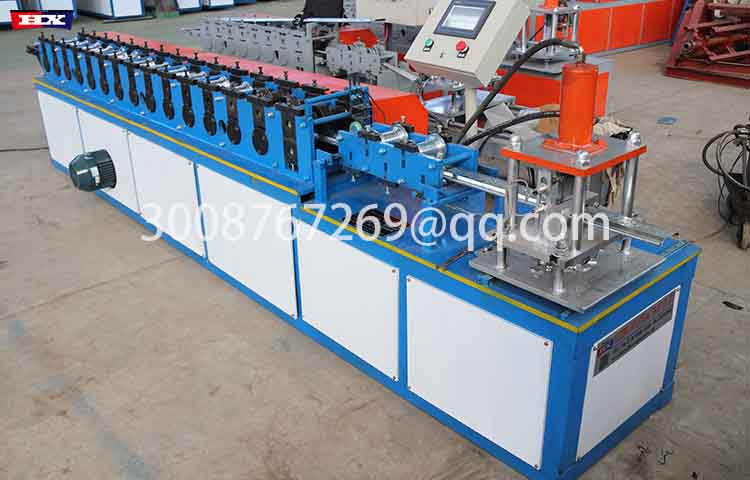

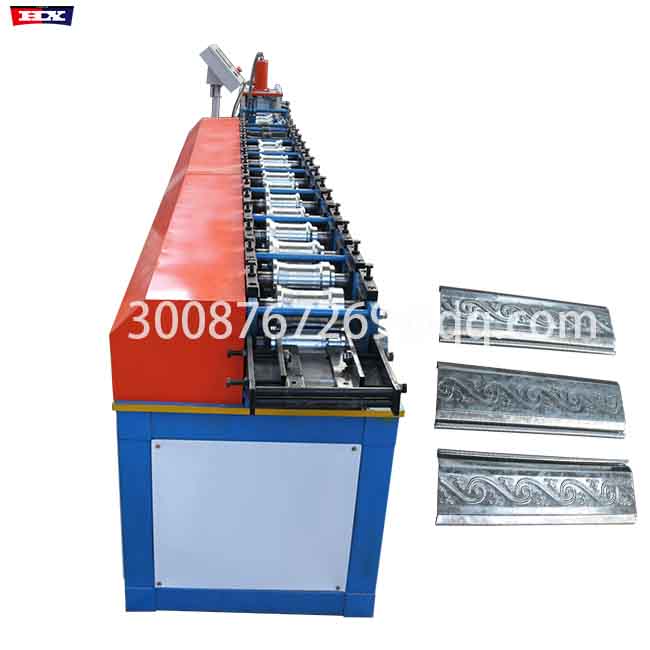

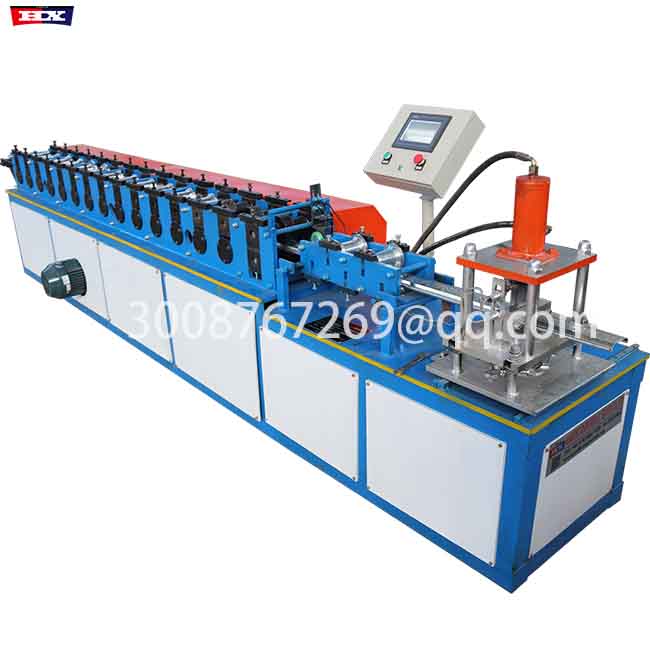

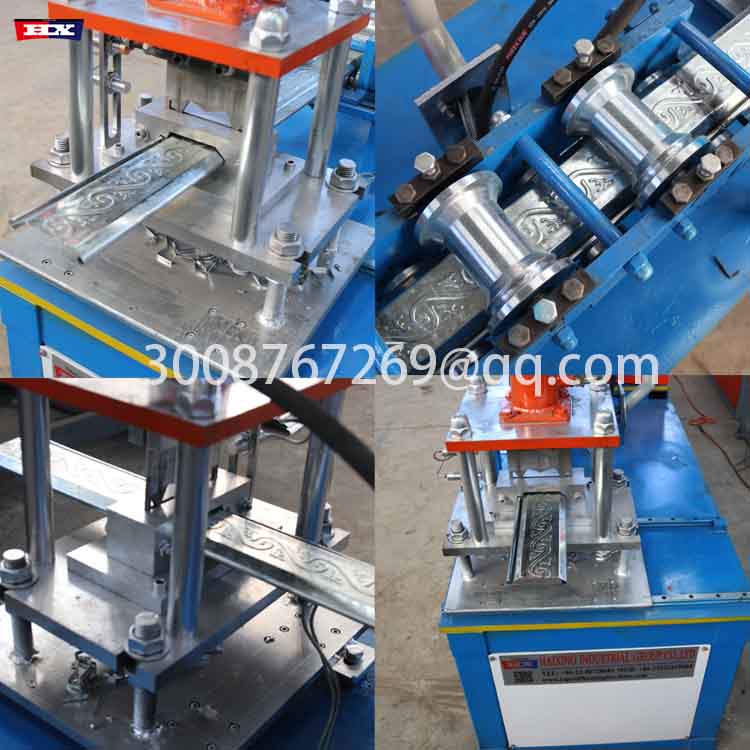

door frame making machine
door frame making machine door frame making machine door frame making machine door frame making machine door frame making machine

door frame making machine

Product ID : HX-door frame
Product Attributes :

Product Attributes :

Model:HX-door frame

Delivery time: 20-30 workdays



Payment: 30% deposit upon order confirmation, 70% balance before shipment.



Warranty Period:2 years



Working voltage: 380v 50hz 3phase(as your need)

Product Description

Tianjin Haixing Import & Export Trade Co., Ltd. specializes in the global export of roll forming machinery and related equipment, backed by 28 years of industry expertise. Our CE/ISO-certified metal roofing and color steel tile roll forming machines are trusted in over 100 countries, supported by lifelong technical assistance and real-time after-sales service.

Featuring intelligent controls and premium materials, our roll-up door forming machines combine precision engineering with user-friendly operation. With millimeter-level accuracy, they deliver unmatched durability and consistent high performance for industrial applications.

door frame making machine
1
Suitable to process
Color alu-zinc steel strips
2

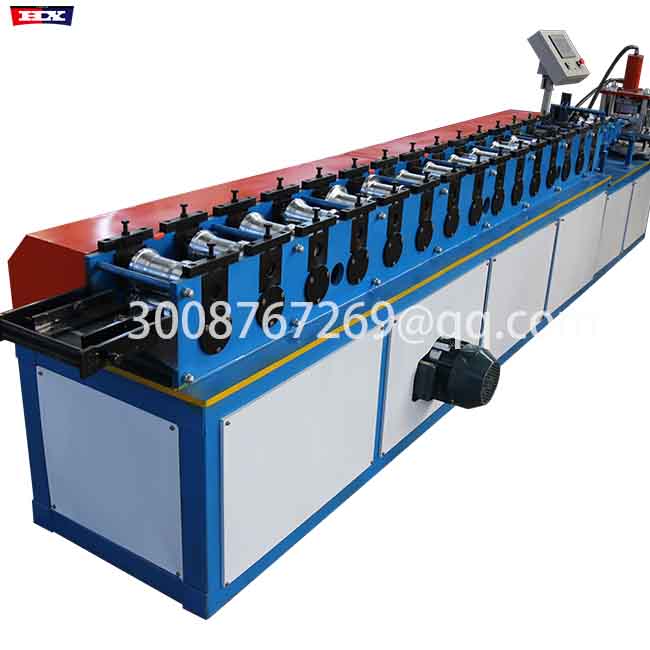

Roller
14Rows plus leveling device
3
Dimensions
7500*1350*1500mm
4
Motor Power
4Kw
5
Pump Station Motor
4kw Shanghai Lichao with fan
6
Thickness of the plate
0.6-0.8m
7
Productivity
10-15m/min
8

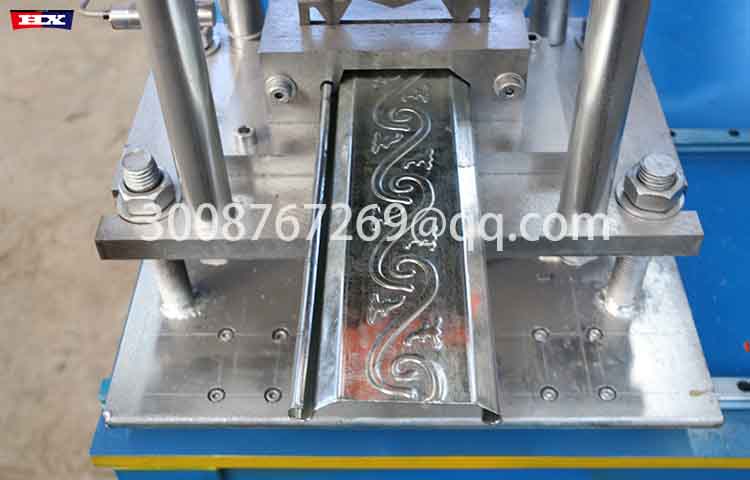

Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ50mm
10
Weight
About 4200kgs
11
Main structure of the machine
Square steel frame
12
Processing precision
Within 1.0mm
13
Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 60Hz 3phases or as customer’s need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Gear driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm

Details

Produces high-quality shutter doors with precision roll forming. Customizable molds, automated operation. Ideal for garages, shops & warehouses. Durable & efficient.
