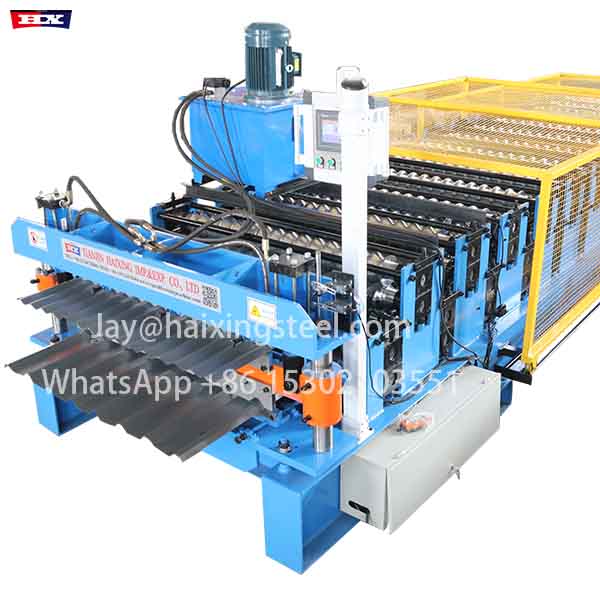

double corrugated roof sheet making machine
A Double Corrugated Roof Sheet Making Machine is an advanced roll forming system designed to produce double-layer corrugated metal roofing sheets, which offer superior strength, insulation, and durability compared to single-layer sheets. These machines are widely used in industrial, agricultural, and commercial construction due to their efficiency and high-quality output.
Detail
The Double Corrugated Roof Sheet Making Machine is a high-efficiency, durable, and versatile solution for modern roofing needs. Its dual-layer design enhances structural performance, making it ideal for industrial, agricultural, and commercial applications. With automation, energy efficiency, and low maintenance, this machine is a cost-effective investment for metal sheet manufacturers.
|

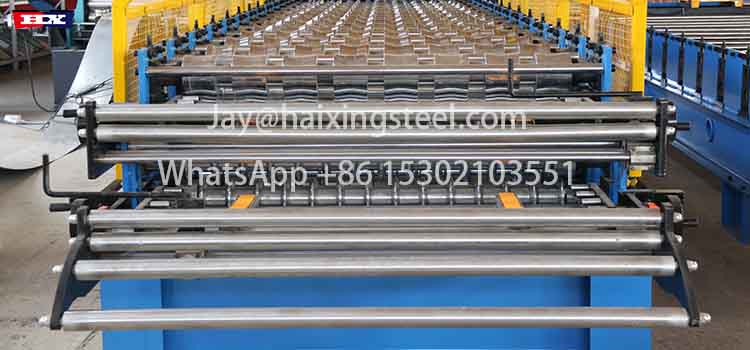

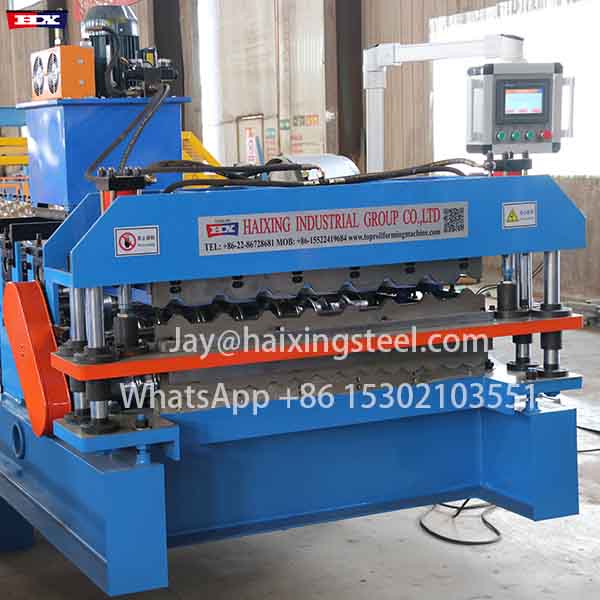

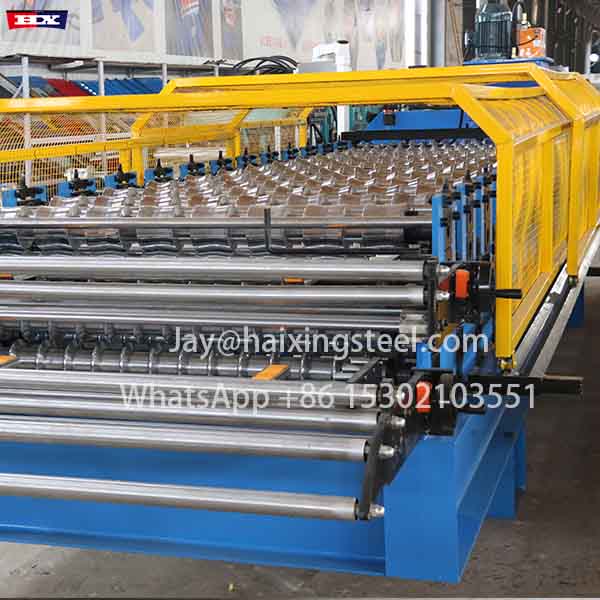

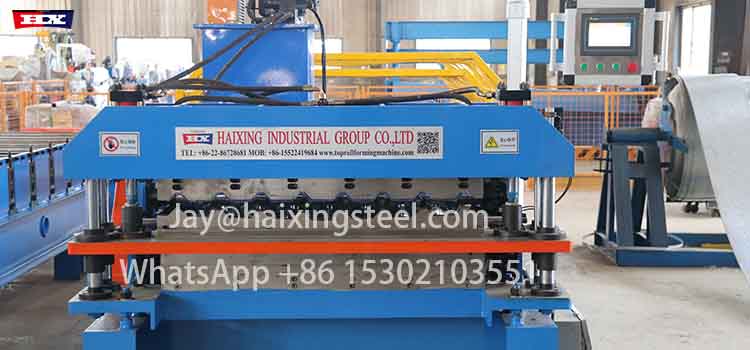

double corrugated roof sheet making machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
Up Layer :13Rows
Down Layer:13Rows |
|
3
|
Dimensions
|
6.8*1.7*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|

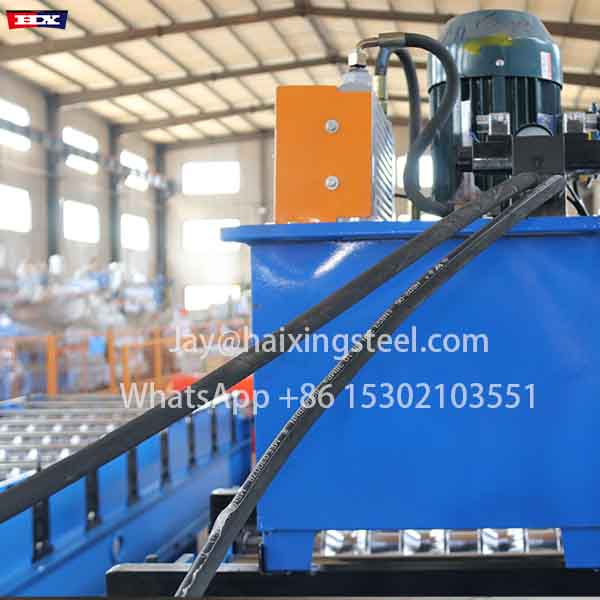

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 5800kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
|
22
|
Operation Language
|
Chinese/English/Spanish or based on customer’s need
|
Double layer roofing sheet roll forming machine Packing&Shipping
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
