Model：HX-double glazed
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use
glazed double layer machine

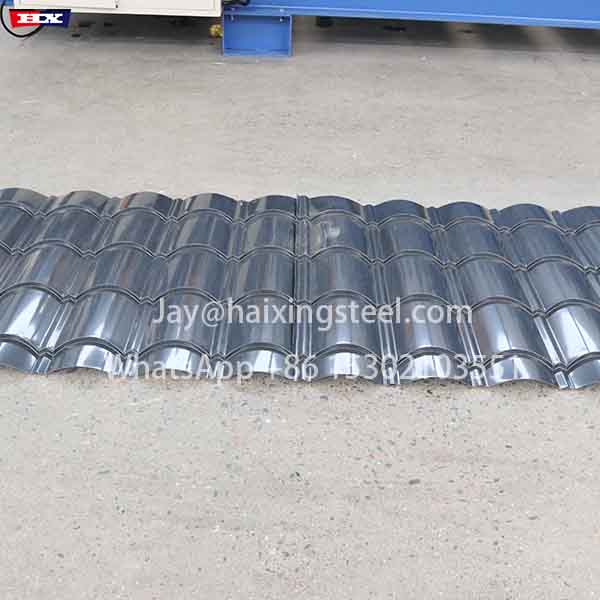

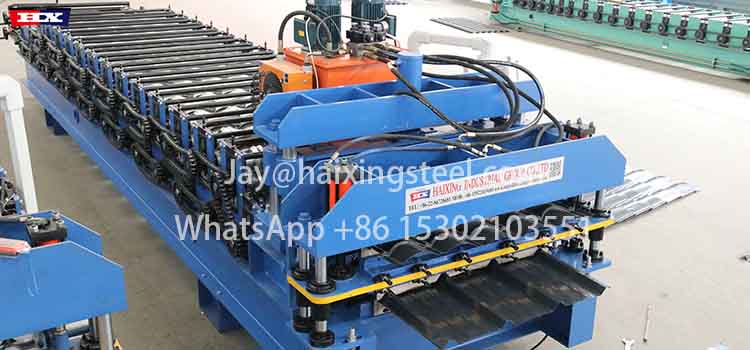

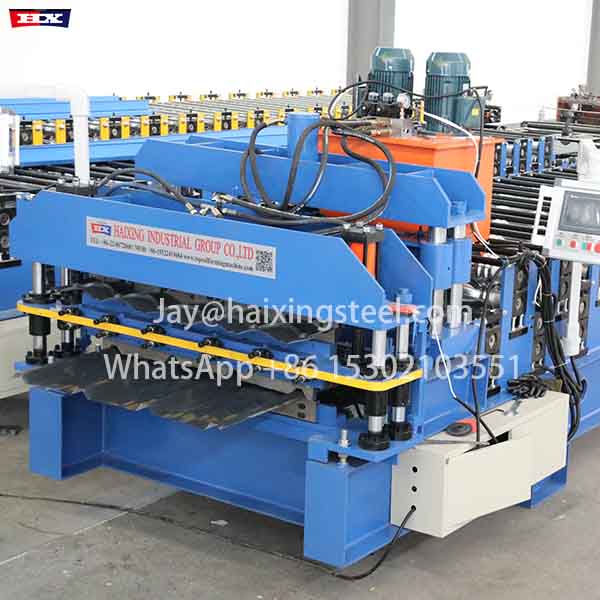

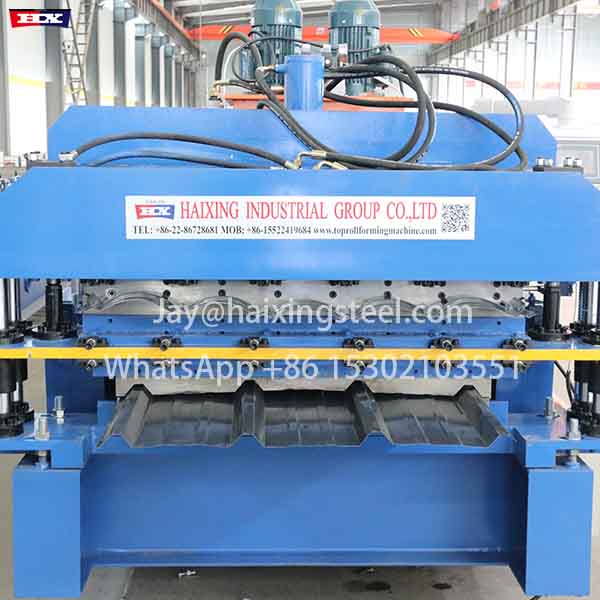

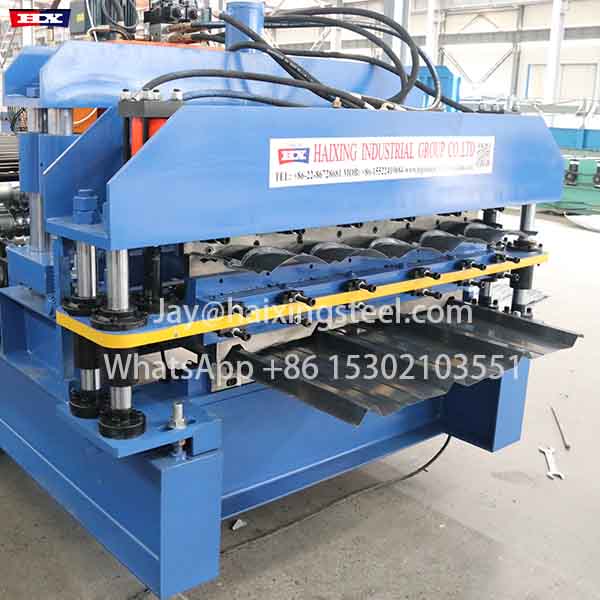

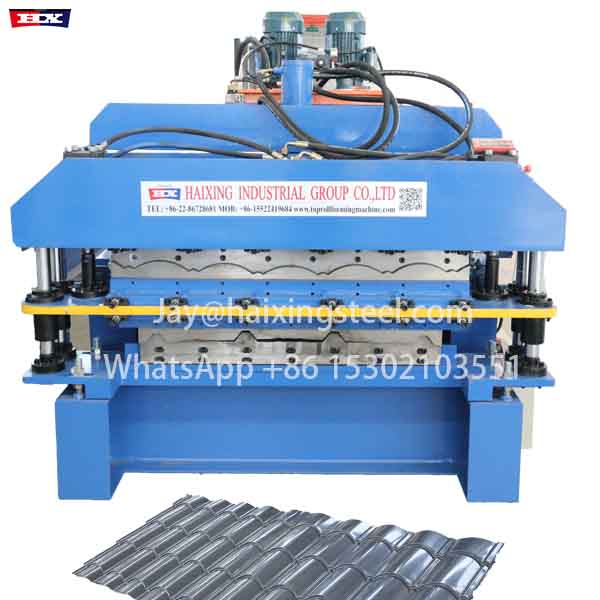

The double-layer glazed tile forming machine is a highly efficient and automated roll forming equipment designed for the production of double-layer glazed tiles. Compared with the single-layer tile machine, this equipment can complete the pressing and forming of double-layer tiles at one time, which not only improves production efficiency, but also ensures the matching and consistency of the upper and lower tiles.
Detail
|
glazed double layer machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|

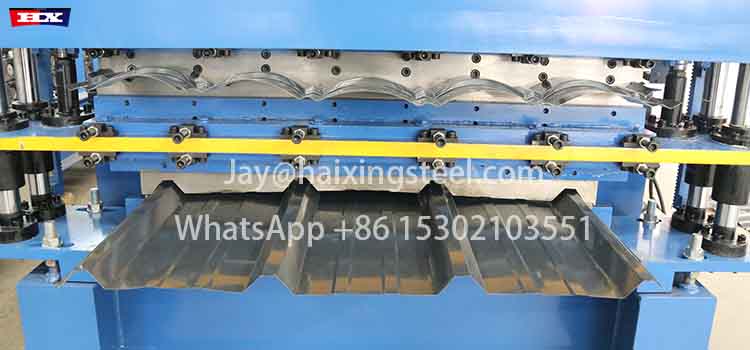

Up Layer :TR5 calaminas 14Rows
Down Layer:TR4 calaminas 16Row |
|
3
|
Dimensions
|
8.20*1.8*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 6800kgs
|
|
11
|
Main structure of the machine
|
400H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 60Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
|
22
|
Operation Language
|
Chinese/English/Spanish or based on customer’s need
|
TIANJIN HAIXING – Your Trusted Partner
Warranty & Support: Enjoy a 2-year warranty and lifetime technical assistance for your equipment.
Fast Delivery: Your order will be shipped within 25 days after we receive your deposit.
Service Assurance: Benefit from 24 months of free servicing, with optional paid maintenance available for the entire lifespan of the machine.
Expert Training & Setup:
If you visit our factory for an inspection, we’ll provide personalized training for your team, including machine installation, operation, and technician guidance.
