Develivery time:25-35 days
Model:HX-galvateja-ternium
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty|
Categories: Glazed tile roll forming machine
Email:jay@hx-machinery.com
WhatsApp+86：15302103551
1200 glazed sheet roll forming machines
1200mm glazed sheet roll forming machine excels with specialized surface protection systems that prevent scratching and damage to coated materials. The machine features precision-balanced rollers, tension control mechanisms, and temperature-compensated design to maintain perfect panel flatness. Advantages include scratch-free production, consistent profile accuracy, automatic length control (±0.5mm), and energy-efficient operation. The non-marking conveyor system and protective film compatibility ensure pristine surface quality. Ideal for premium architectural projects requiring flawless finish.
1200 glazed sheet roll forming machines
Detail
1200 glazed sheet roll forming machines
|
No.
|
1200 glazed sheet roll forming machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows 20Rows
|
|
3
|
Dimensions
|
10*1.75*1.9m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

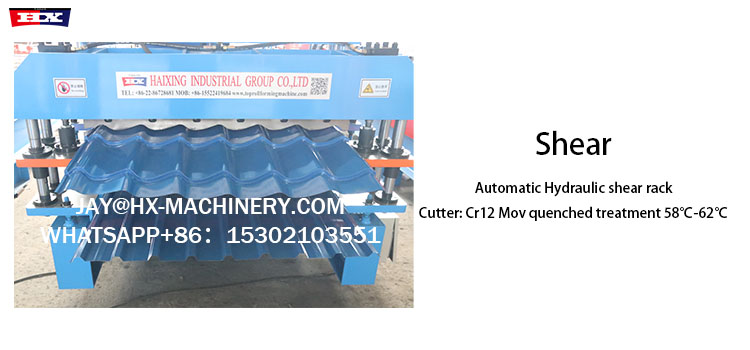

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 5000kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
