Model：HX-1075
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

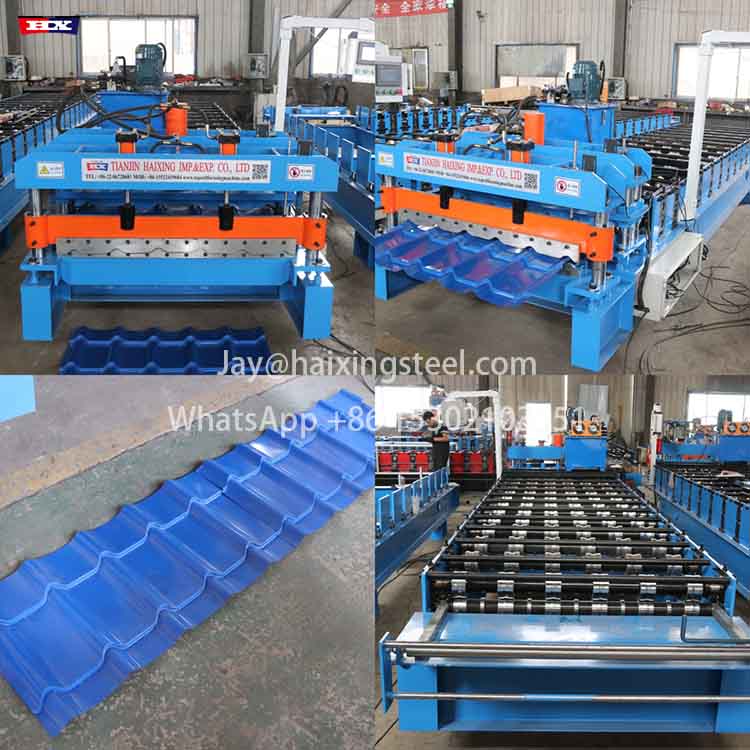

1075-glazed tile machine

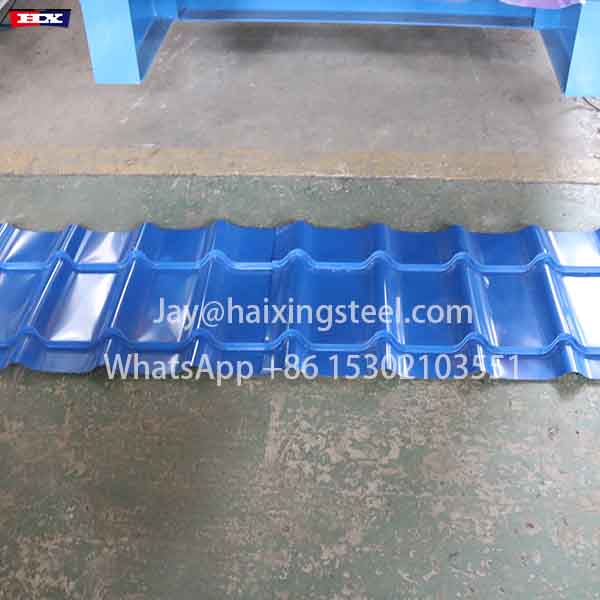

We offer a wide range of models to choose from. The roof panels we produce are suitable for various industrial and civil construction projects, featuring exquisite appearance and an extremely long service life
Detail
|
1075-glazed tile machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

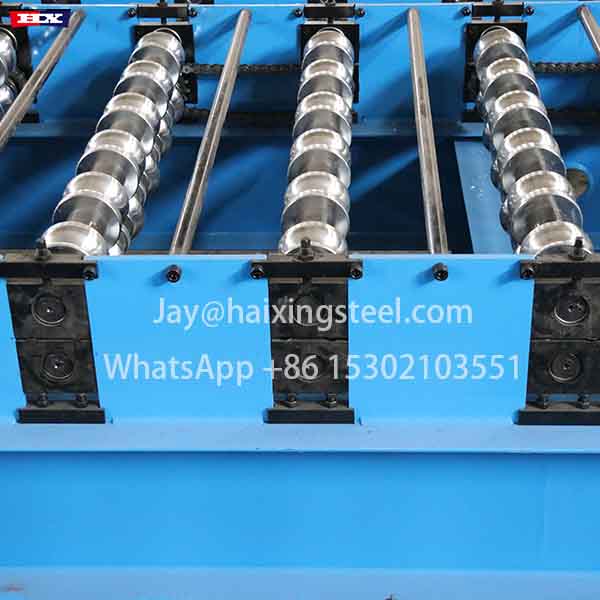

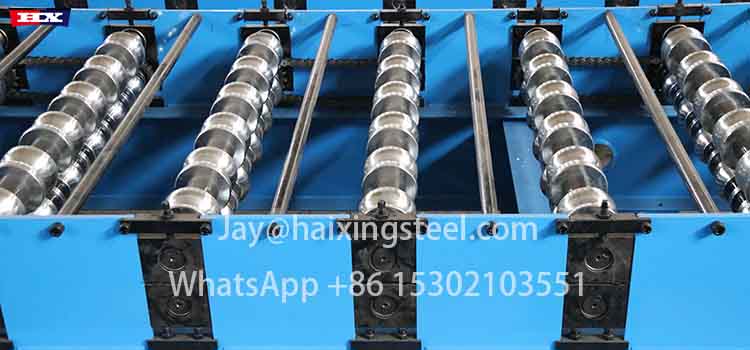

Roller
|
14Rows
|
|
3
|
Dimensions
|
7.5*1.5*1.6m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
3-5m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
About Us – TIANJIN HAIXING
Warranty: Two-year warranty with lifelong technical support for the equipment.
Delivery Time: Within 25 days after receiving your deposit payment.
Service Commitment: 24 months of free service, with paid maintenance available throughout the machine's lifespan.
Installation & Training:
If customers visit our factory for inspection, we provide hands-on installation guidance, machine operation training, and technician/worker instruction.
