Develivery time:25-35 days
Model:GP32/200
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty|
Email:jay@hx-machinery.com
WhatsApp+86：15302103551

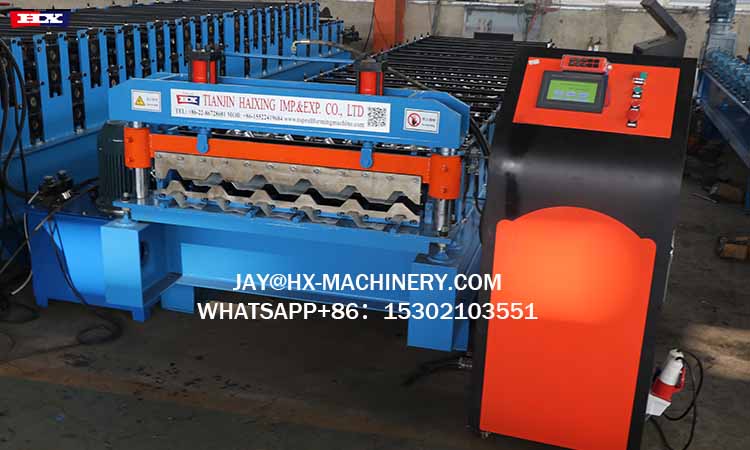

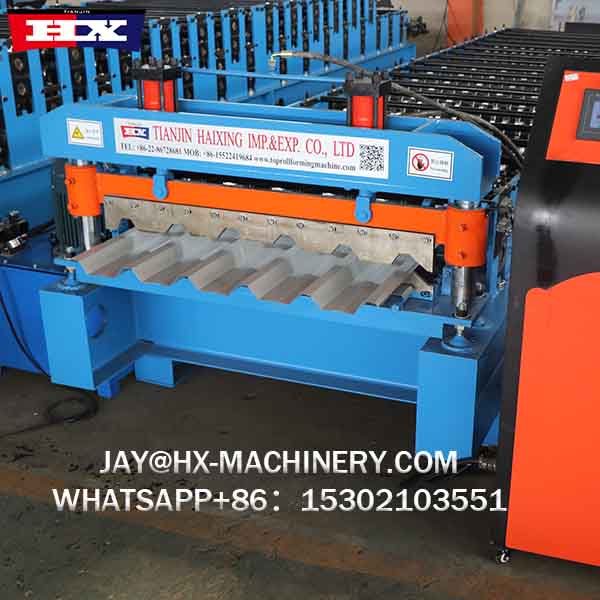

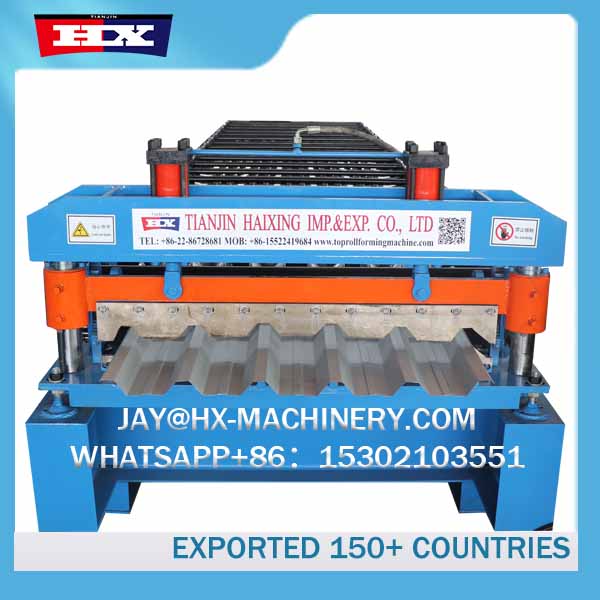

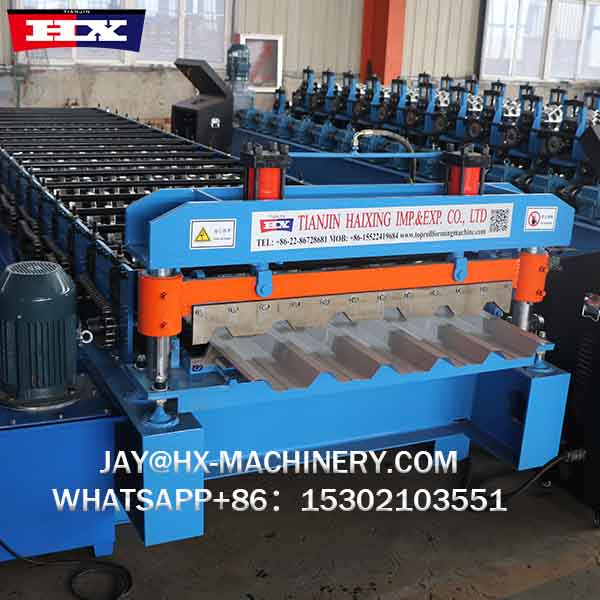

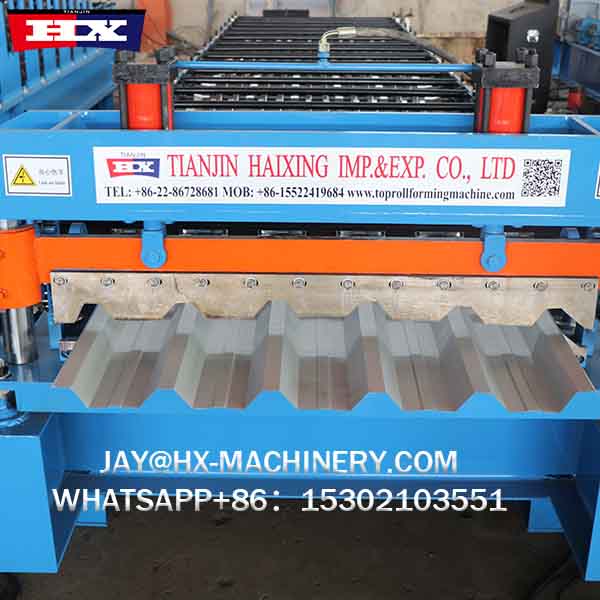

GP-32/200ibr roof sheeting machine for sale
Our GP32 IBR roof sheeting machine excels in producing classic IBR profiles with enhanced efficiency. The machine features progressive forming technology that maintains material integrity while creating sharp, defined ribs. Significant benefits include: production speeds up to 42 meters/minute, servo-controlled cutting with ±0.4mm precision, quick-release mechanisms for effortless maintenance, and automatic fault detection systems. The vibration-dampening base ensures smooth operation, while the modular design allows for easy component replacement. Ideal for contractors and manufacturers seeking reliable IBR panel production with minimal operational costs.
GP-32/200ibr roof sheeting machine for sale
Detail
GP32ibr roof sheeting machine for sale
|
No.
|
GP32ibr roof sheeting machine for sale
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

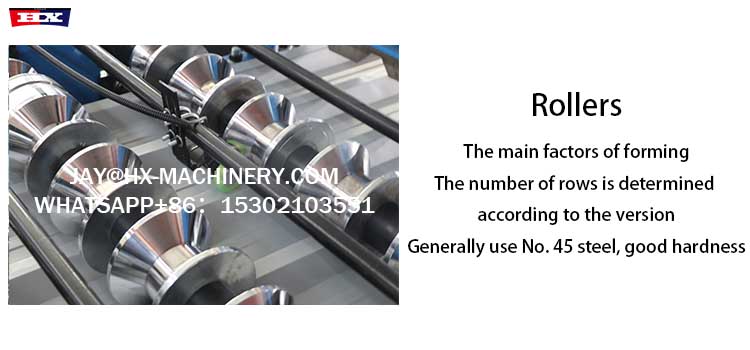

Roller
|
19Rows
|
|
3
|
Dimensions
|
8.55*1.65*1.9m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4900kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|

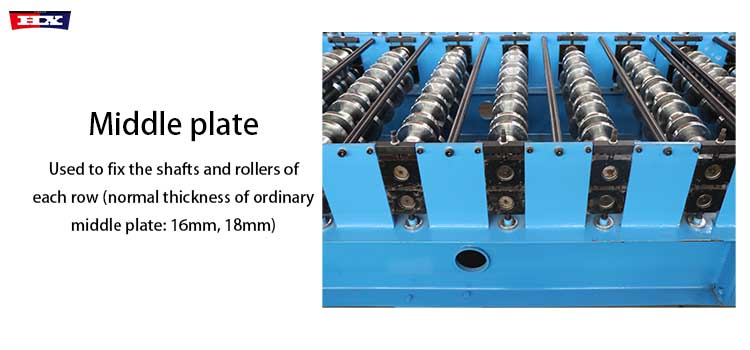

Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
