Product Attributes :
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email:jay@hx-machinery.com
WhatsApp+86：15302103551

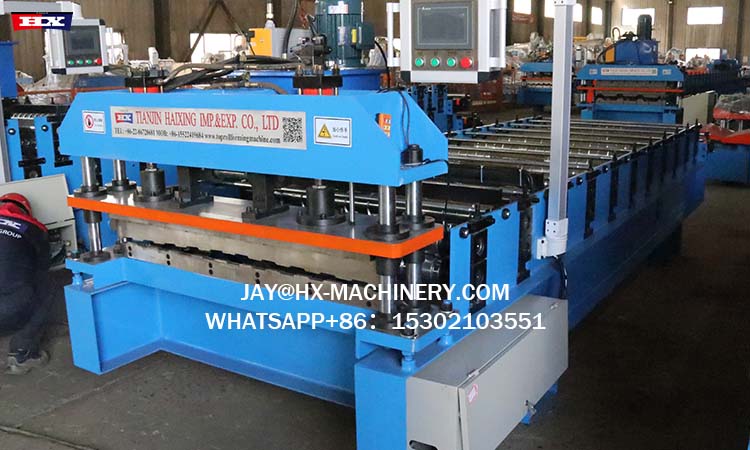

1190 iron roof sheet making machine

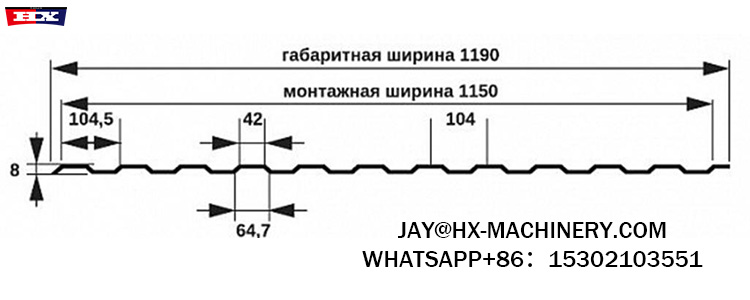

Our 1190 iron roof sheet machine features reinforced forming stations capable of processing hard-grade iron materials. The machine's enhanced power system maintains consistent speed under heavy loads, ensuring uniform profile depth across the 1190mm width. Key advantages include: production capacity of 30 meters/minute, reinforced cutting blades for extended service life, automatic material thickness adaptation, and heavy-duty gear transmission. The thermal-resistant components prevent deformation during continuous operation, while the centralized control panel enables seamless monitoring. Ideal for industrial roofing projects requiring extra-wide, durable iron sheets.
1190 iron roof sheet making machine
Detail
11190 iron roof sheet making machine
|
No.
|
1190 iron roof sheet making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
11Rows
|
|
3
|
Dimensions
|
5*1.6*1.65m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4300kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
