Model：HX-double glazed
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

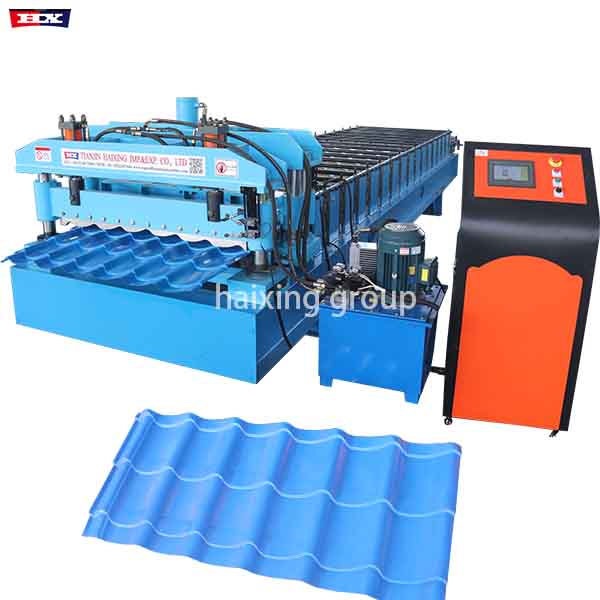

Glazed iron sheet making machine price

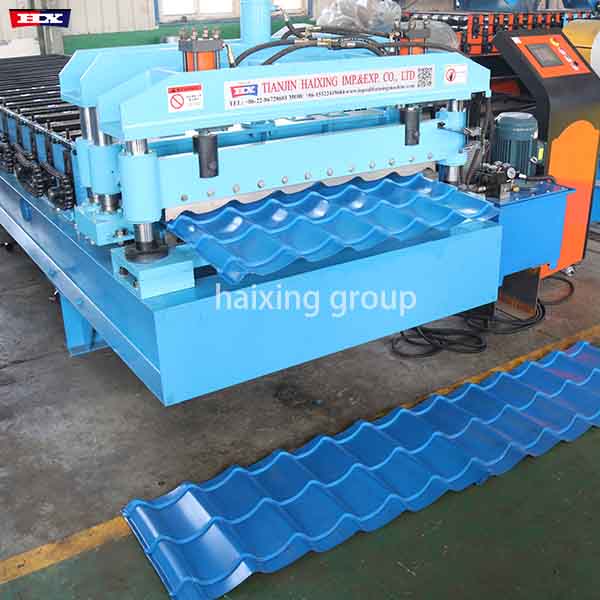

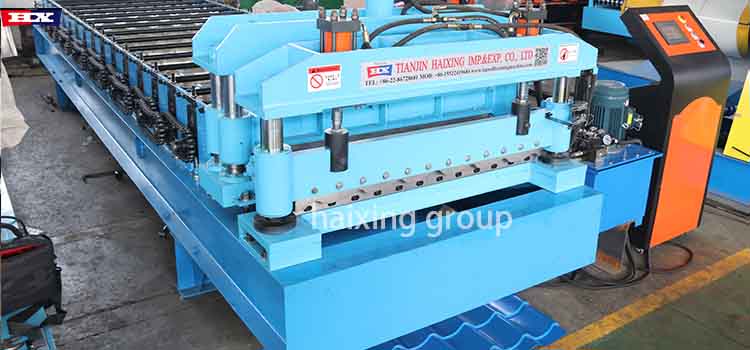

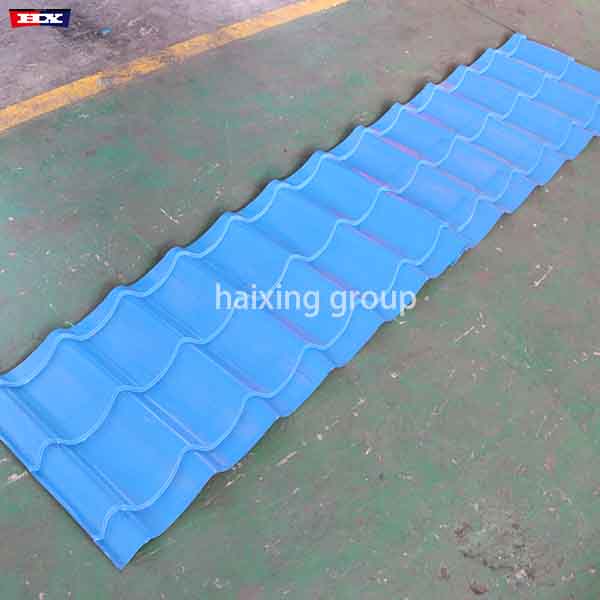

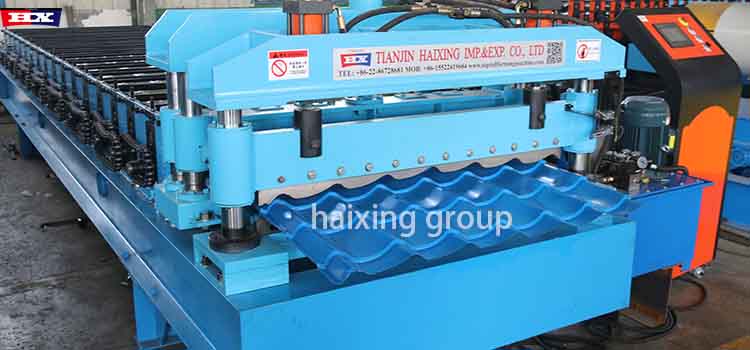

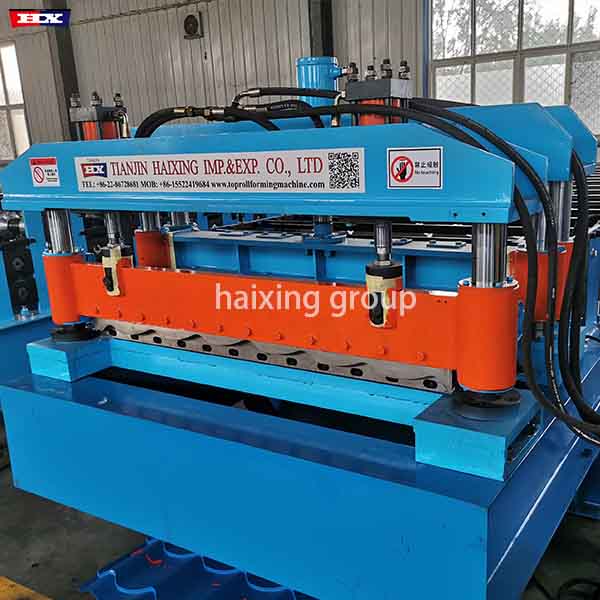

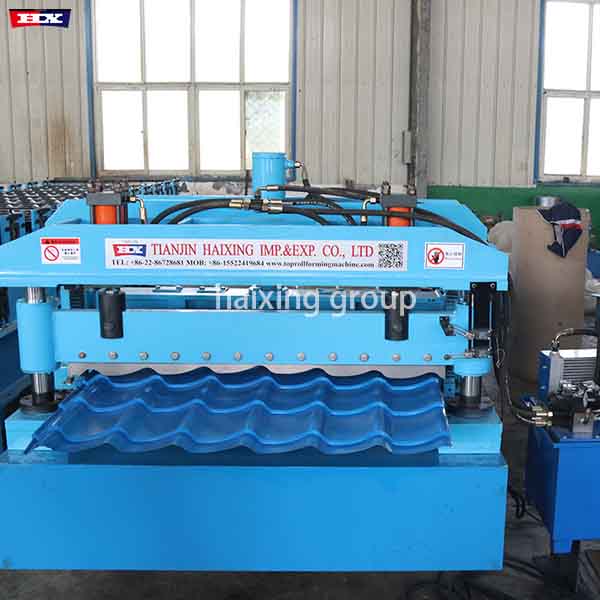

The glazed roller-forming machine is a high-end device specialized in producing glazed tiles for antique buildings. Using a precision roller-forming process, it can quickly form a variety of traditional glazed tiles. Equipped with an intelligent temperature control system, it ensures a uniform and glossy glaze surface, with a forming accuracy of ±0.2mm. The resulting glazed tiles combine classical aesthetics with modern performance, offering strong frost and weather resistance, making them suitable for projects such as temples, ancient building restoration, and cultural tourism projects. It supports a variety of custom glaze colors and can produce up to 3,000 tiles per day, making it an ideal choice for inheriting traditional craftsmanship and creating high-quality architecture.
Detail
|
Glazed iron sheet making machine price
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

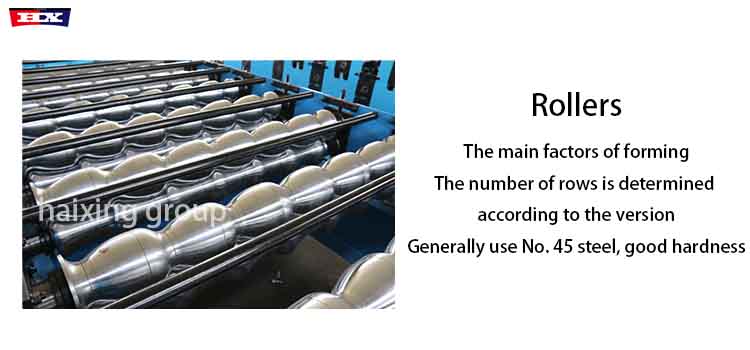

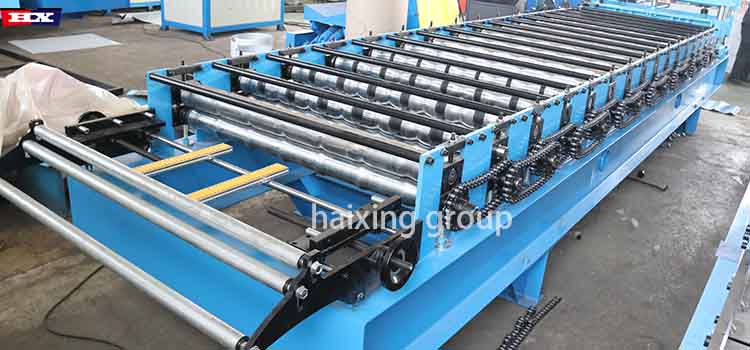

Roller
|
15Rows
|
|
3
|
Dimensions
|
7.8*1.5*1.6m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
3-5m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 5200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
TIANJIN HAIXING – Your Trusted Partner
Warranty & Support: Enjoy a 2-year warranty and lifetime technical assistance for your equipment.
Fast Delivery: Your order will be shipped within 25 days after we receive your deposit.
Service Assurance: Benefit from 24 months of free servicing, with optional paid maintenance available for the entire lifespan of the machine.
Expert Training & Setup:
If you visit our factory for an inspection, we’ll provide personalized training for your team, including machine installation, operation, and technician guidance.
