Develivery time:25-35 working days
Model:HX-C Steel Stud
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty|
WhatsApp: 0086153021035513
E-mail: Jay@haixingsteel.com

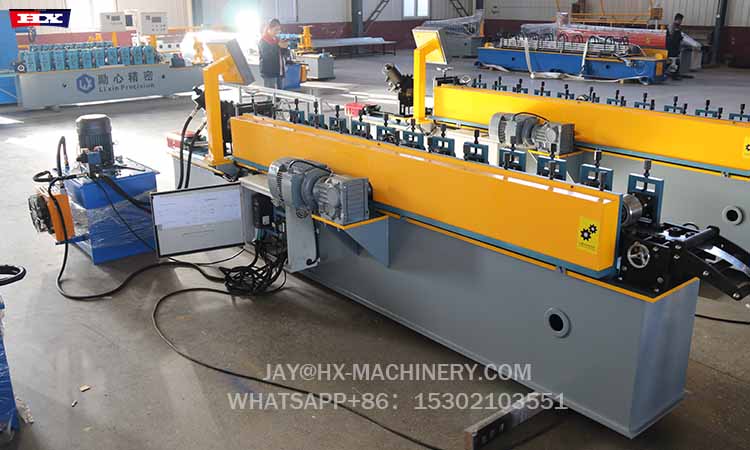

C light steel keel machine
C light steel keel machine offers quick, high-precision production with minimal material waste. Its automated process ensures consistent quality and reduces labor costs. Ideal for high-volume projects, it enhances efficiency and is suitable for both residential and commercial construction.
C light steel keel machine
Detail
C light steel keel machine
|
No.
|
light steel keel machine=
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

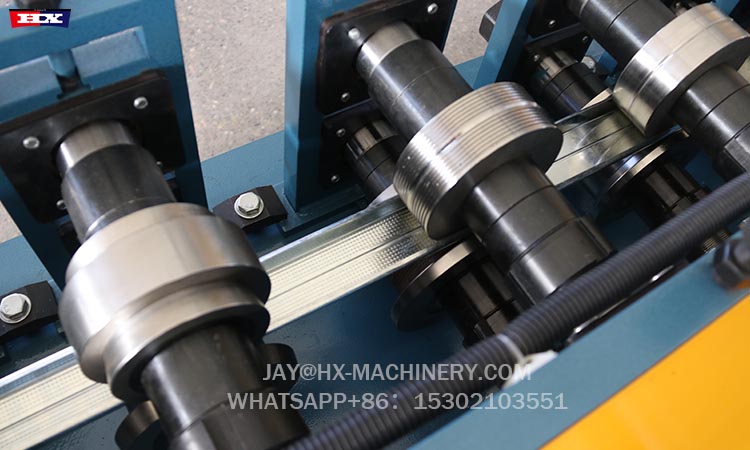

Roller
|
12Rows plus leveling device
|
|
3
|
Dimensions
|
5.4*1*1.5m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
30-35m/min
|
|
8
|

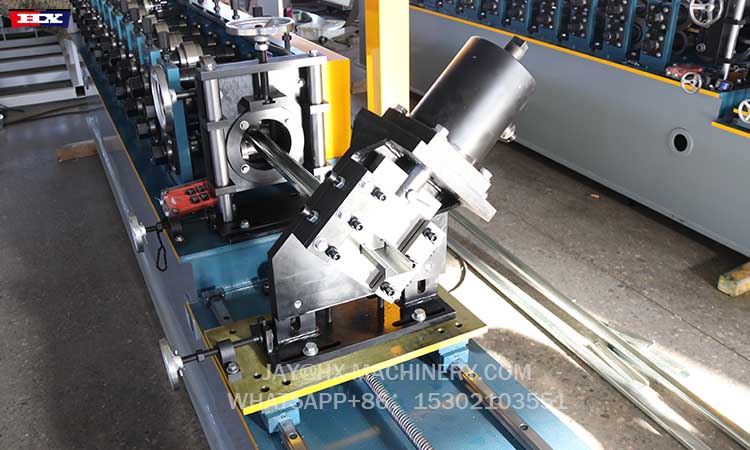

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ50mm
|
|
10
|
Weight
|
About 2600kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Square steel frame
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
