Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use
metal roof sheet making machine

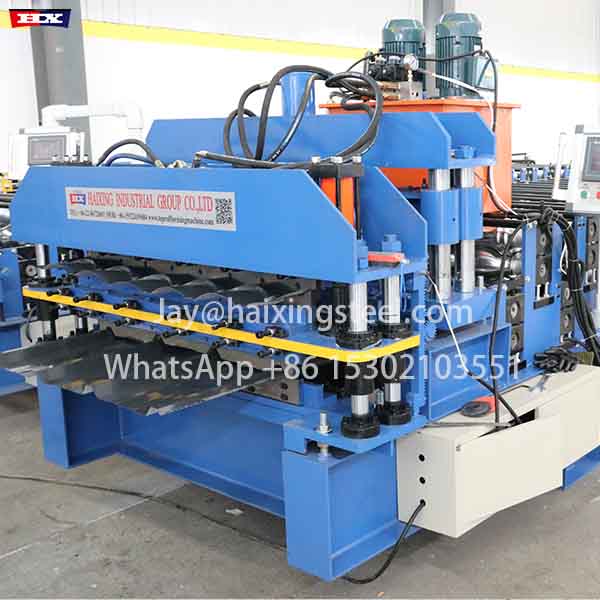

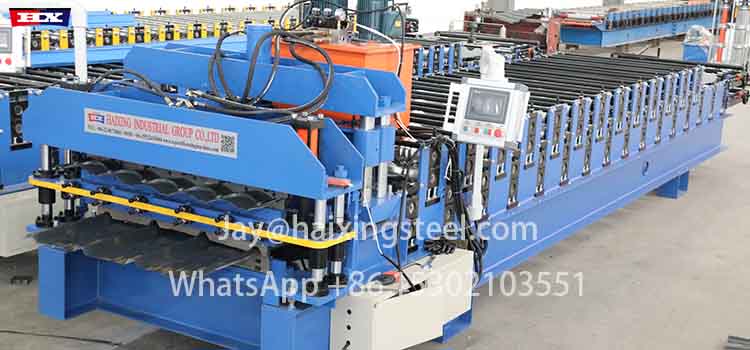

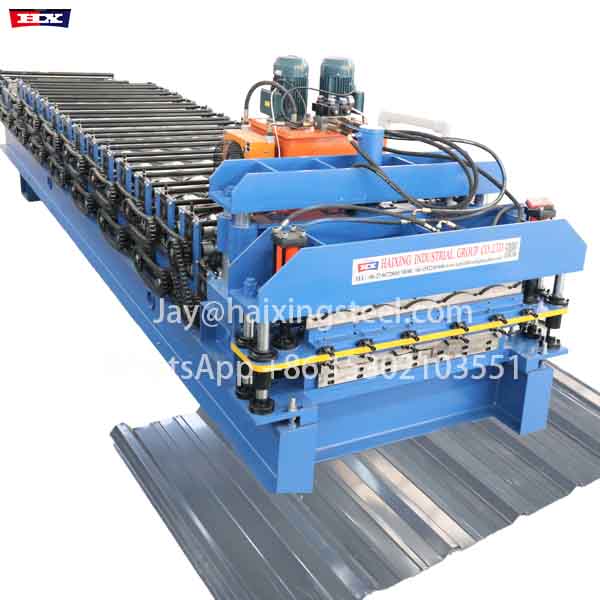

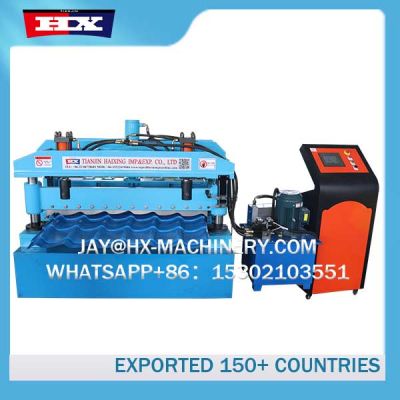

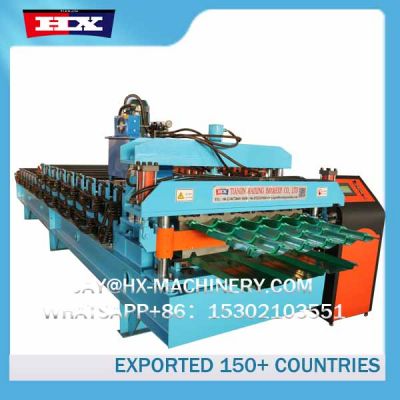

This double-layer glazed tile forming machine is a fully automatic roller pressing equipment specially designed for efficient production. Compared with traditional single-layer tile machines, it can precisely press double-layer tiles at one time, not only significantly increasing production capacity, but also ensuring the perfect matching of product dimensions and the high consistency of quality
Detail
|
double-glazed tile making machine
|
||
|
1
|
Suitable to process
|

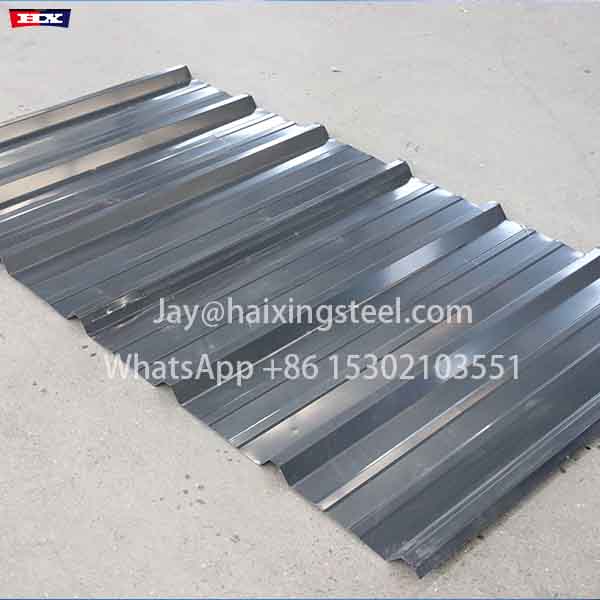

Color alu-zinc steel coil
|
|
2
|

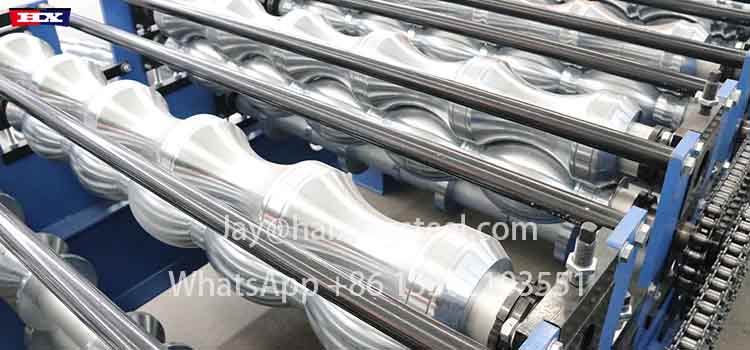

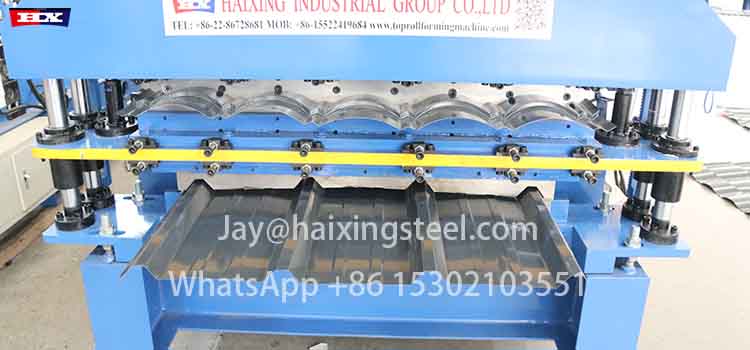

Roller
|
Up Layer :TR5 calaminas 15Rows
Down Layer:TR4 calaminas 18Row |
|
3
|
Dimensions
|
9.0*1.8*2.0m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|

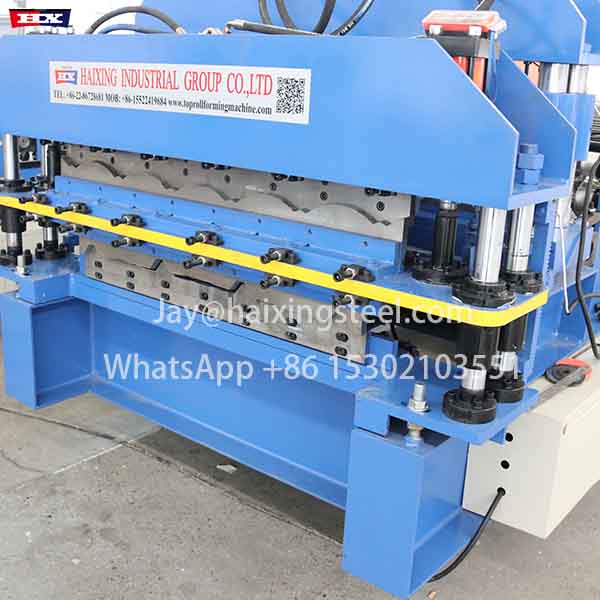

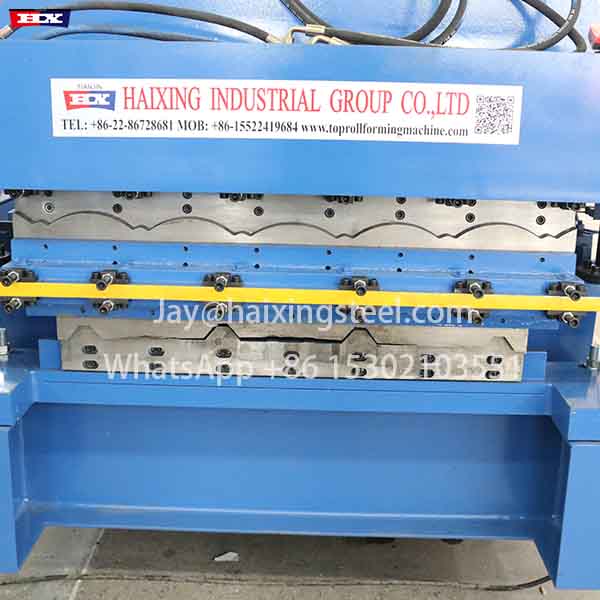

Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 6800kgs
|
|
11
|
Main structure of the machine
|
400H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 60Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
|
22
|
Operation Language
|
Chinese/English/Spanish or based on customer’s need
|
TIANJIN HAIXING - Reliable Industrial Solutions
Quality Assurance: Comprehensive 2-year warranty with lifetime technical support
Efficient Delivery: Guaranteed shipment within 25 days after deposit confirmation
Service Commitment: 24-month free maintenance with lifetime after-sales service options
Professional Support: Factory visits include hands-on installation training and operator instruction
