Develivery time:25-35 days
Model:HX-HC 35 TP25
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty|
Email:jay@hx-machinery.com
WhatsApp+86：15302103551
HC 20B-110roll forming roofing machine
Our HC 35 roll forming machine excels with its proprietary forming sequence that ensures perfect crown formation and edge definition. The machine incorporates intelligent tension control for wrinkle-free production and consistent profile geometry. Notable advantages include: production capacity of 45 meters/minute, laser-calibrated cutting system with ±0.3mm accuracy, automatic fault diagnosis, and energy recovery technology. The thermally stabilized deck plates maintain alignment precision, while the modular roller design allows quick maintenance and reduces downtime by 40%. Ideal for continuous high-quality output.

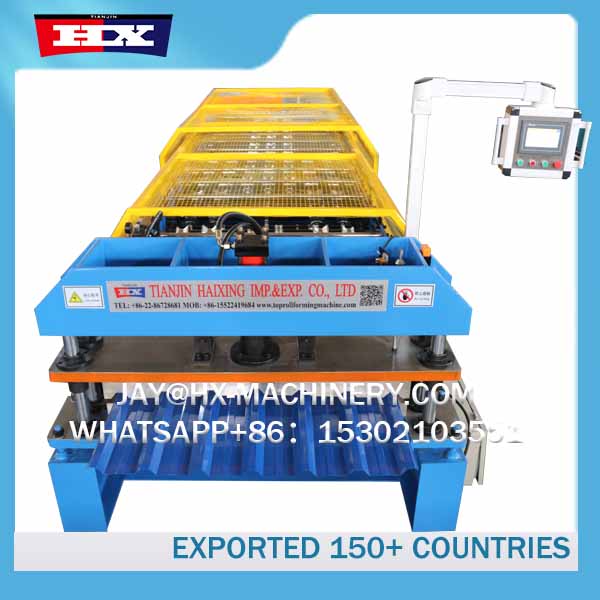

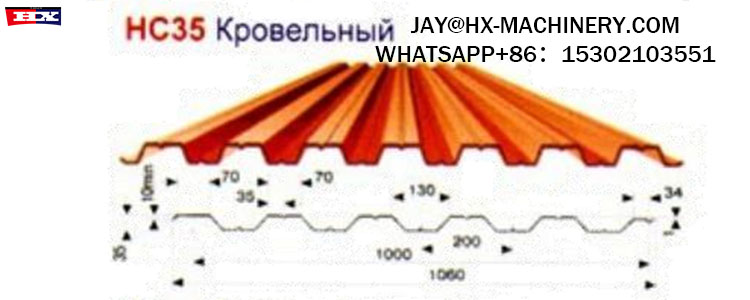

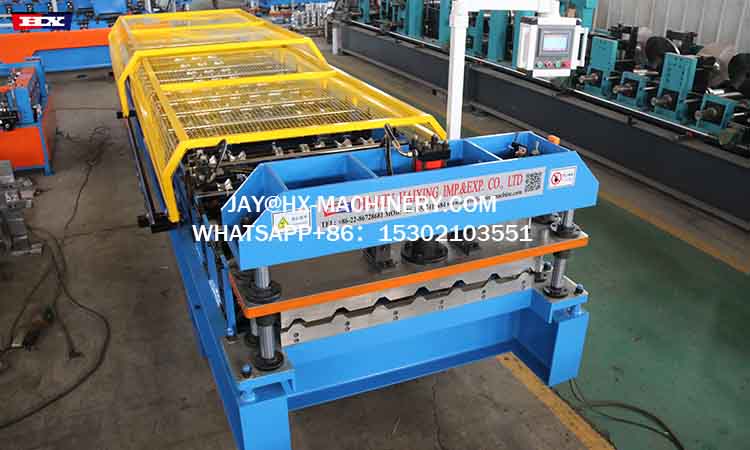

HC 35 TP25 metal roofing roll forming machine
Detail
HC 35 TP25 metal roofing roll forming machine
HC 35 TP25 metal roofing roll forming machine
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
15Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4300kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
