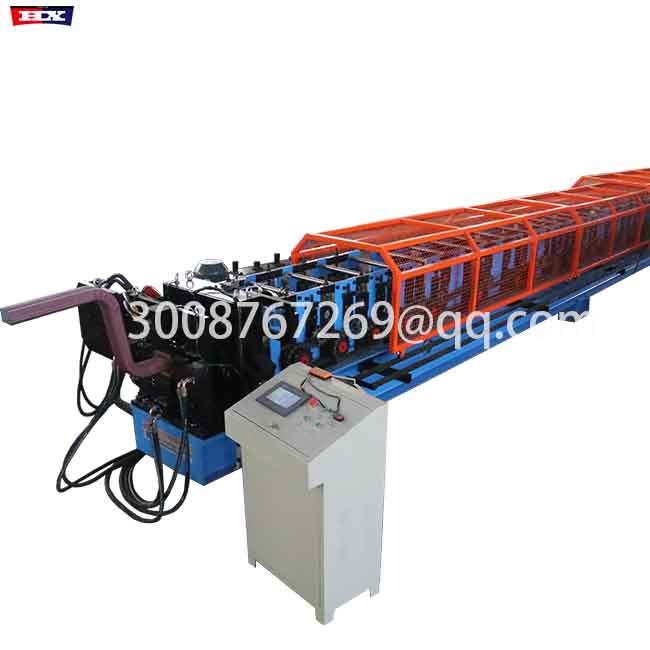

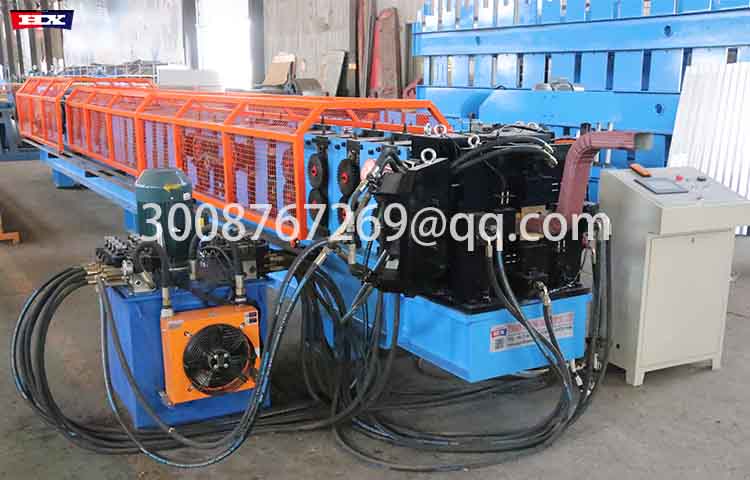

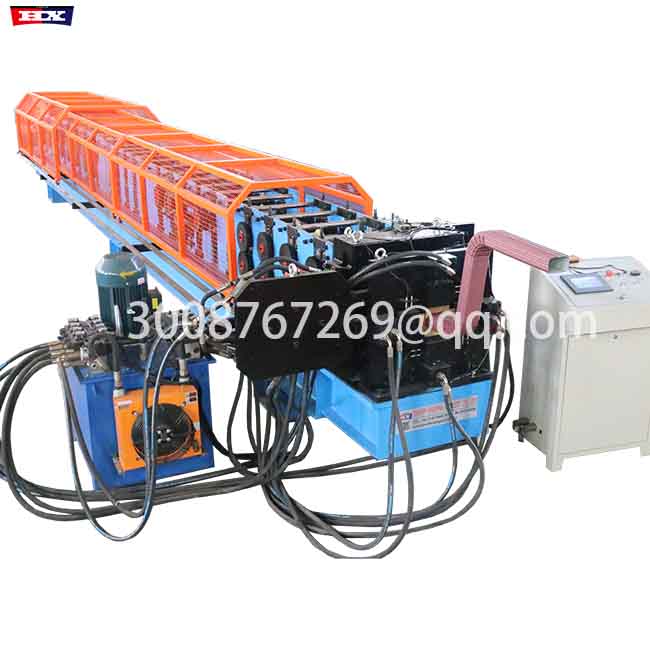

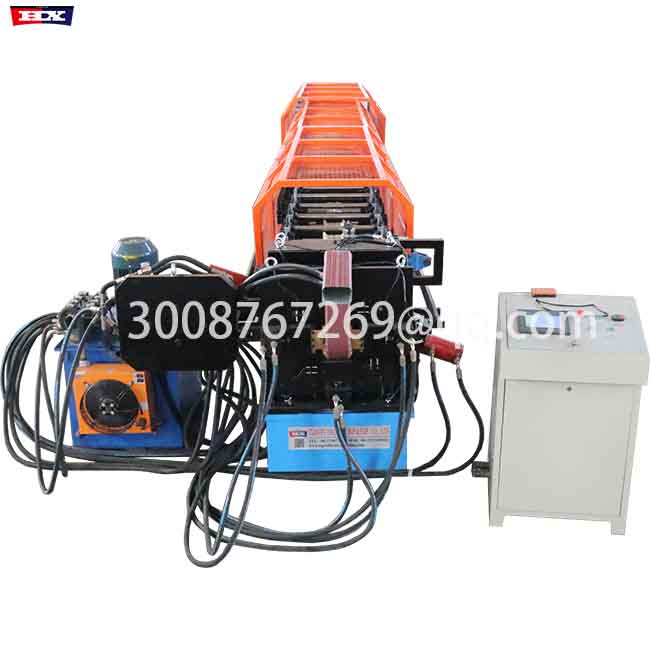

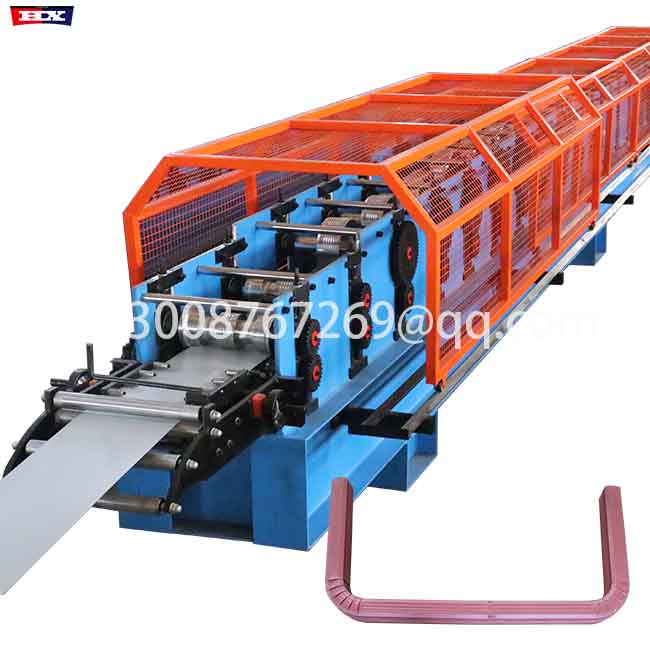

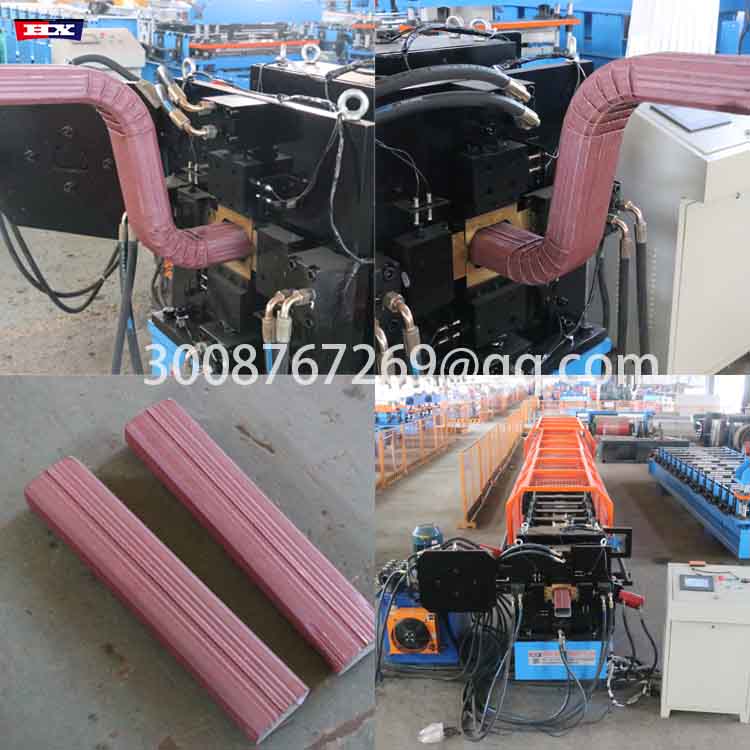

Downpipe Roll Forming Machine
Produces vertical drainage pipes for roof rainwater. CE & EU certified, multi-patent technology. Leak-proof design, works with various metals. For residential/commercial drainage systems.
| ming machine |
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
| Working Speed |
8-10m/min |

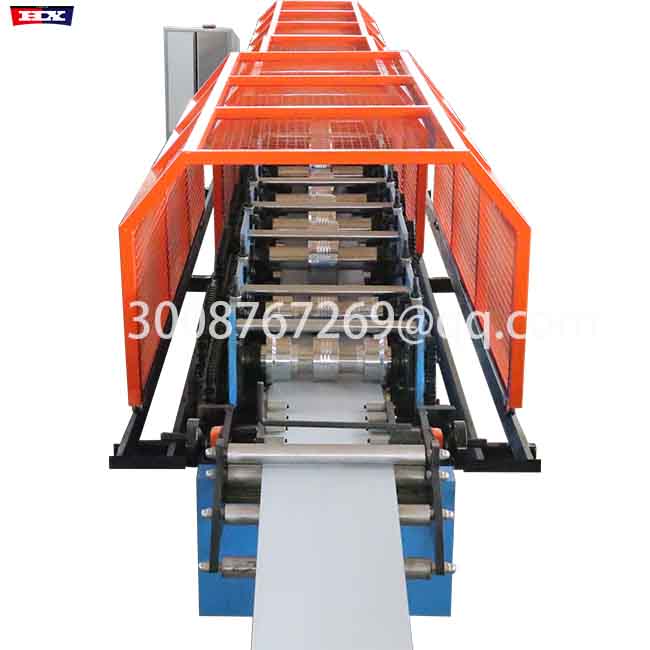

| Roller stations |
22 stations |
| Rolling shaft |
Shaft diameter: 70 mm,Tempering treatment |
| Bearing |
Chinese famous brand Harbin |
| Machine frame |
20mm thick steel wall plate |
| Transmission |
By chains |
| Motor power |
Main motor power |
7.5Kw,Siemens |
| Hydraulic Station Power |
7.5Kw,Lichao with small fan |
| Hydraulic Station Pressure |
12Mpa |
| PLC Control System |
Frequency brand |
Delta (original) |
| PLC brand |
Delta (original) |
| Screen type |
Touch screen & buttons
Screen language:English/Chinese |
| Encoder |
Omron |
| Low pressure electrical part brand |
Schneider |
| Function |
Cutting length and quantity control, speed adjustment control, dimension adjust. |
| Cutting curving system |
Material of the cutting |
Cr 12mov with quenched treatmentlt can decide cut panel dimension acoording to the hydraulic drive and PLC computer control system |
| Cutting length |
Adjustable |
| Cutting accuracy |
±2mm |
| Others |
Raw material |
PPGI,PPGL,GI,GL steel coil |
| Material thickness |
0.4-0.6mm |
| Decoiler |
Work type |
Passive type |
| Loading capacity |
3 Tons |
| Coil inner diameter |
470-530 mm (adjustable) |
| Quantity |
1 set |
|
