Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use
glazed tile making machine

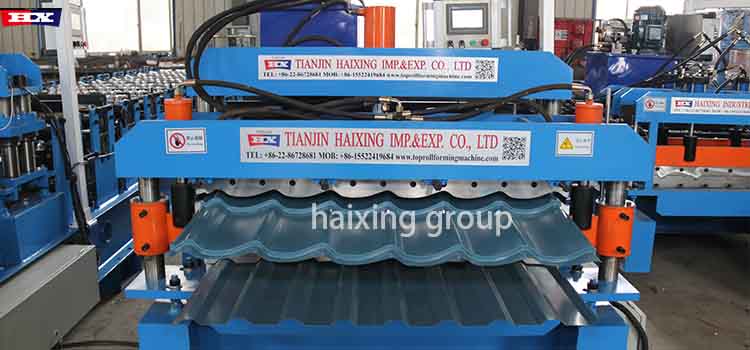

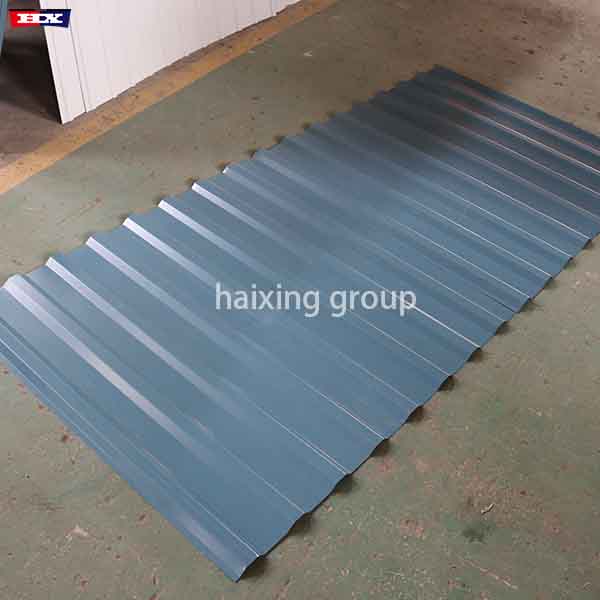

Innovative double-layer panel synchronous forming equipment, servo control ensures 100% matching of corrugations, with wind pressure resistance up to 12kPa. We produce composite roof panels with hollow layers, which have both insulation and reinforcement functions. They are suitable for large-span buildings such as factories and stadiums, and the processing thickness ranges from 0.3 -0.8mm
Detail
|
Double roll forming aluminum
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
Up Layer :TR5 calaminas 13Rows
Down Layer:TR4 calaminas 14Row |
|
3
|
Dimensions
|
7*1.6*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 5000kgs
|
|
11
|
Main structure of the machine
|
400H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 60Hz 3phases or as customer’s need
|
|
16
|

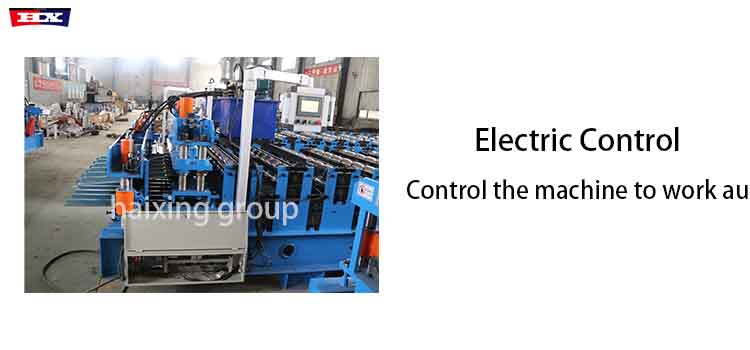

Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
|
22
|
Operation Language
|
Chinese/English/Spanish or based on customer’s need
|
Double-layer plate rolling machine price after-sales service warranty: two years, lifetime technical support for the equipment.
2. Delivery time: delivery within 25 days after receiving the deposit
3. Warranty period: 24 months free service/lifetime paid service for the whole machine
4. Installation and training
If the buyer comes to our factory to inspect the machine, we will teach you how to install and use the machine, and train your customers
Workers/technicians face to face
