Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

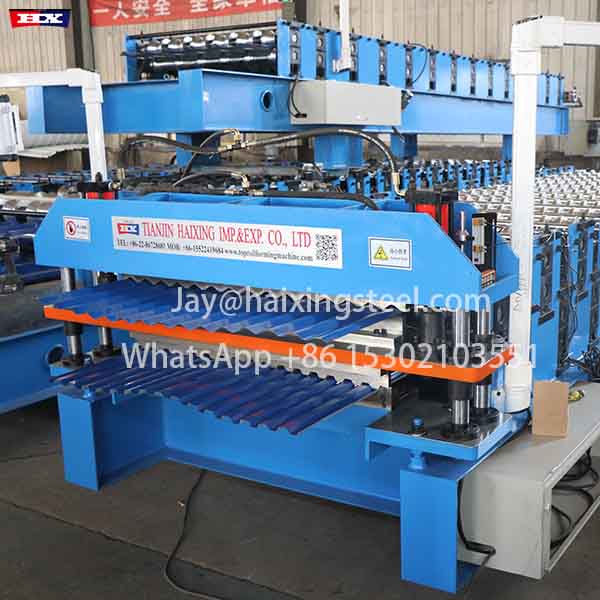

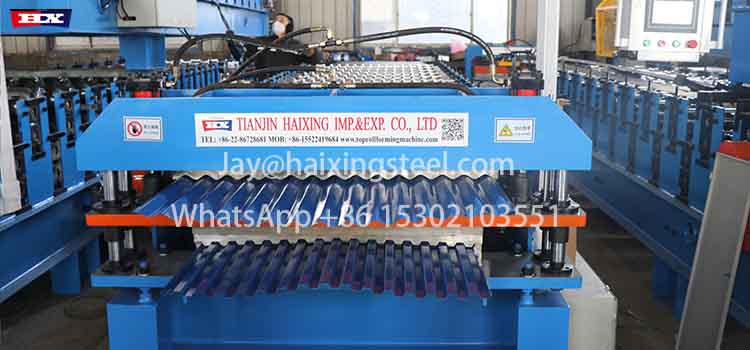

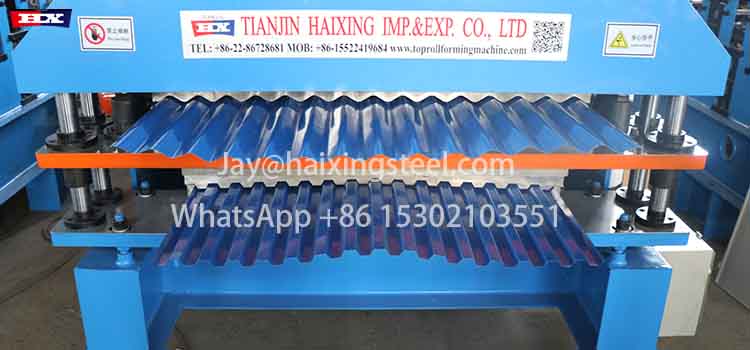

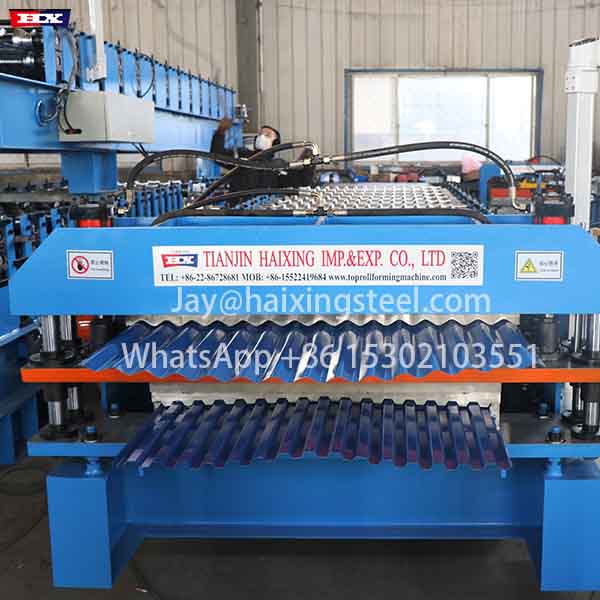

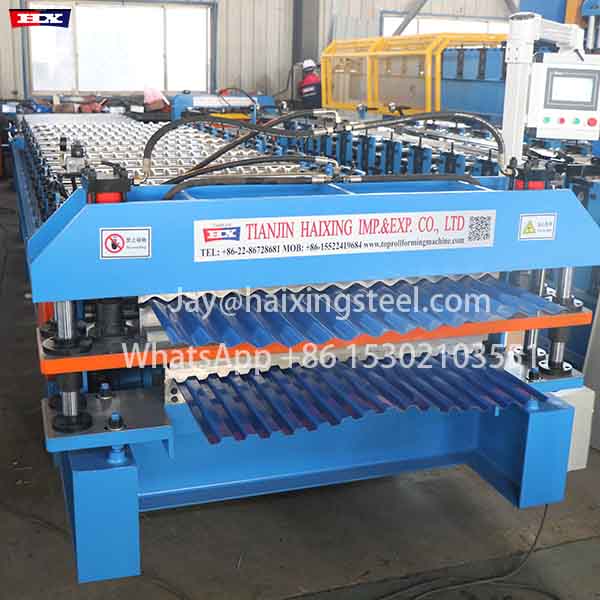

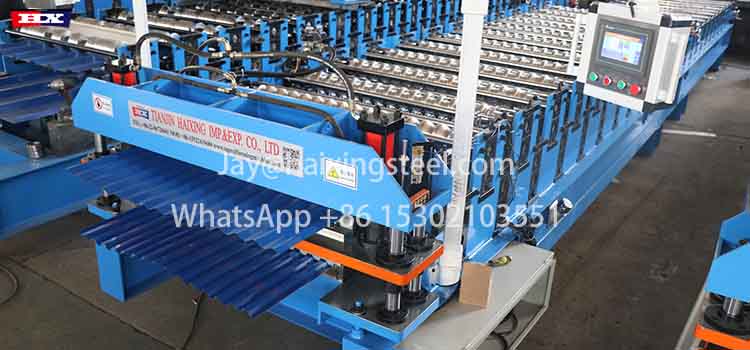

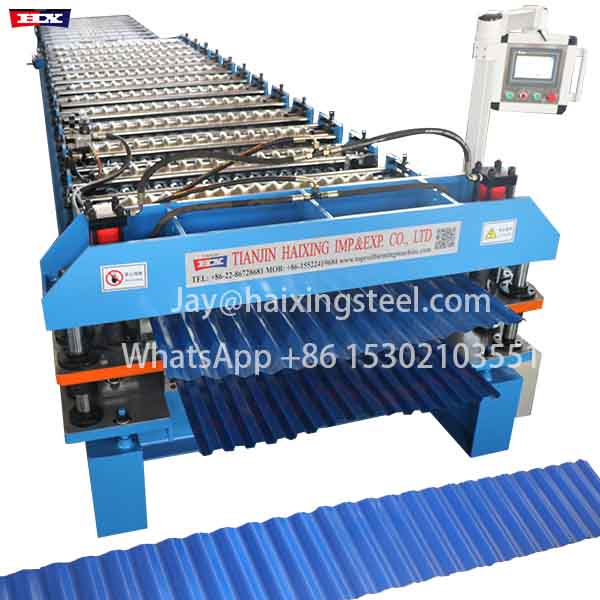

Double roll forming machine roof
The double-layer roll forming machine One machine, dual production capacity! The double-layer roller forming machine can process two layers of materials simultaneously, significantly reducing production time and costs. The modular design supports rapid mold changing, easily meeting the demands of different products and facilitating flexible production for enterprises
Detail
|
double roll forming machine roof
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

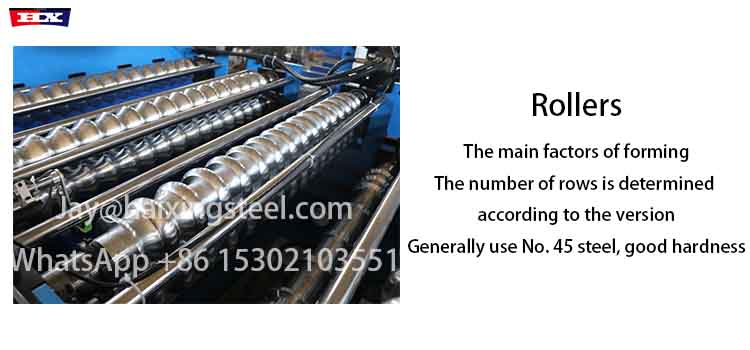

Roller
|
AG Panel : 15 Rows
R panel/Pbr Panel :18Rows
|
|
3
|
Dimensions
|
8.9*1.8*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 70000kg
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 50Hz 1phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
PConcise Bullet Point Version
Our Promise:
✓ 2-Year Full Warranty + Lifetime Support
✓ 25-Day Fast Delivery Guarantee
✓ 24/24 Free Maintenance + Lifetime Service
✓ On-Site Installation & Operation Training
