Develivery time:25-35 days
Model:GP30/240
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty|
Email:jay@hx-machinery.com
WhatsApp+86：15302103551

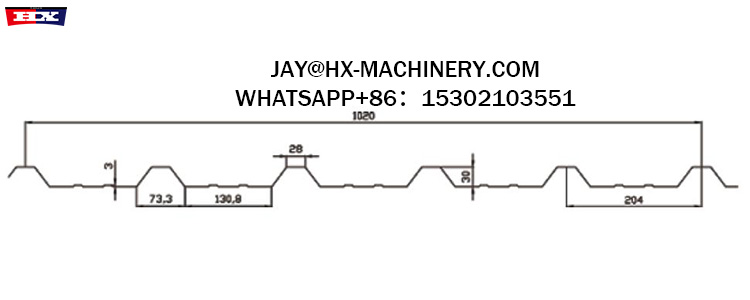

GP-30/204 roof making machines

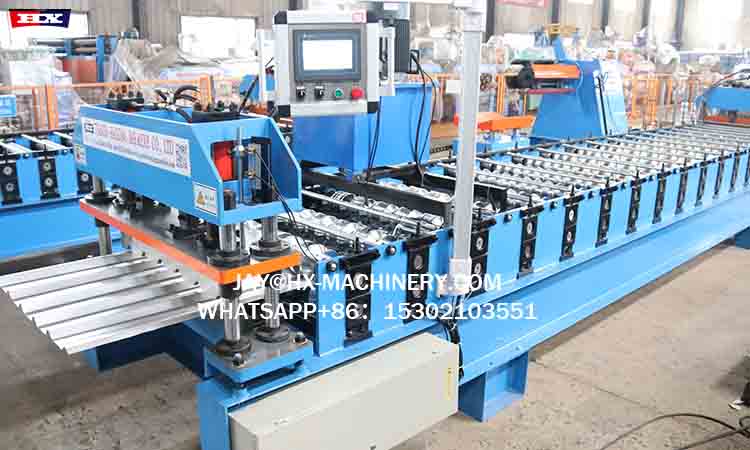

The GP-30 roofing machine achieves superior performance through optimized roller forming technology. Computer-balanced forming rollers ensure smooth material flow and consistent profiles. Advantages include a production speed of 38 m/min, ±1 mm precision cutting, a quick adjustment mechanism, and low noise levels of 78 decibels. A vibration-resistant reinforced frame ensures stable high-speed production, while an energy-efficient motor and automatic lubrication system reduce operating costs and extend equipment life. It is ideally suited for medium- to large-scale roofing production needs.
GP-30/204 roof making machines
Detail
GP-30/204 roof making machines
|
No.
|
GP-30/204 roof making machines
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

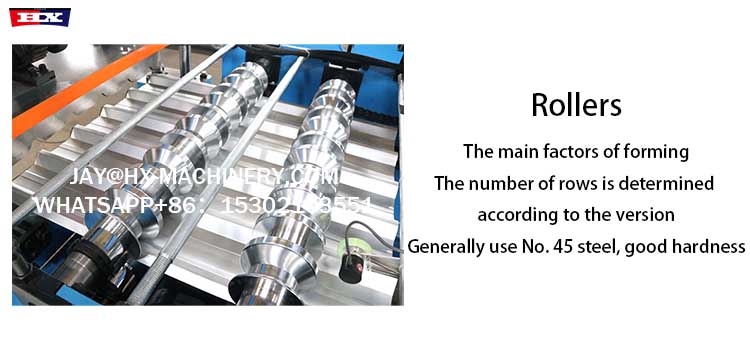

Roller
|
18Rows
|
|
3
|
Dimensions
|
8*1.65*1.6m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

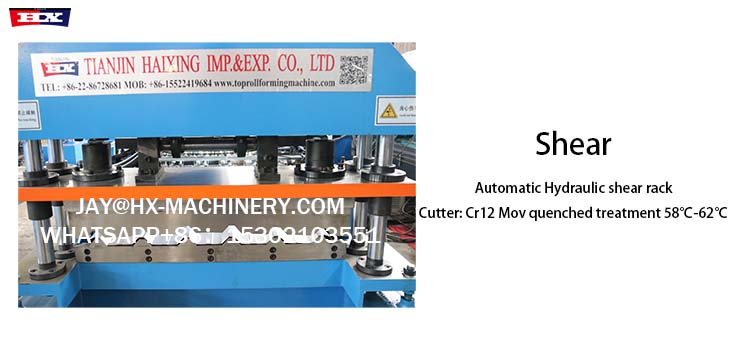

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4800kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
