Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

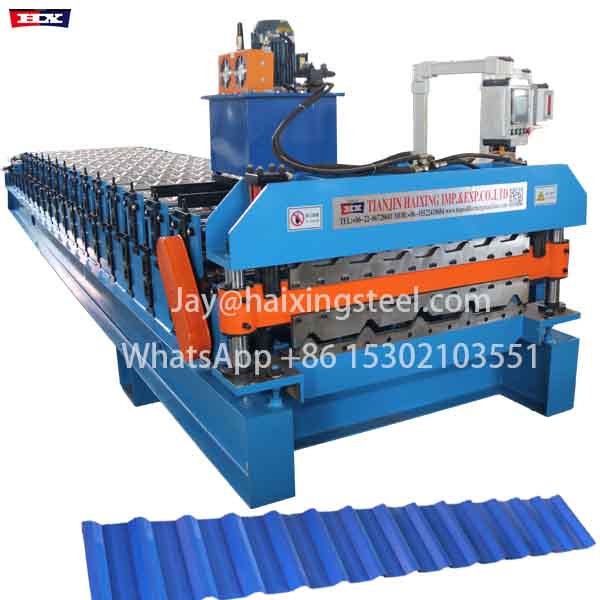

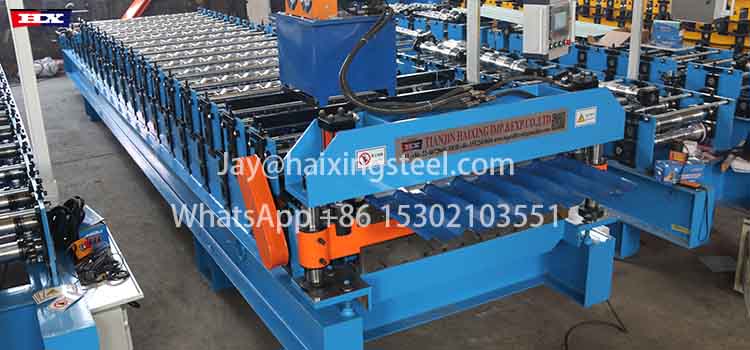

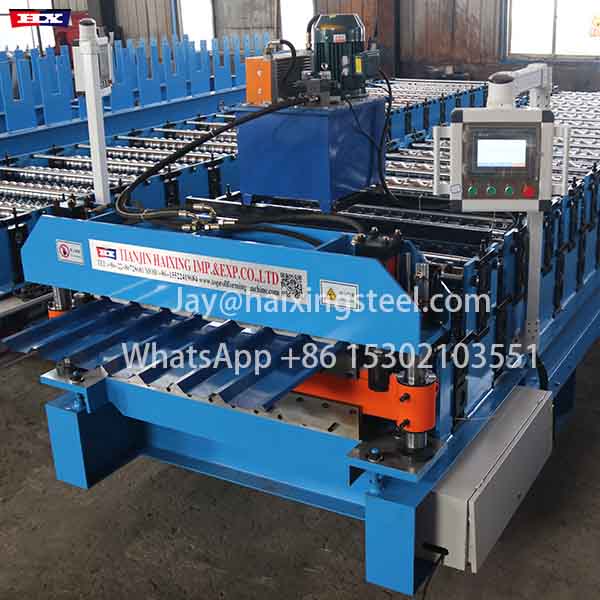

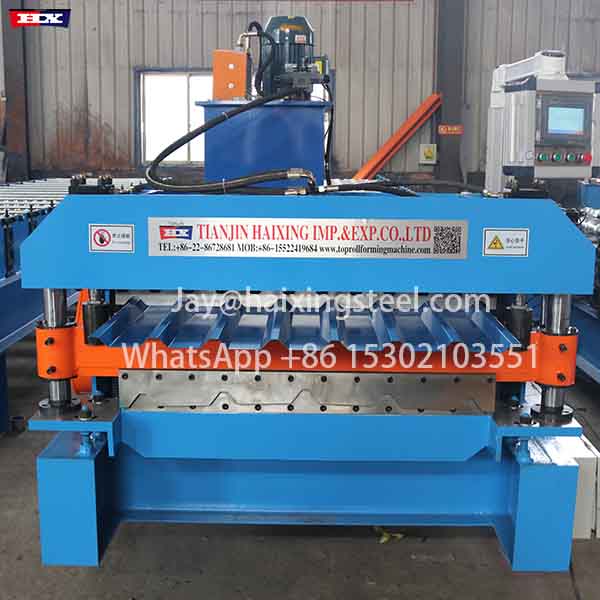

Double roof sheet making machine second hand
The double-layer roll forming machine adopts advanced roll forming technology, with double-layer panels formed synchronously, significantly enhancing production efficiency. The precise control system ensures that every detail is accurate and error-free, and is suitable for processing various materials such as metal and plastic. It is an ideal choice for modern production lines
Detail
|
Double roof sheet making machine second hand
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

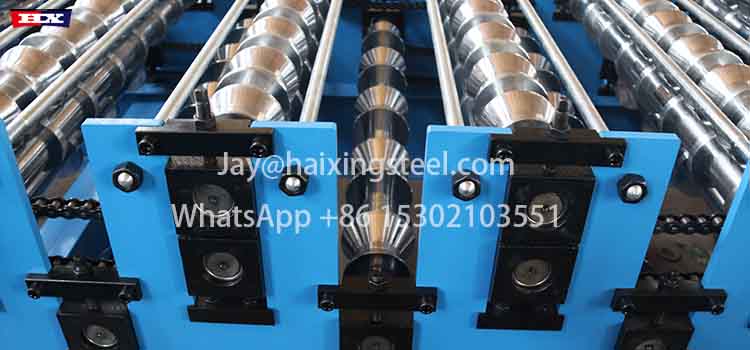

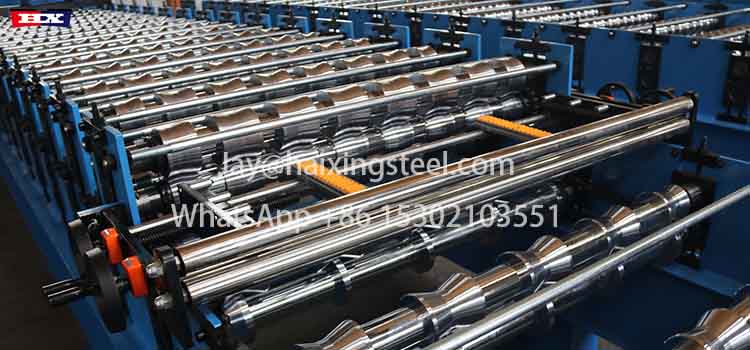

Roller
|
AG Panel : 15 Rows
R panel/Pbr Panel :18Rows
|
|
3
|
Dimensions
|
8.9*1.8*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

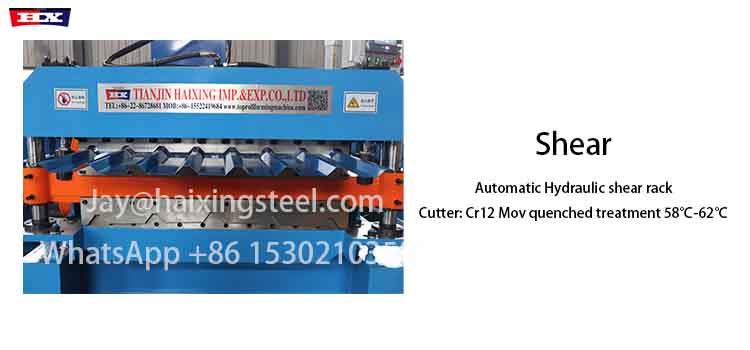

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 70000kg
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 50Hz 1phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
About us-TIANJIN HAIXING
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face
