Product Attributes :
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email:jay@hx-machinery.com
WhatsApp+86：15302103551

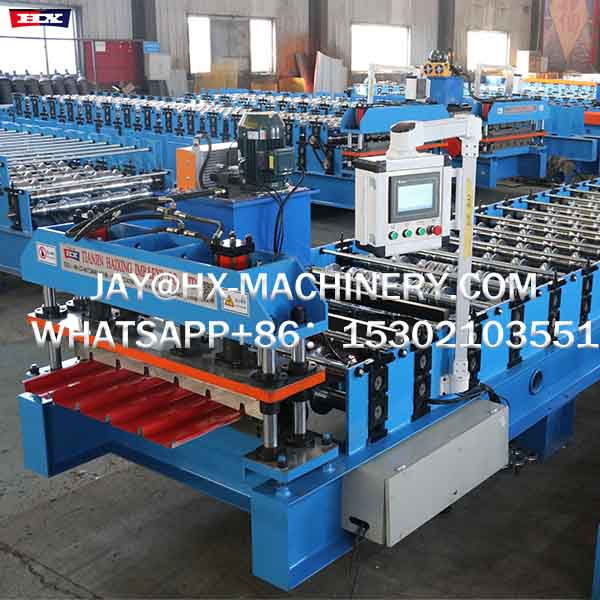

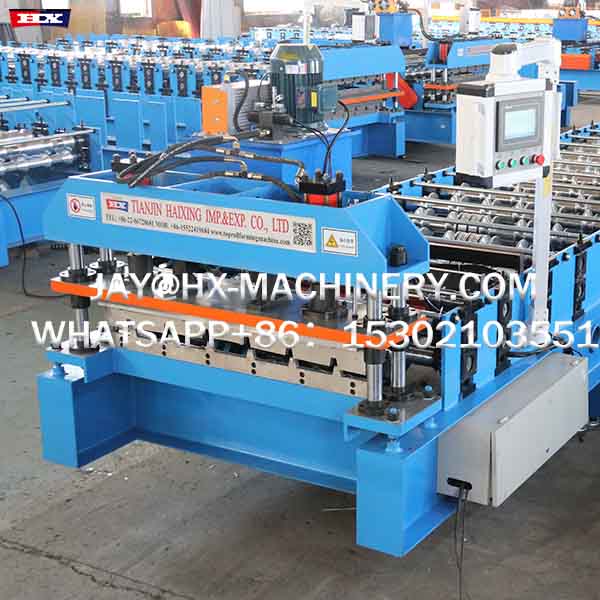

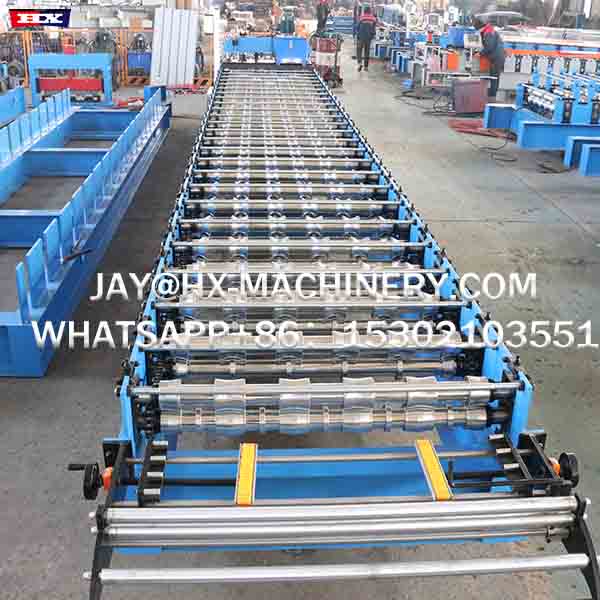

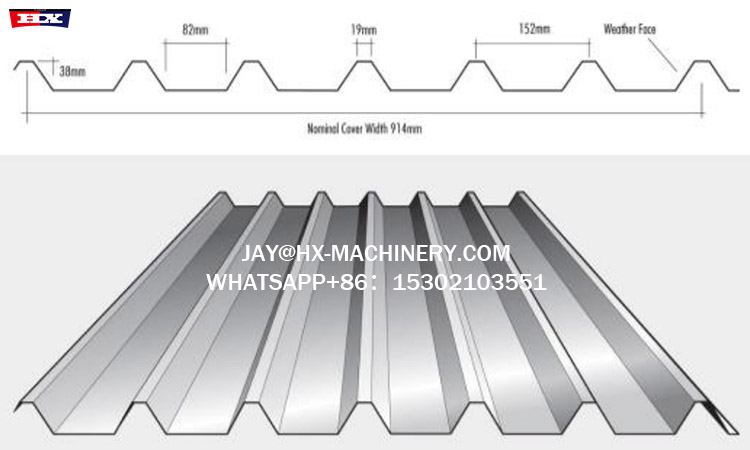

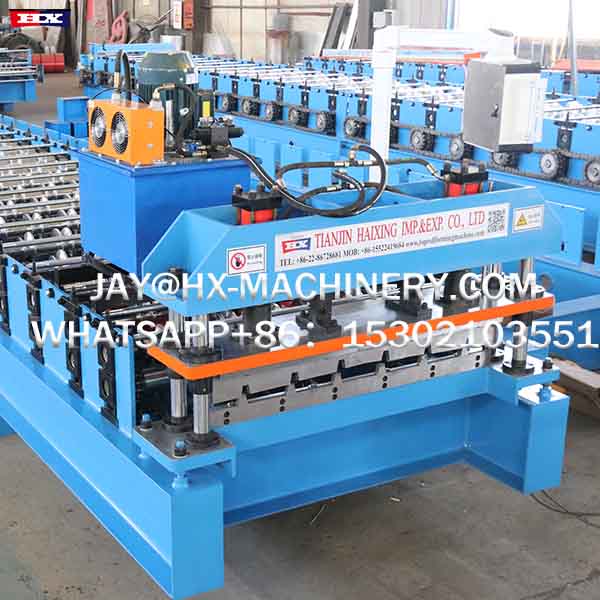

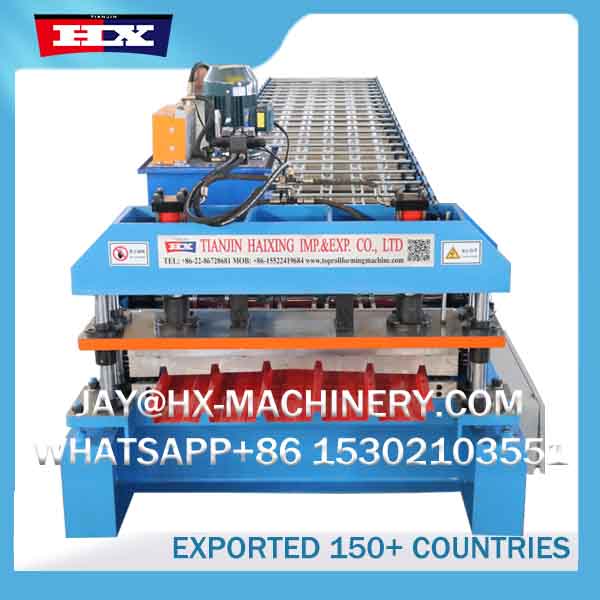

Cr38 roof profile roof trapezoidal machine
Our roof trapezoidal machines are engineered for superior quality and peak performance. Built with robust materials and precision engineering, they guarantee long-term reliability and minimal downtime. Key advantages include high-production speed, consistent profile accuracy, user-friendly PLC controls, and low maintenance costs. We offer complete, customized production lines to maximize your ROI and output efficiency. Invest in durability and precision.
Cr38 roof profile roof trapezoidal machine
Detail
Cr38 roof profile roof trapezoidal machine
|
No.
|
corrugated roof profil corrugated making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
20 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

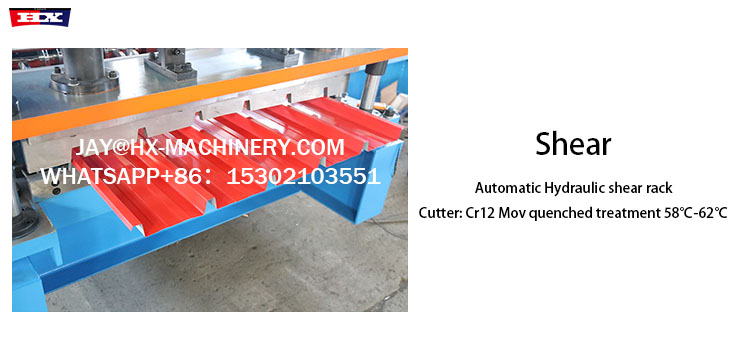

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 9000kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|

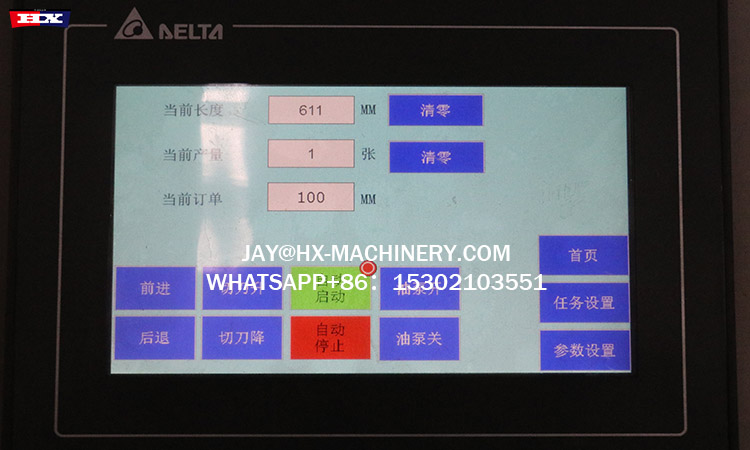

Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
8615302103551
