Develivery time:25-35 days
Model:HX-Trapezoidal-C18-C23
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty

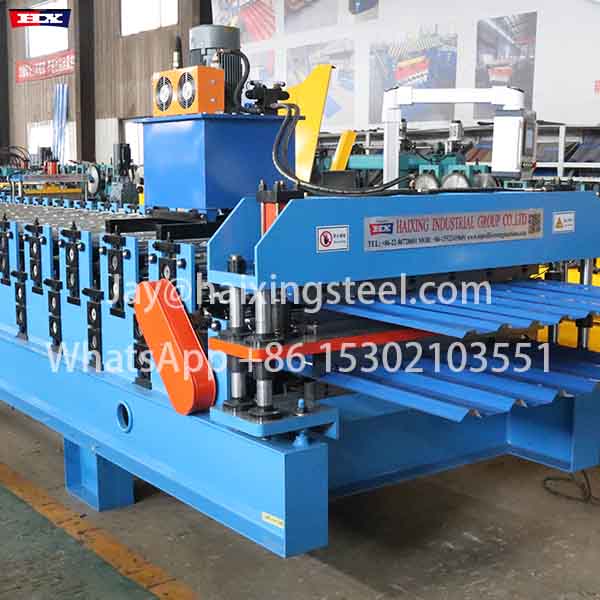

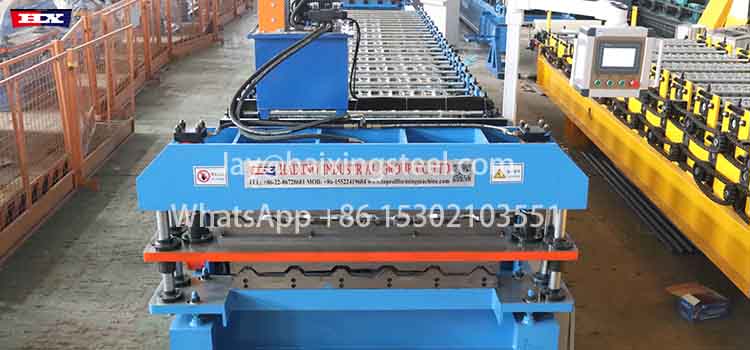

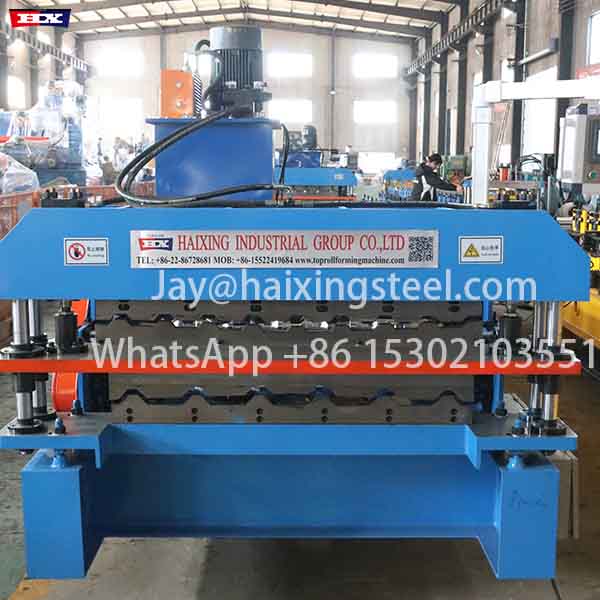

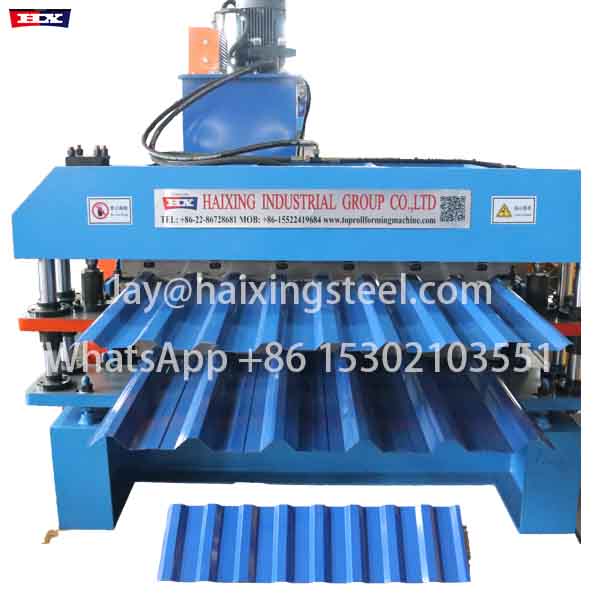

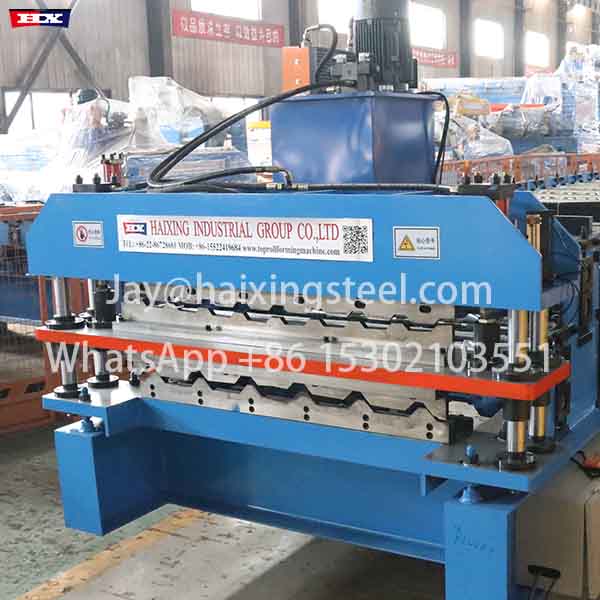

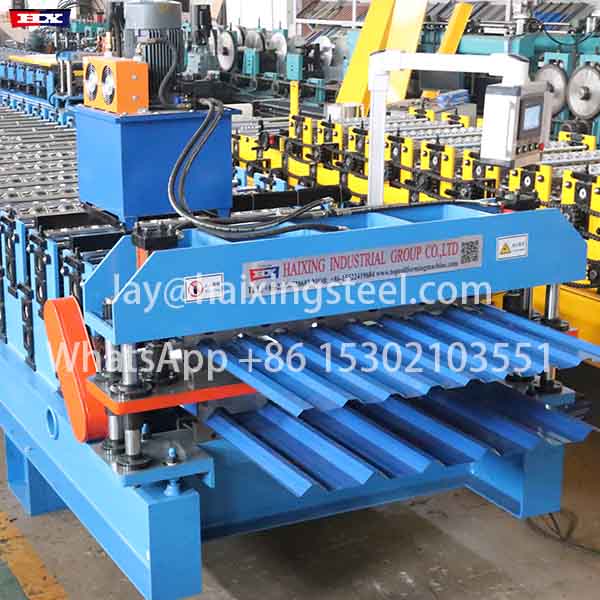

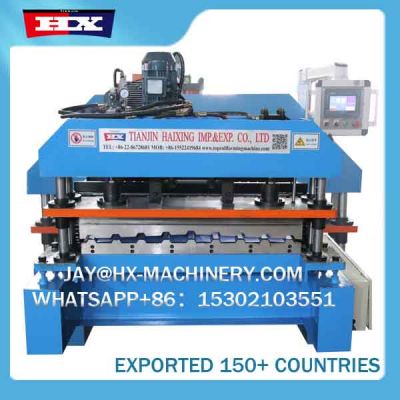

Trapezoidal roofing sheets making machine roll forming
The double-layer trapezoidal roller forming machine is an ideal production equipment for IBR plates and glazed tiles. The roof tiles made by it perform exceptionally well in various roof panel projects such as industrial plants and civil buildings, being both elegant and sturdy
Detail
|
Trapezoidal roofing sheet machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

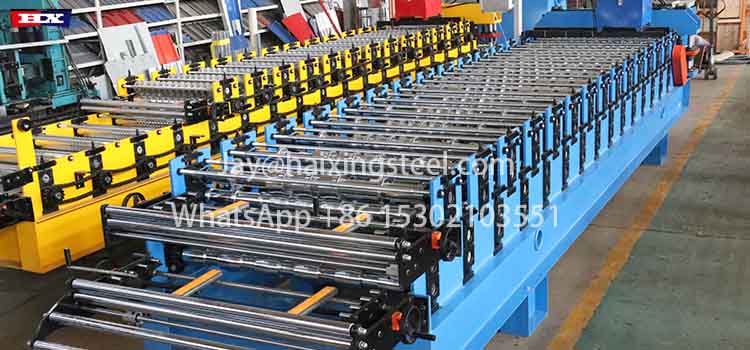

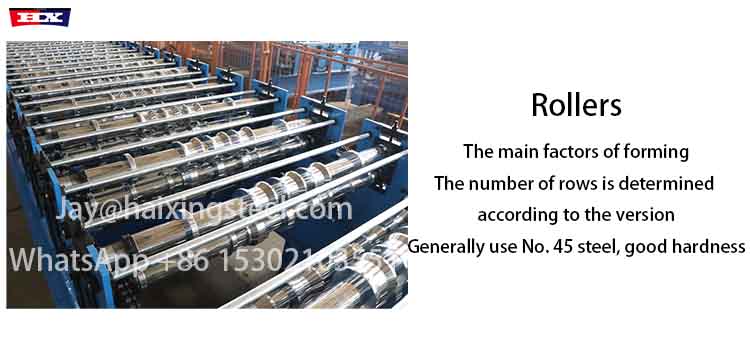

Roller
|
Up layer:15 Rows
Down Layer:16Rows |
|
3
|
Dimensions
|
8*1.65*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|

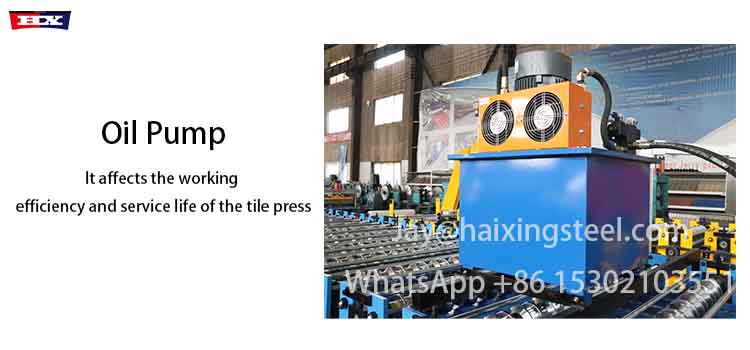

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 6200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
About us-TIANJIN HAIXING
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face .
5.If you come our factory ,you can by air to Beijing airport ,the by fast train to Cangzhou west station ,we can go there pick up you .
If you to Tianjin airport ,we can directly to Tianjin airport pick up you .
