Product Attributes :
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email:jay@hx-machinery.com
WhatsApp+86：15302103551
990 Corrugated roof profile trapezoidal machine
Reliable Quality Our corrugated roll-forming machines utilize high-strength steel and precision manufacturing techniques to ensure uniform thickness and structural strength of each tile. Rigorous quality testing ensures corrosion and aging resistance, ensuring a service life of decades. Whether exposed to wind, rain, or extreme temperatures, our tiles maintain their stability, eliminating the need for frequent repairs and ensuring peace of mind for high-quality building coverings.
990 Corrugated roof profile trapezoidal machine
Detail
990 Corrugated roof profile trapezoidal machine
|
No.
|
corrugated roof profil corrugated making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
15 Rows
|
|
3
|
Dimensions
|
75.5*1.7*1.9m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

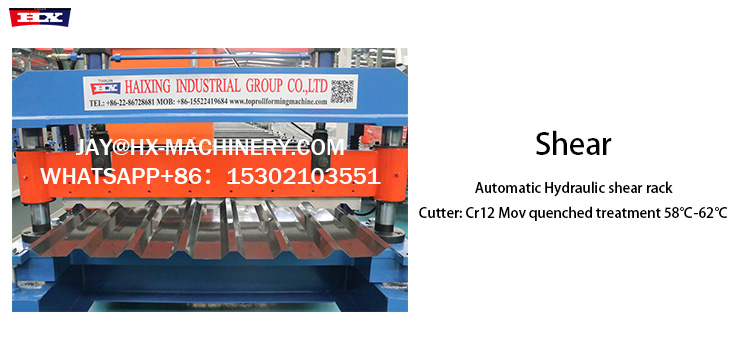

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 6700kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|

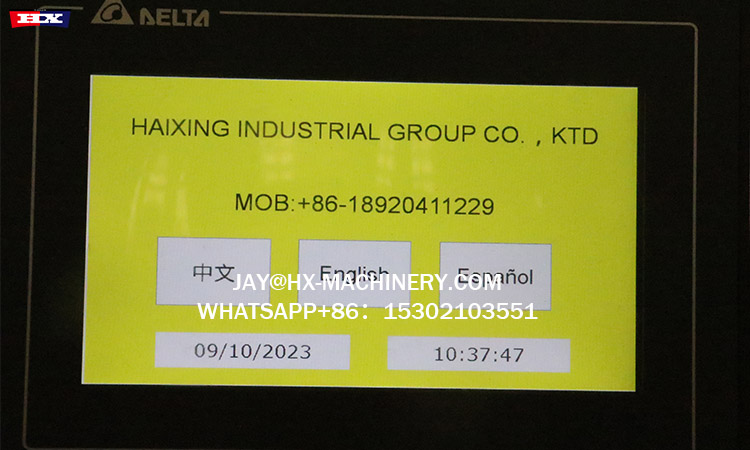

Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
