Develivery time:25-35 days
Model:HX-1064
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
Categories: Corrugated roof sheet making machine
Tags: metal roof forming machine, roof tile roll forming machine,
roofing sheet manufacturing machine, zinc sheet machine
WhatsApp: 0086153021035513
E-mail: Jay@haixingsteel.com

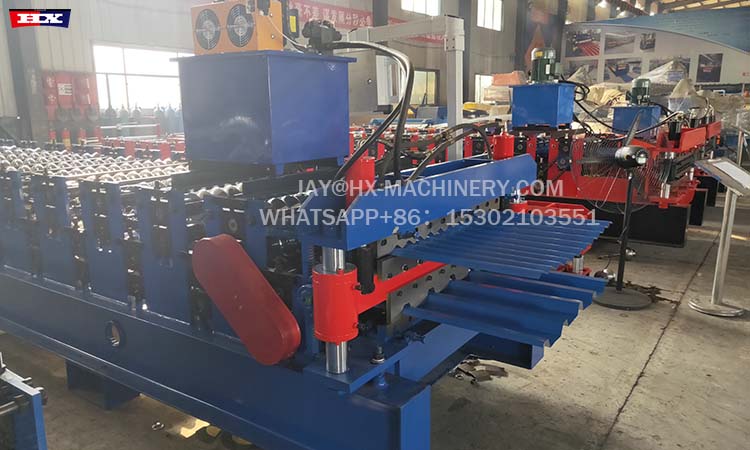

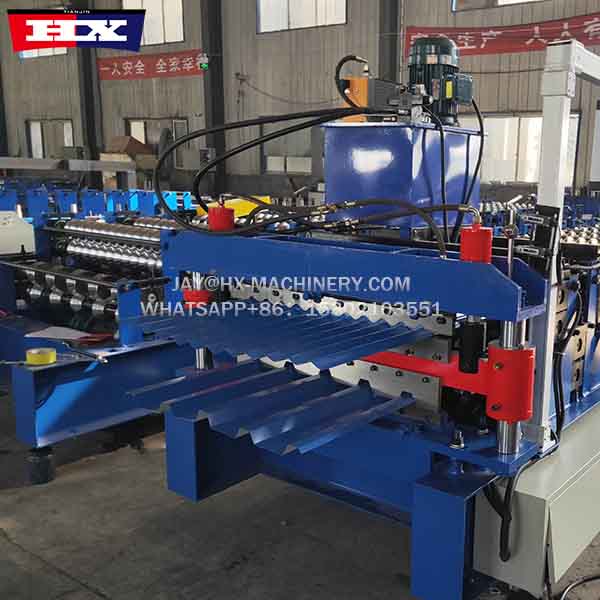

925trapezoidal sheet roll forming machine roof
The 925 trapezoidal sheet roll forming machine ensures fast, accurate production of trapezoidal sheets with consistent quality. Its durable design reduces downtime and material waste, while its energy-efficient operation lowers operational costs, making it perfect for large roofing projects.
925trapezoidal sheet roll forming machine roof
Detail
925trapezoidal sheet roll forming machine roof
|
No.
|
trapezoidal roofing sheet roll forming machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|

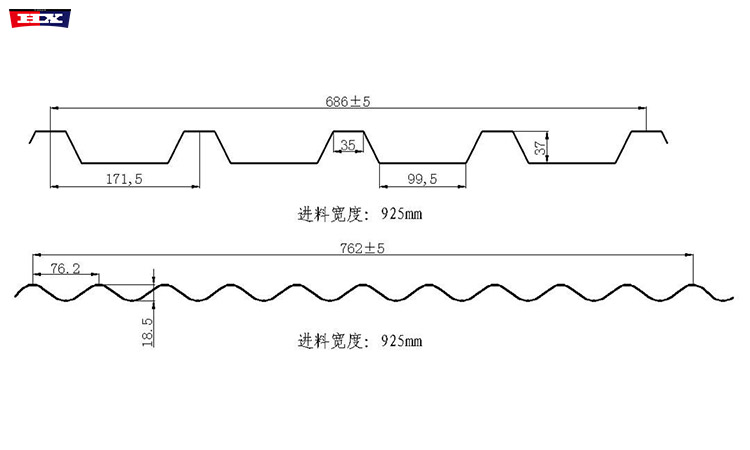

Telha trapezio 40/980:17 Rows
Telha ondulada:13 Rows
|
|
3
|
Dimensions
|
7.65*1.65*1.9m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4900kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
