Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

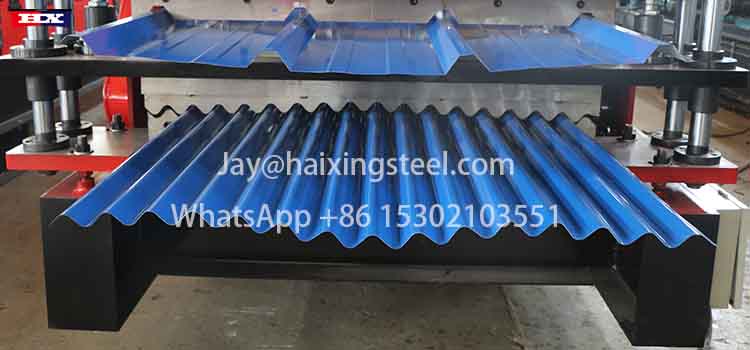

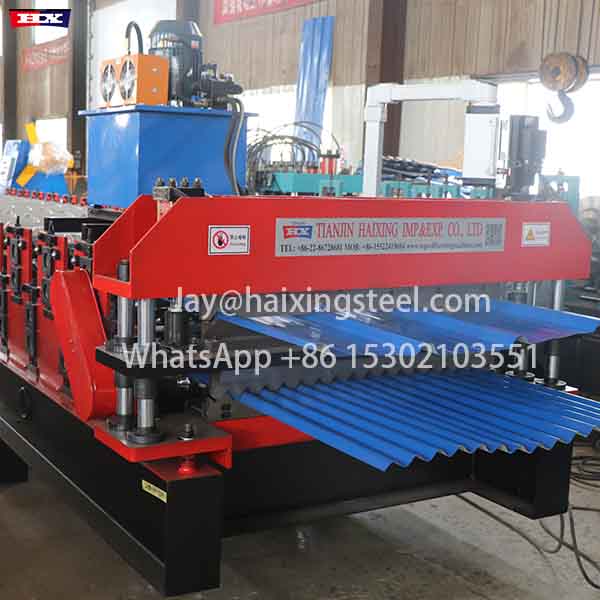

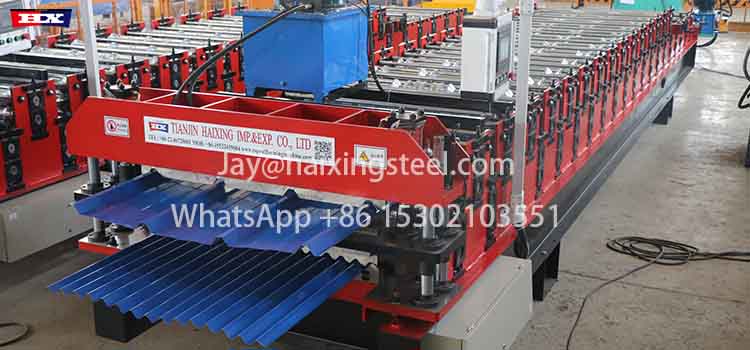

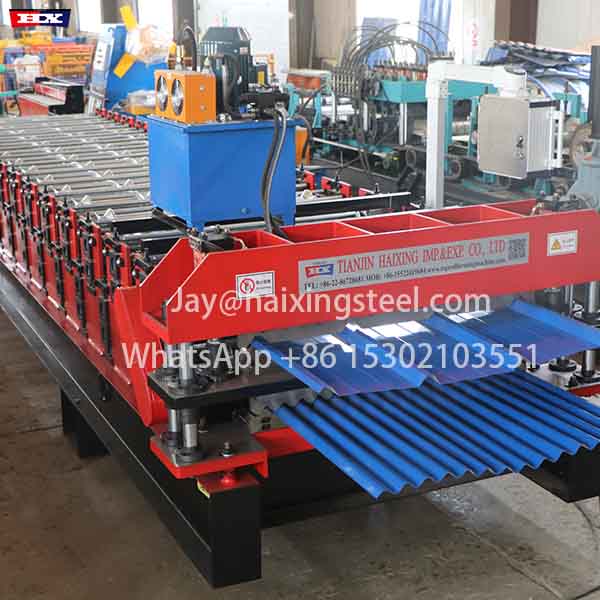

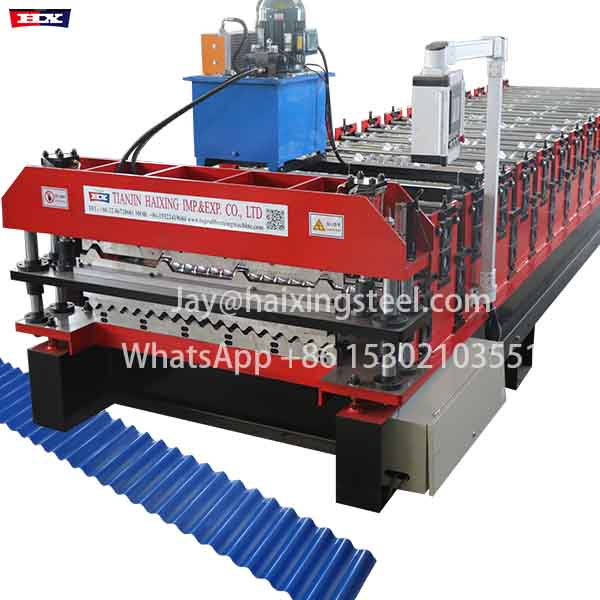

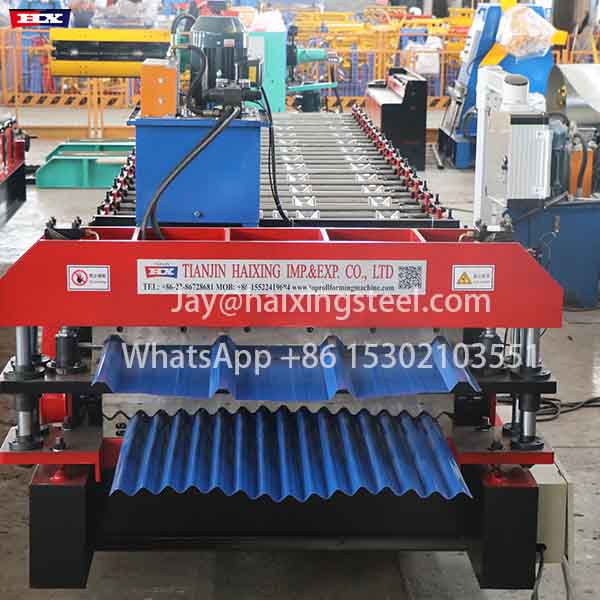

Double roof roll forming machine
The user-friendly operation interface enables even beginners to get started quickly! The double-layer roller forming machine is equipped with multiple safety protection devices. Functions such as emergency braking and overload protection comprehensively ensure the safety of operators, making production more reassuring.
Detail
|
double roof roll forming machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
AG Panel : 15 Rows
R panel/Pbr Panel :20Rows
|
|
3
|
Dimensions
|
9.8*1.85*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|

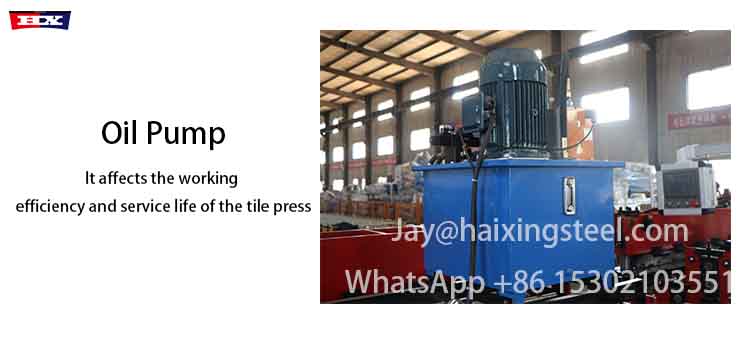

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

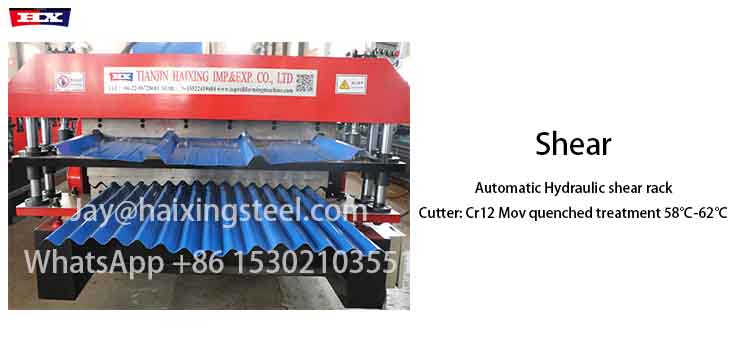

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 78000kg
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 50Hz 1phases or as customer’s need
|
|
16
|

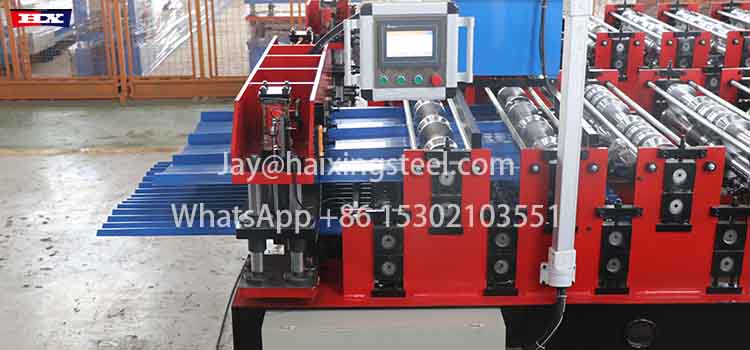

Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
Why Choose Us?
① Industry-Leading 2-Year Warranty
② 25-Day Rapid Turnaround
③ 2 Years Free Service + Lifetime Care
④ Face-to-Face Training at Our Facility
