Model：HX-glazed-1000
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

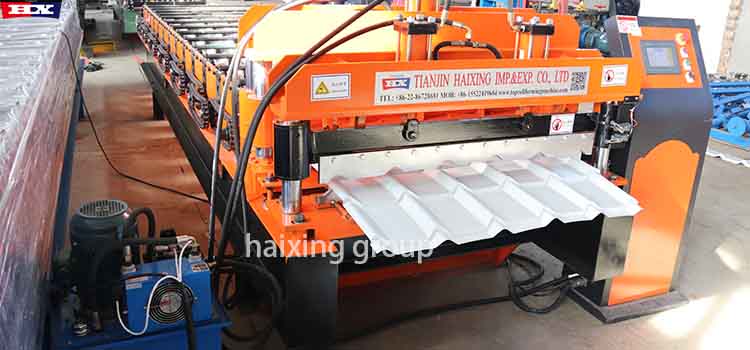

Glazed rcold forming machine
The corrugated roller forming machine is specially designed for the processing of metal roof panels and wall panels. The formed corrugated structure combines drainage performance and decorative effect, making it the preferred material for industrial
Detail
|
No.
|

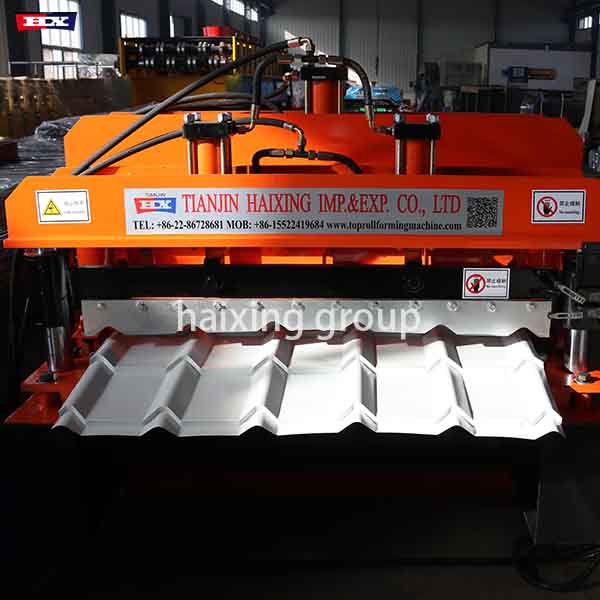

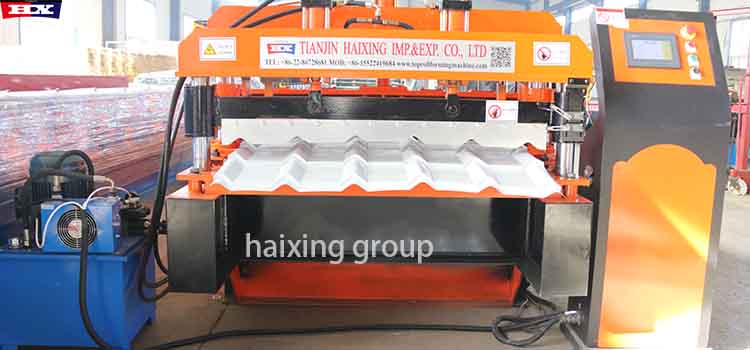

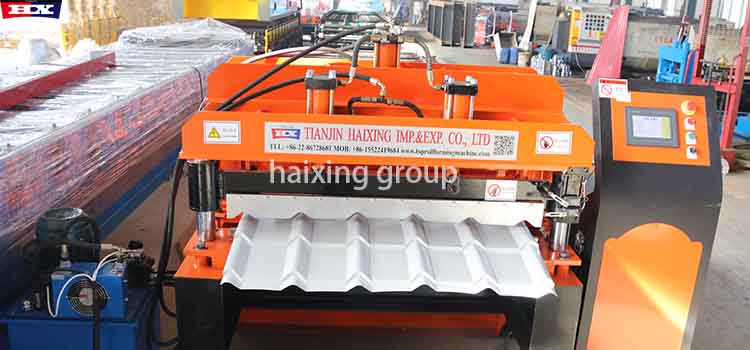

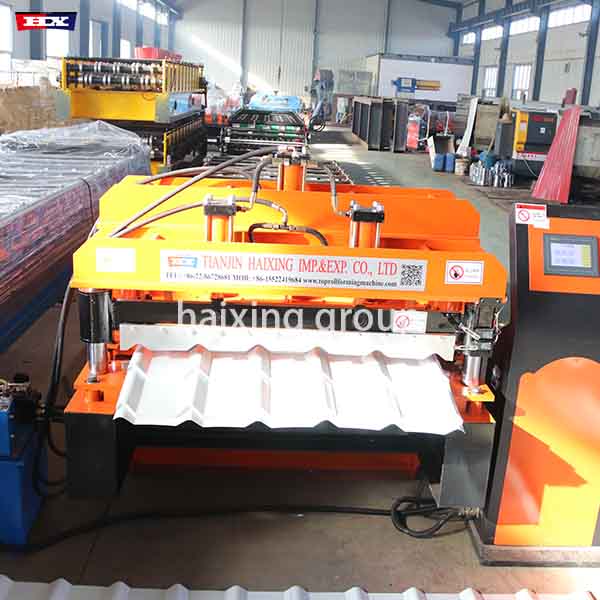

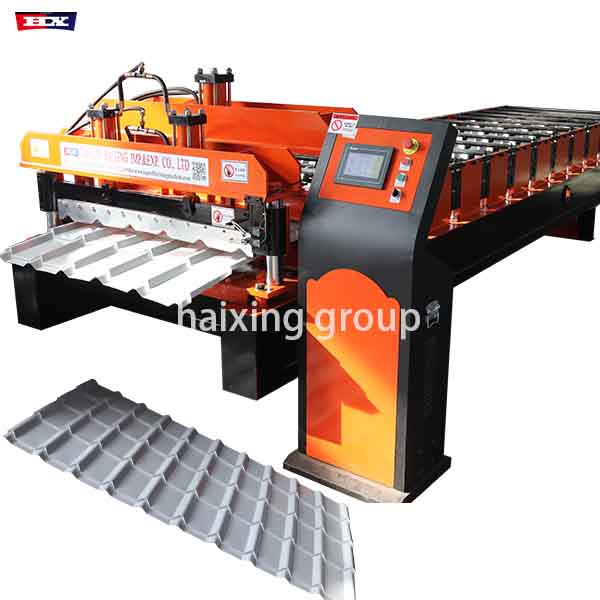

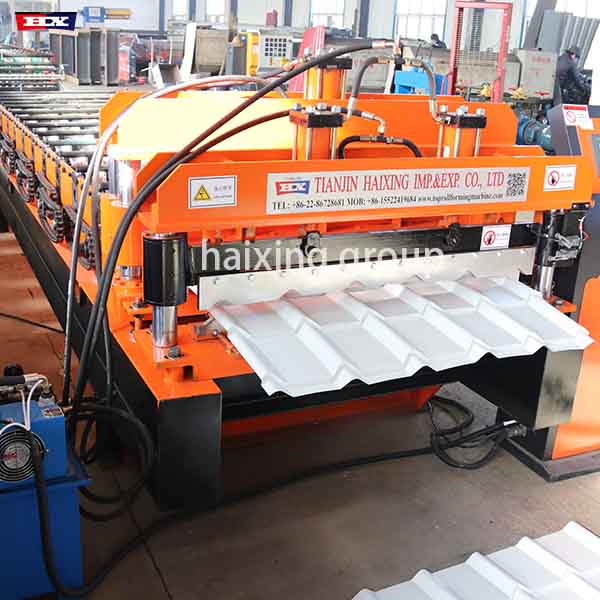

Glazed roof tile making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

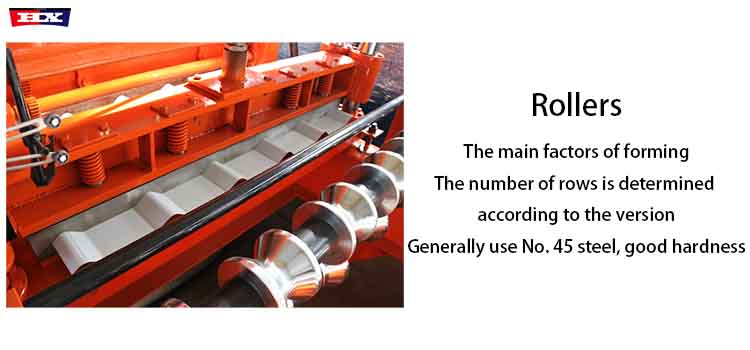

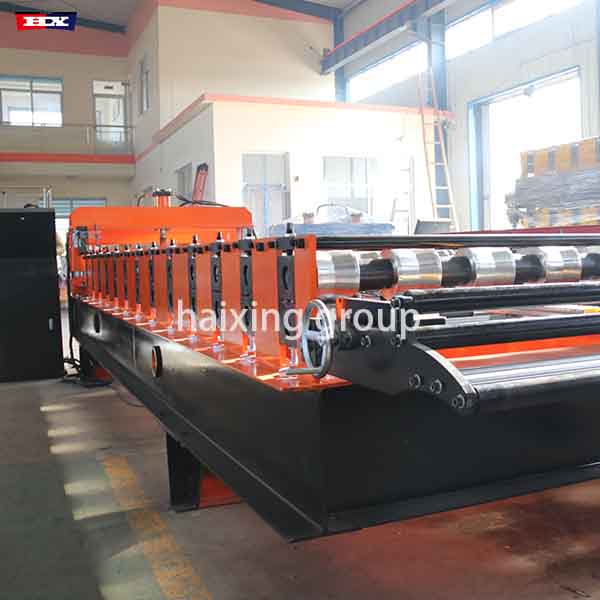

Roller
|
11-13Rows
|
|
3
|
Dimensions
|
5.8*1.55*1.6m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|
Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 3200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
