Develivery time:25-35 days
Model:HX-GP 40-/200
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
Categories: Corrugated roof sheet making machine
Tags: metal roof forming machine, roof tile roll forming machine,
roofing sheet manufacturing machine, zinc sheet machine
Email:jay@hx-machinery.com
WhatsApp+86：15302103551

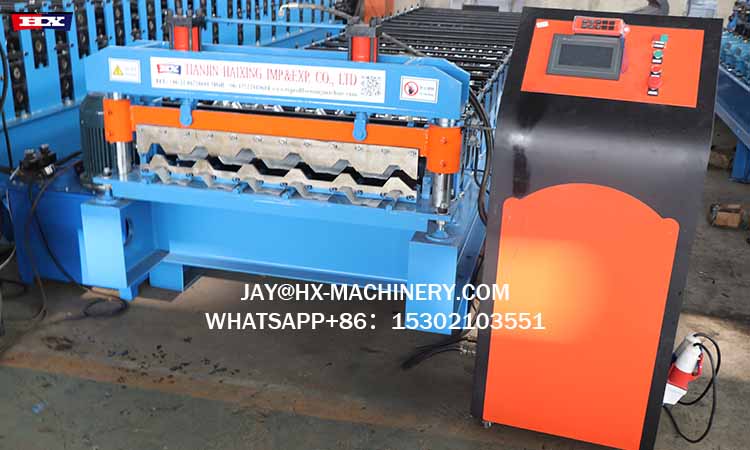

GP 32/200 ag panel roll former
Our GP200AG panel roll former is engineered specifically for agricultural applications. The machine features extra-wide forming stations that handle broader panel designs with superior flatness. Key advantages include: heavy-duty gearbox for continuous operation
GP 32/200 ag panel roll former
Detail
GP 32/200 ag panel roll former
|
No.
|
GP 32/200 ag panel roll former
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

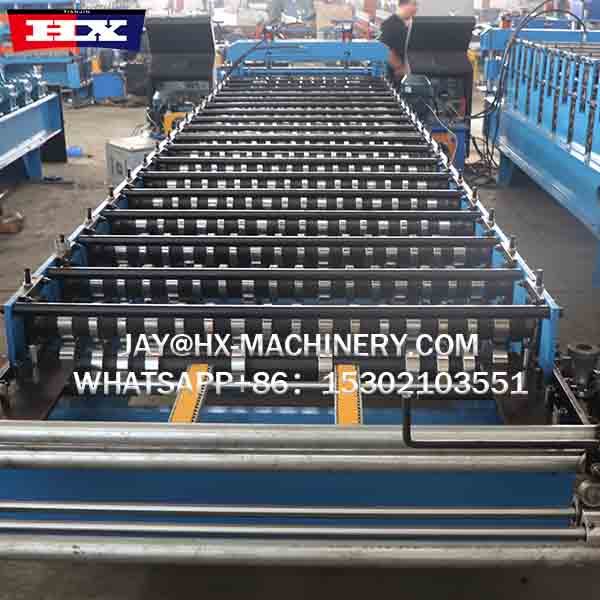

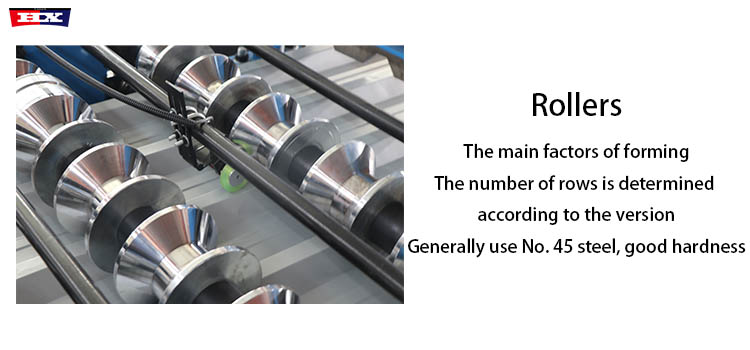

Roller
|
18 Rows
|
|
3
|
Dimensions
|
8.1*1.65*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4300kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|

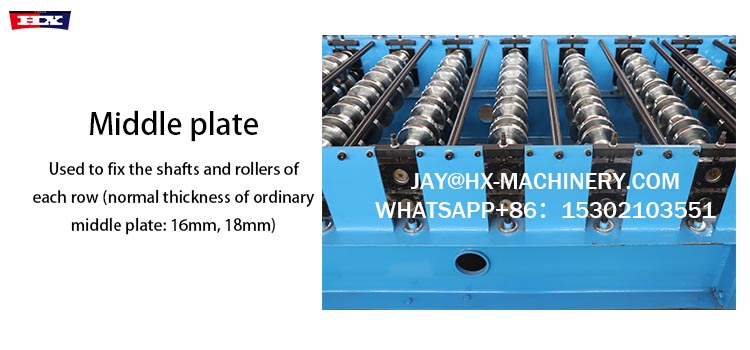

Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|

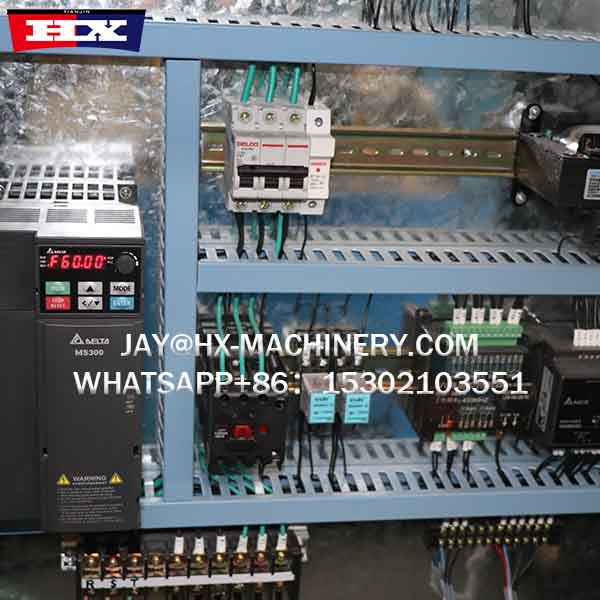

Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
