Model：HX-762
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

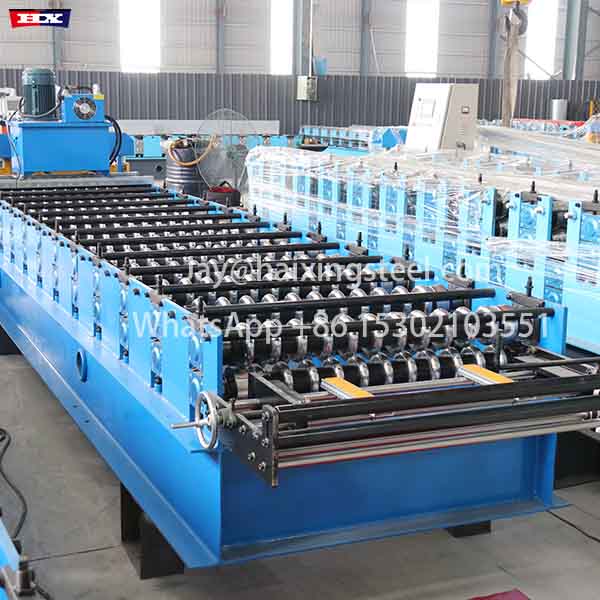

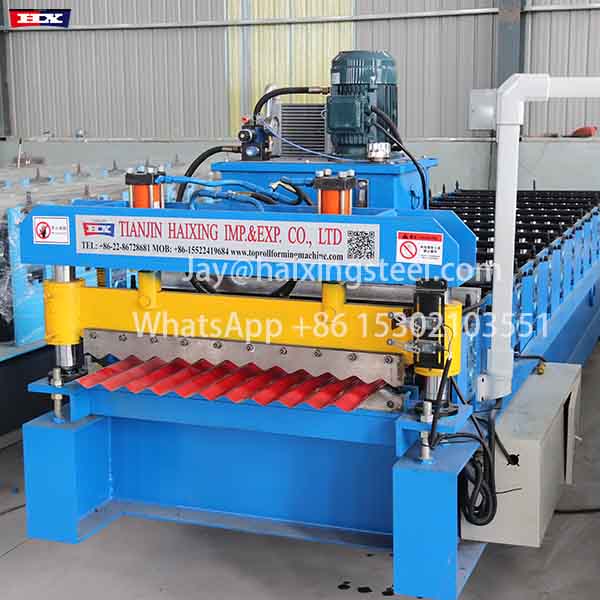

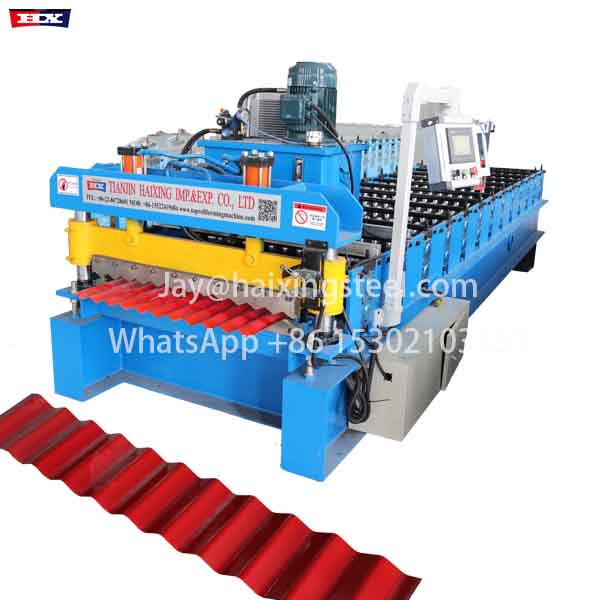

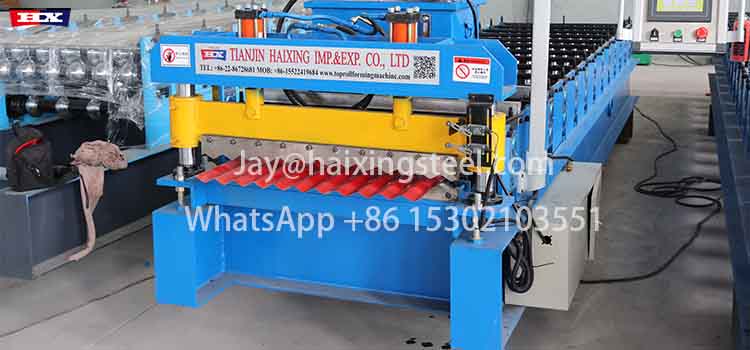

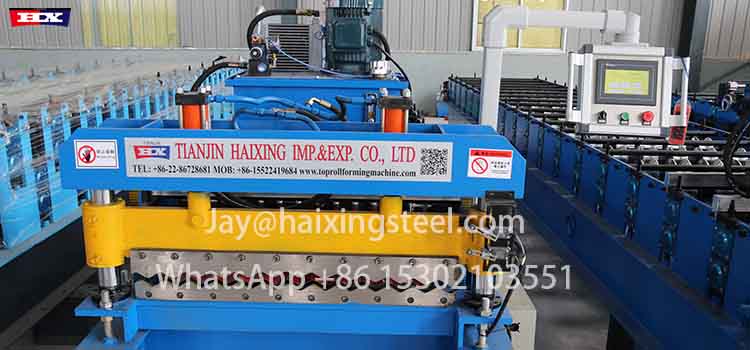

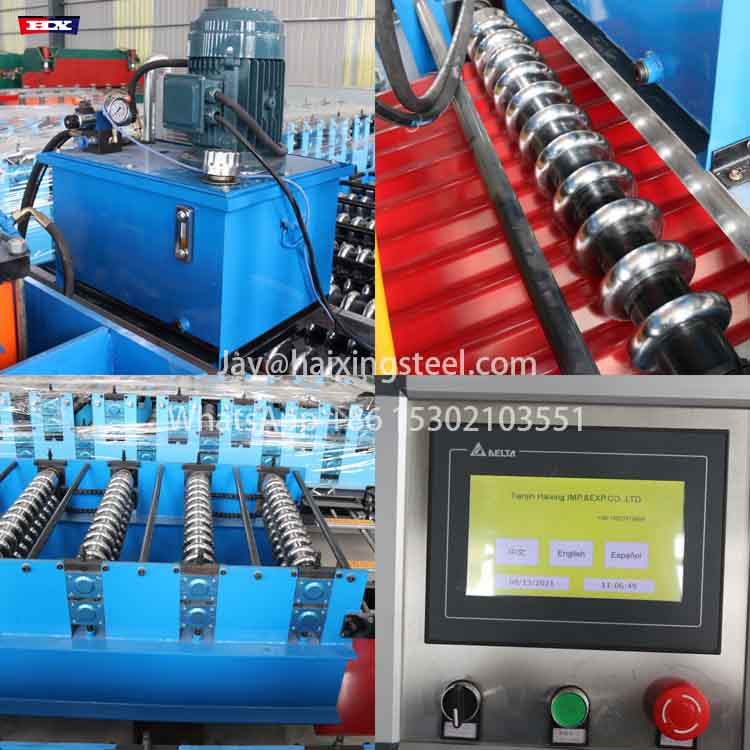

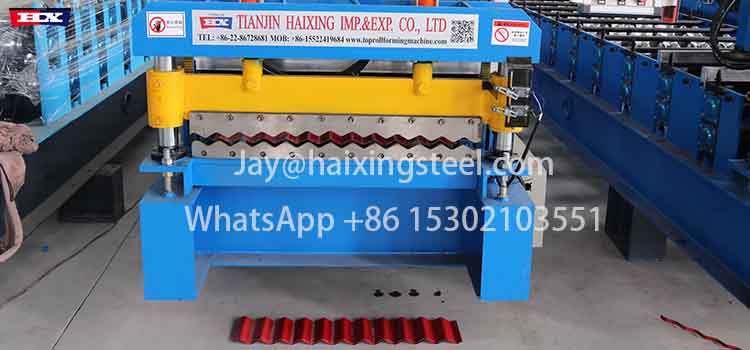

762-corrugated iron machine

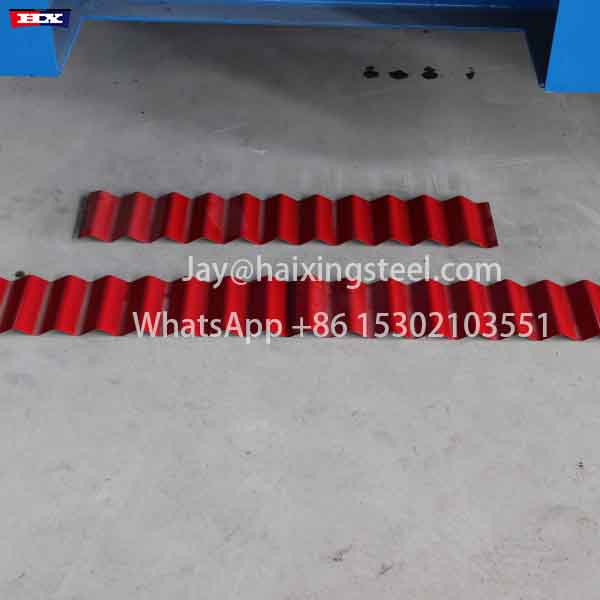

It is an efficient and automated metal forming equipment, mainly used for manufacturing 762mm wide corrugated plates for construction, such as roof panels and wall panels. It features automated material feeding, forming, fixed-length cutting and stacking, reducing manual intervention and lowering production costs.
Detail
|
No.
|
762-corrugated iron machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|

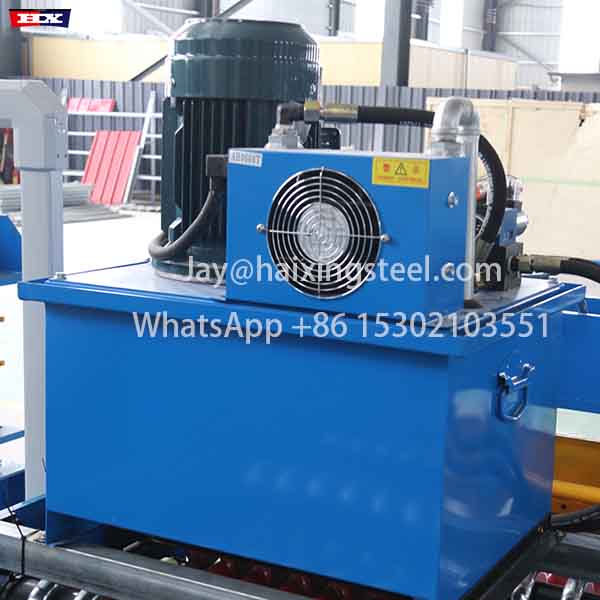

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4100kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
We offer professional and meticulous pre-sale support: • One-on-one technical consultation and customized solutions
• simulation display and process optimization suggestions
• Complete and transparent production and delivery process description
• Exclusive factory visit and inspection reception services.
Q: Core product advantages
1. Intelligent operation: Equipped with an advanced human-machine interaction system, it simplifies the operation process and enhances work efficiency.
2. Convenient maintenance: The modular structure design significantly reduces the difficulty of daily maintenance.
3. Excellent quality: High-quality materials and precise manufacturing processes are adopted to ensure the equipment's durability
