Model：HX-988
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

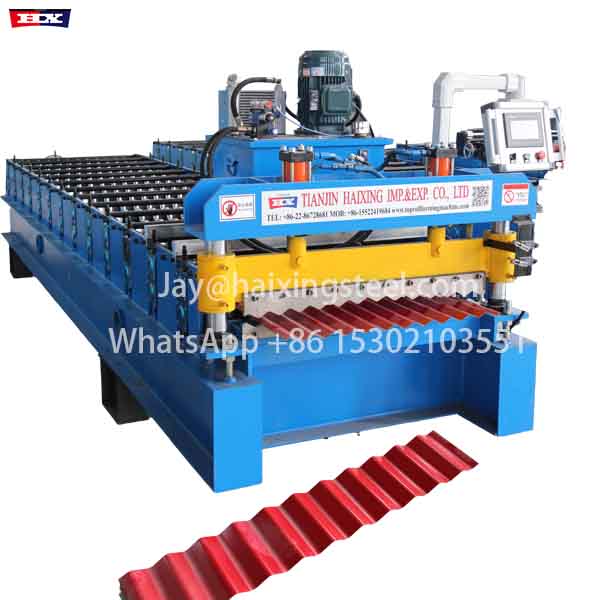

762-corrugated iron making machine
with its high efficiency, stable forming and strong adaptability, has become a key equipment for the production of modern building metal enclosure systems. For more detailed technical parameters or case references, further communication is welcome
Contact information：
Jay@haixingsteel.com
WhatsApp：+86 15302103551
Detail
|
No.
|
762-corrugated iron making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|

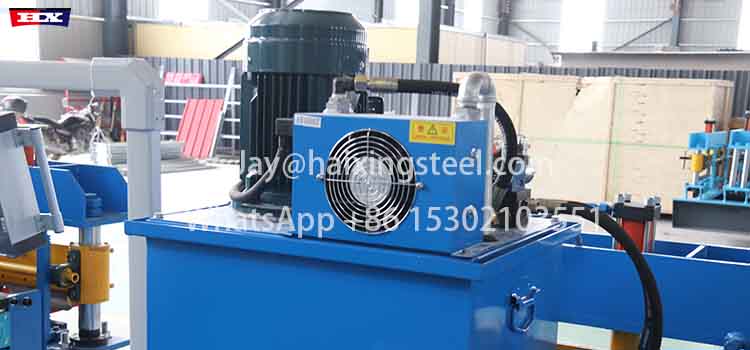

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4100kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
After-sales service commitment for corrugated plate roof forming machine: Quality Assurance Service: The entire machine enjoys a 24-month warranty period. Lifetime professional technical support is provided. Efficient delivery commitment: Equipment delivery is completed within 25 working days after receiving the advance payment. Complete after-sales system: Free maintenance service (including labor and parts) is provided within 24 months We offer lifetime paid maintenance and repair services and professional training support
Customers who choose to come to the factory for machine inspection can enjoy:
✓ On-site installation guidance by engineers
✓ One-on-one practical training for operators
✓ Equipment debugging and maintenance teaching
