Model：HX-988
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

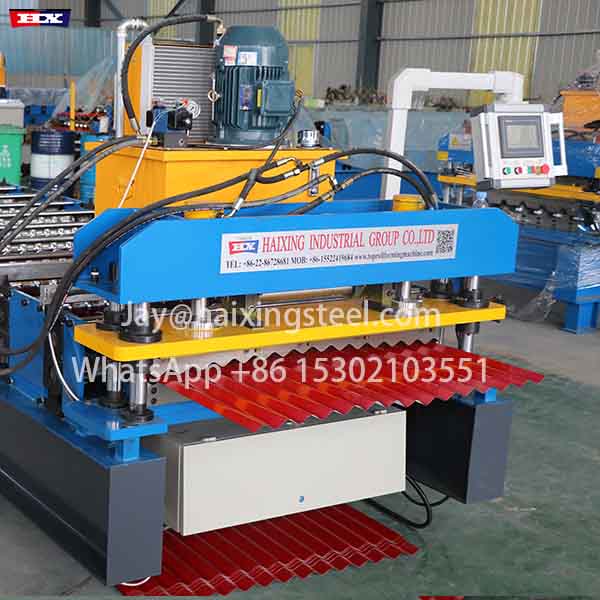

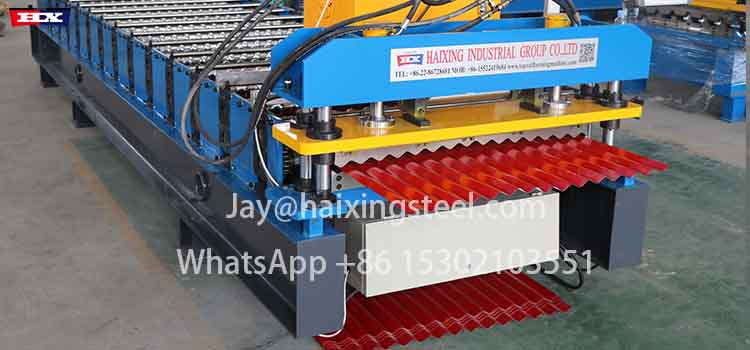

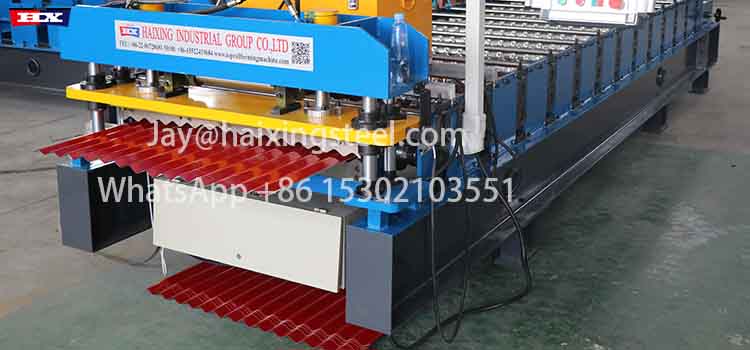

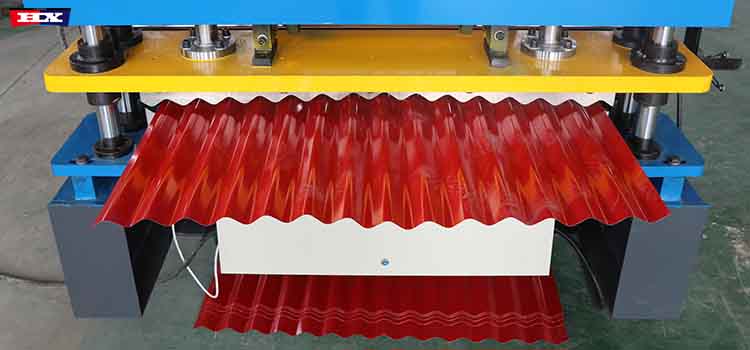

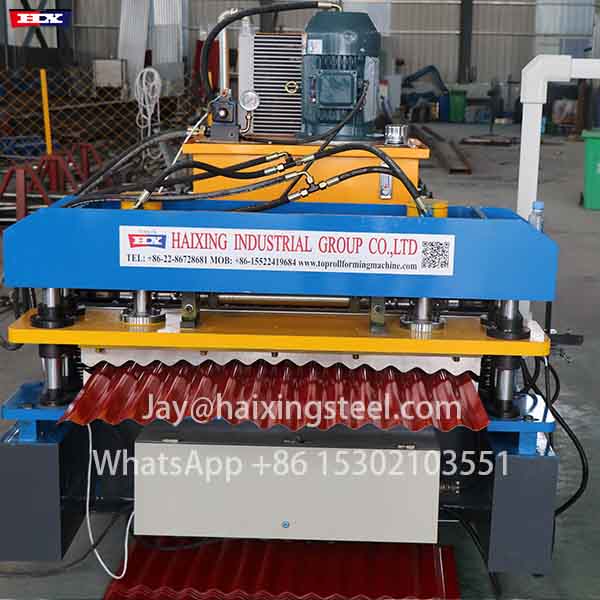

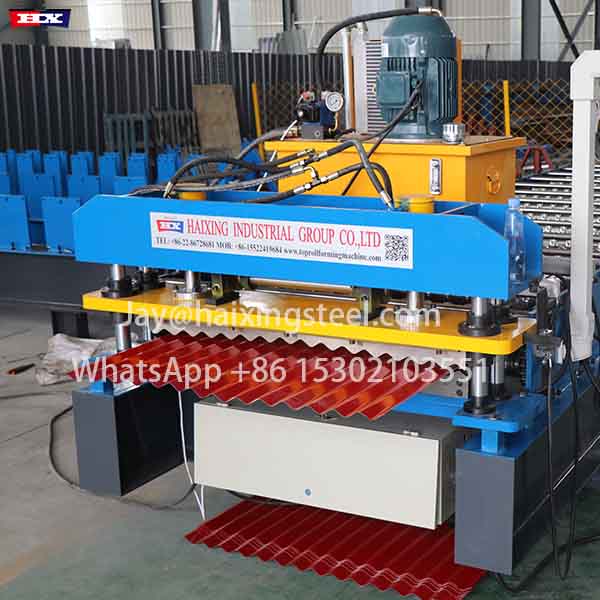

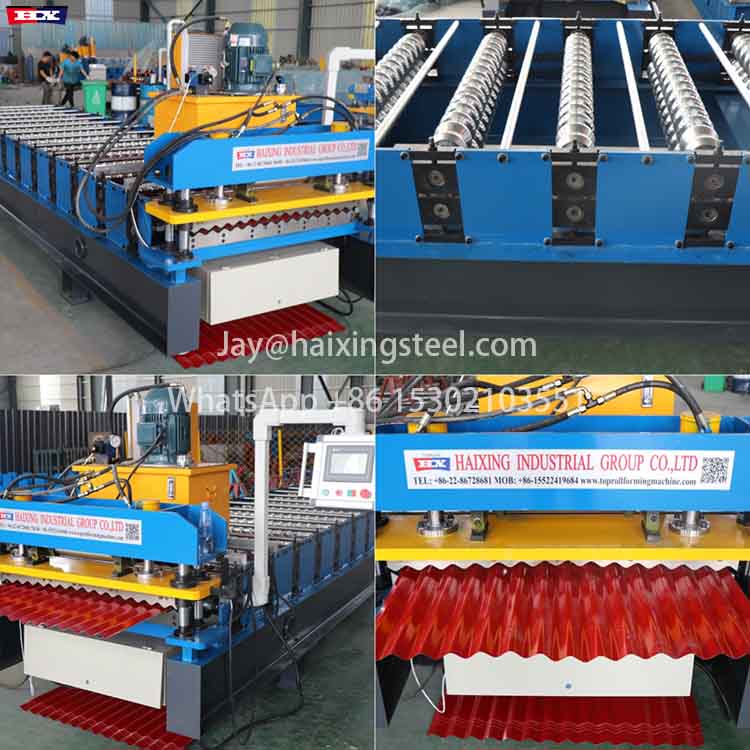

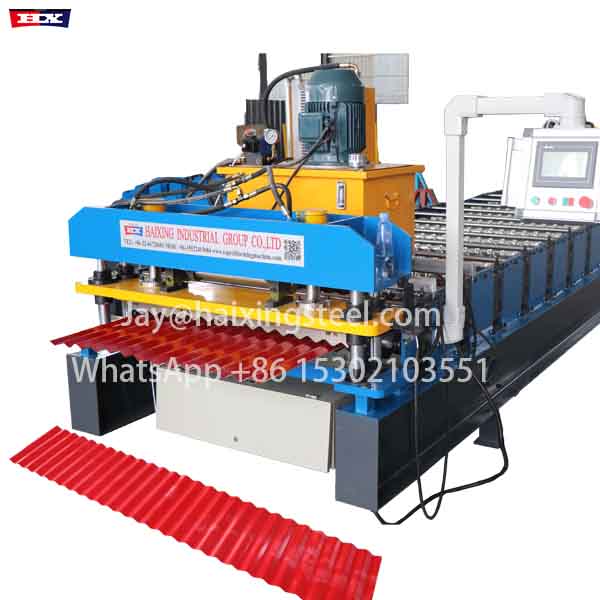

988-corrugated sheet rolling machine
We offer a variety of models to choose from. The roof panels we produce are suitable for various construction projects such as industrial plants, civil buildings and ancillary facilities, and they have the advantages of being beautiful, durable and having a long service life
Detail
|
No.
|
988-corrugated metal roof making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4300kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: What is our unique value?
1. With nearly 30 years of technological accumulation (since operation in 1996), we have continuously led the industry's technical standards.
2. Comprehensive customized services, providing a complete solution from concept design to finished product delivery.
3. Ultra-high cost performance, allowing you to obtain top-notch equipment performance with reasonable investment.
4. A global business network, with products exported to over 150 countries. Q: What professional support can be obtained before purchasing? It is highly recognized in the international market.
We offer comprehensive pre-sale services:
• Personalized demand analysis and solution design
• technology demonstration and parameter optimization
• Clear and transparent production and delivery process • Exclusive factory visit and inspection reception.
Q: What is the core competitiveness of the equipment?
1. Intelligent operation: Equipped with an advanced control system, it is simple and efficient to operate, significantly enhancing production efficiency.
2. Low-maintenance design: Optimized structure combined with an intelligent maintenance system greatly reduces operating costs.
