Model: HX-103-988 corrugated
Delivery time: 25-30 workdays
Payment: By TT or LC
Warranty Period: 2 years
Advantages: Automatic, easy for operation

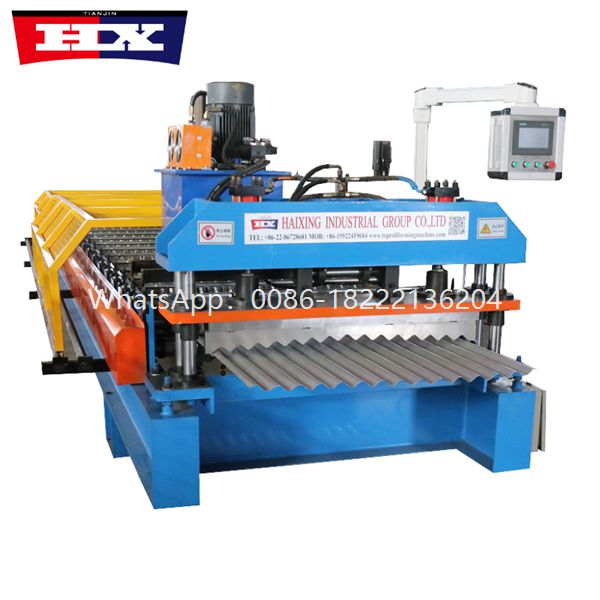

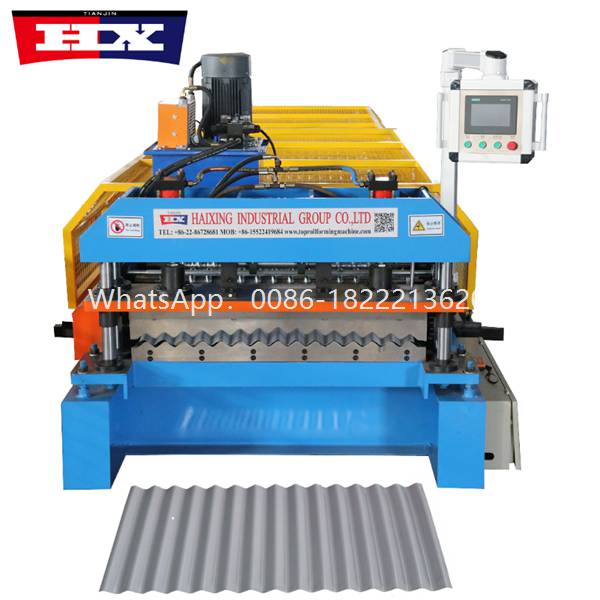

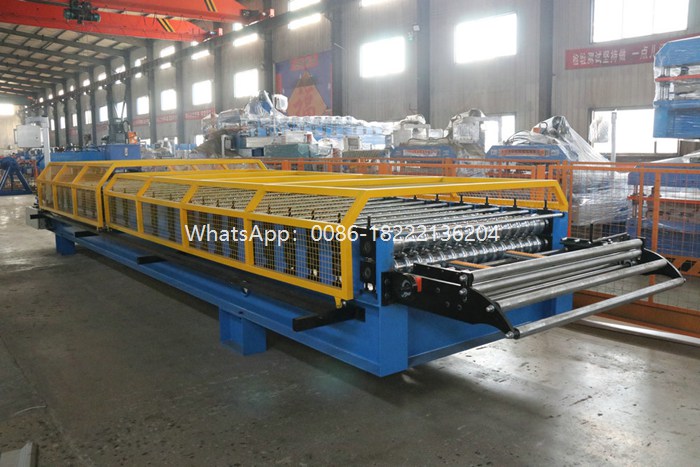

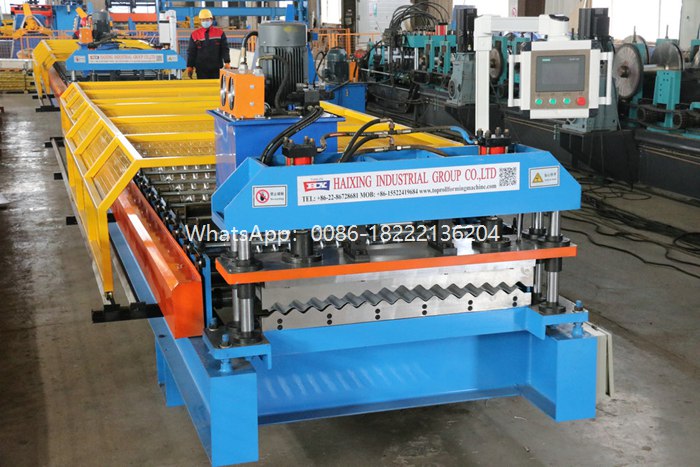

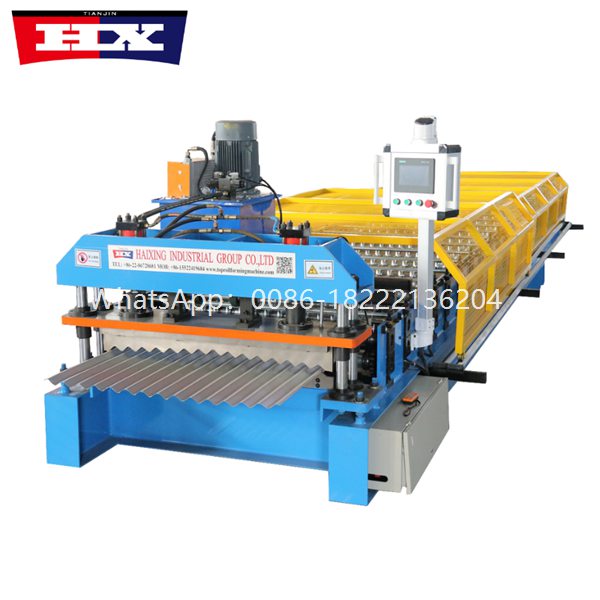

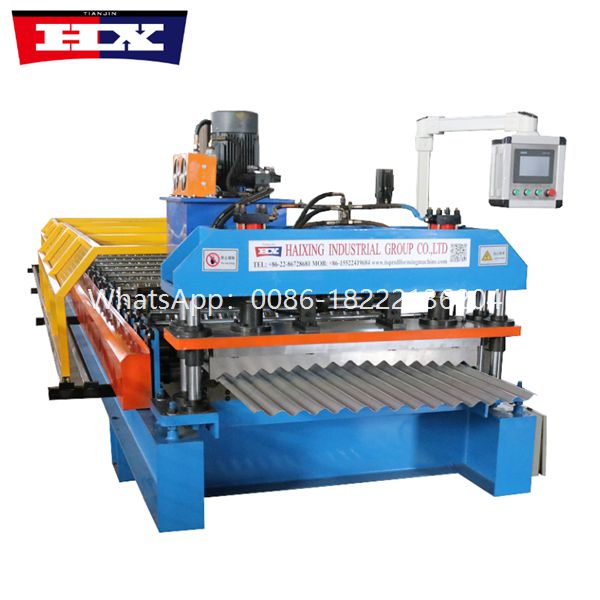

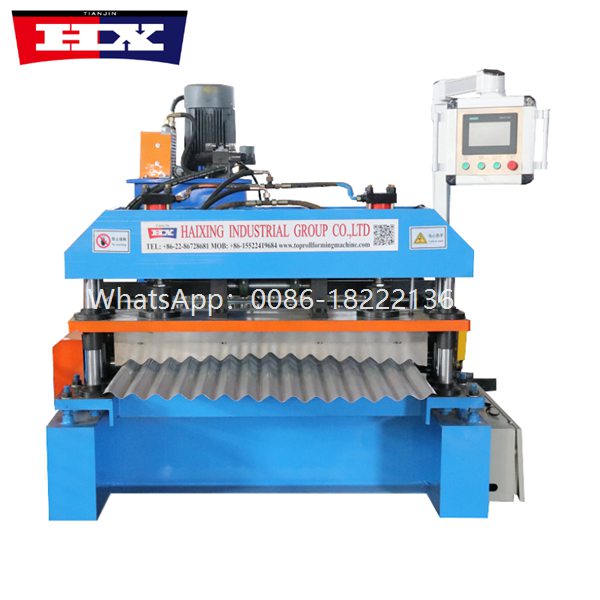

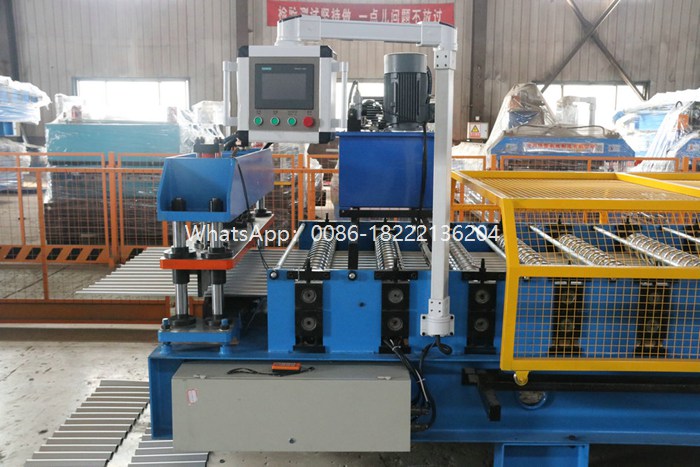

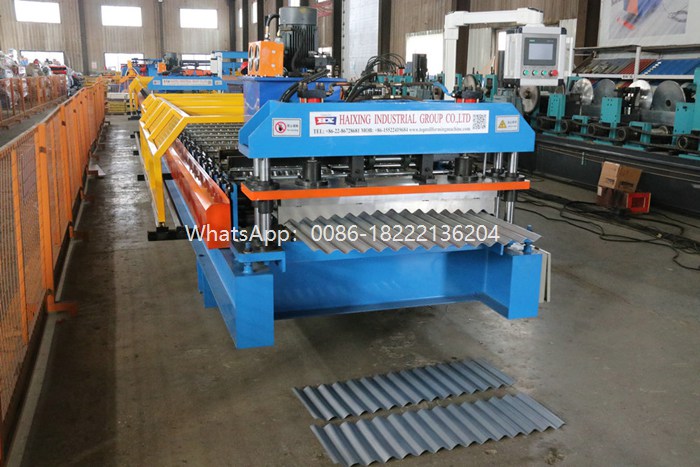

988 Corrugated sheet roll forming machine
Corrugated sheet roll forming machine has different types which used together with trapezoidal sheet and glazed sheet, or other roof tile sheet.
The corrugated roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
Choose our corrugated Roll Forming Machine for high efficiency, precision, and durability, ensuring superior-quality roofing sheets for a wide range of construction applications.
Contact us by：Mob/WhatsApp: 0086-18222136204
Main Parameter 988 corrugated roll forming machine
| No. | Corrugated sheet roll forming machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |

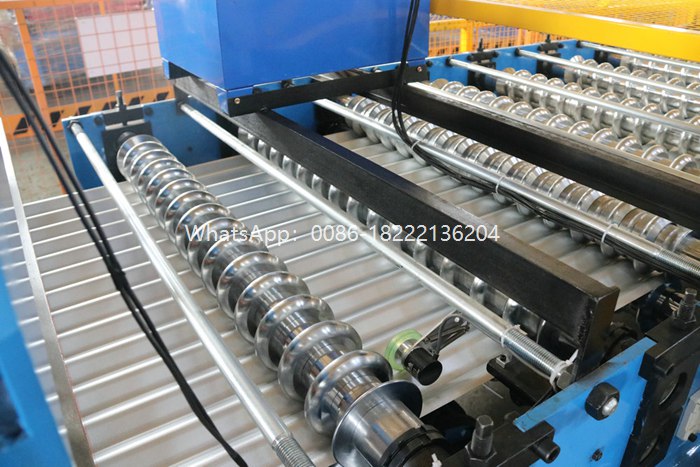

| 2 | Roller | 24Rows |
| 3 | Dimensions | 11.8*1.5*1.6m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12 MoV,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 5200kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm/18mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch/1.2inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Chain driver |
| 19 | Touch screen | Delta |
| 20 | Rollier material | 45# forging steel with chromium plated |
| 21 | Length Tolerance | ±2mm |
Advantages
Q: Why choose us?
1. 28 + Years of Expertise since 1996, Leading Quality Roof Roll Forming Industry.
2. Design and Making High-Quality Roll Forming Machines with Customization,Tailor-Made Solutions.
3. Competitive Pricing & Superior Performance,Cost-Effective Solutions.
4. Service Customers more 150+ Countries – Your Best Roll Forming Machine Partner.
Q:What service can you provide before order?
About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
Q:What's the machine advantage?
1. Easy to operate: The corrugated roll forming machine adopts a humanized operating interface and intelligent control system, making the operation easier and faster, and reducing the labor intensity of workers.
2. Easy maintenance: The corrugated roll forming machine structure design is reasonable, easy to maintain and extends the service life of the equipment.
3. High performance: Although the corrugated roll forming machine is superior to similar products in terms of performance and quality, its price is relatively reasonable with high performance.
