Model：HX-corrugated-684
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

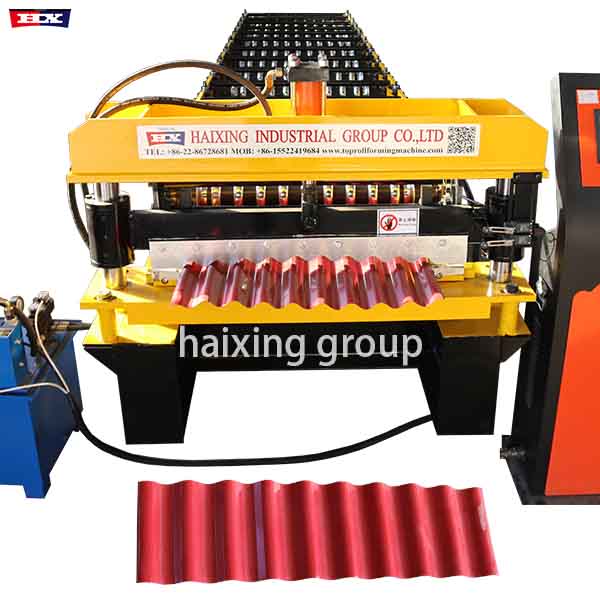

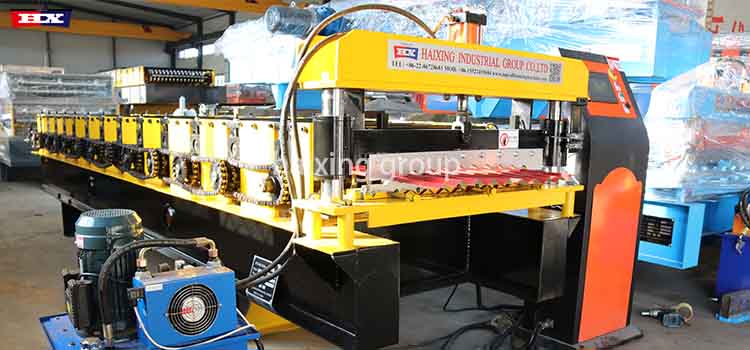

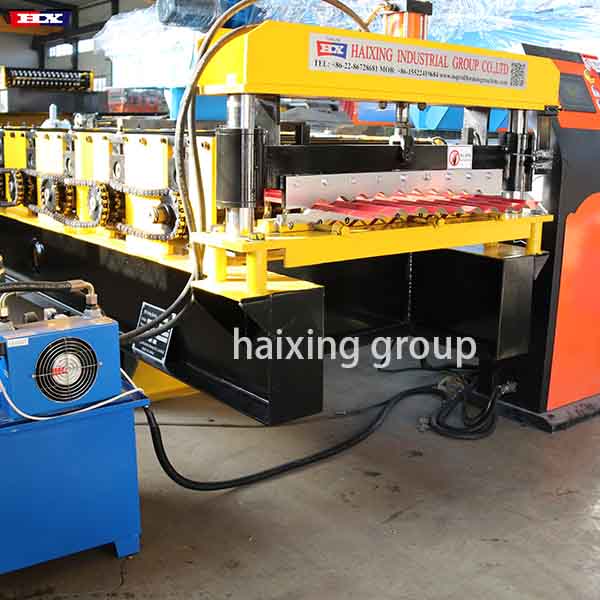

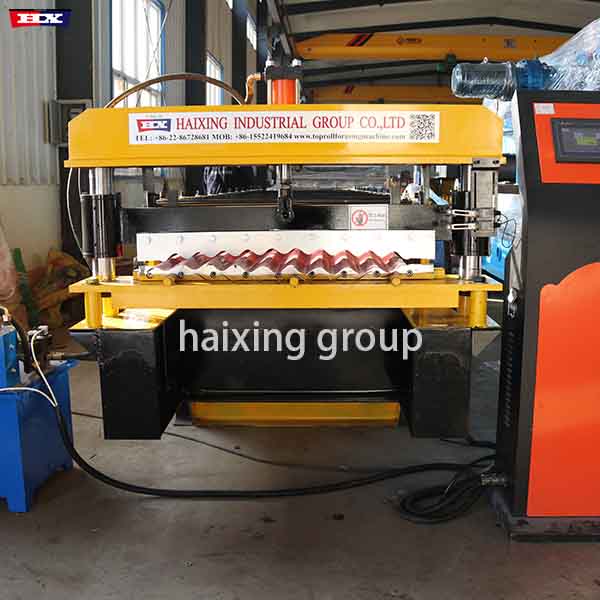

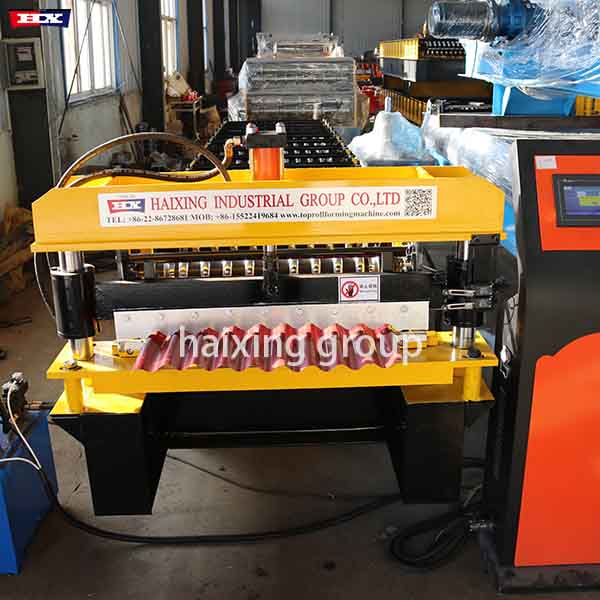

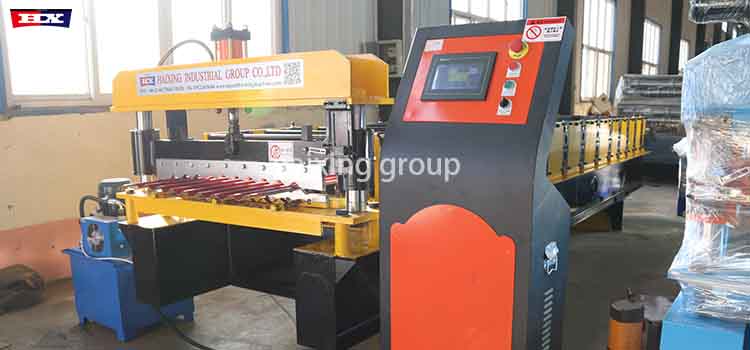

Corrugated-684 zinc roofing sheet making machine
The corrugated roller forming machine is a professional equipment for manufacturing metal roof panels and wall panels. Its unique corrugated shape not only has a practical drainage function but also possesses decorative beauty, making it particularly suitable for use in industrial plants and commercial buildings
Detail
|
No.
|
Corrugated-684 zinc roofing sheet making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

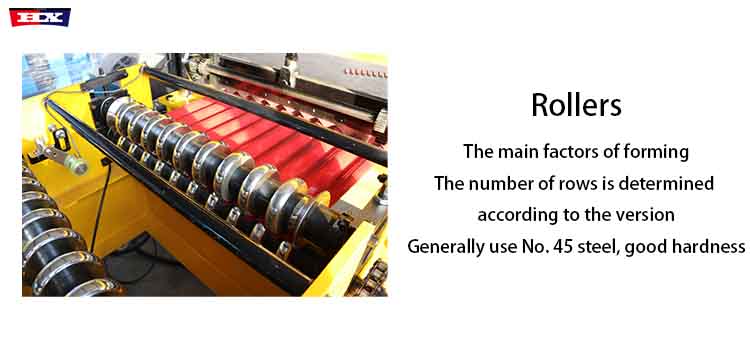

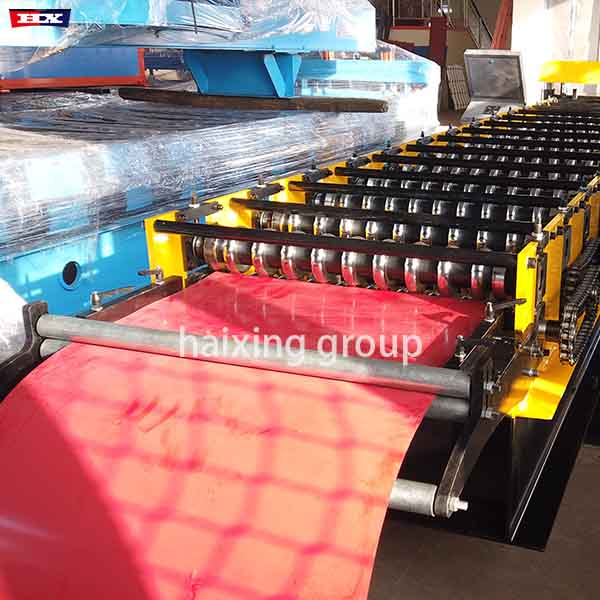

Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|

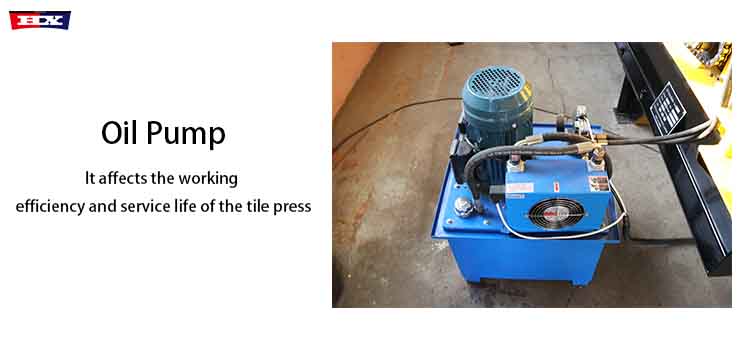

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4100kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
After-sales service policy for corrugated Plate Forming Equipment:
I. Quality Assurance 1. The entire machine is guaranteed for 2 years.
2. Free technical support is provided for life. Ii.
Delivery Time:
