Model：HX-988
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use
988-corrugated sheet rolling machine
We offer a variety of models to choose from. The roof panels we produce are suitable for various construction projects such as industrial plants, civil buildings and ancillary facilities, and they have the advantages of being beautiful, durable and having a long service life
Detail
|
No.
|
988-corrugated sheet rolling machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

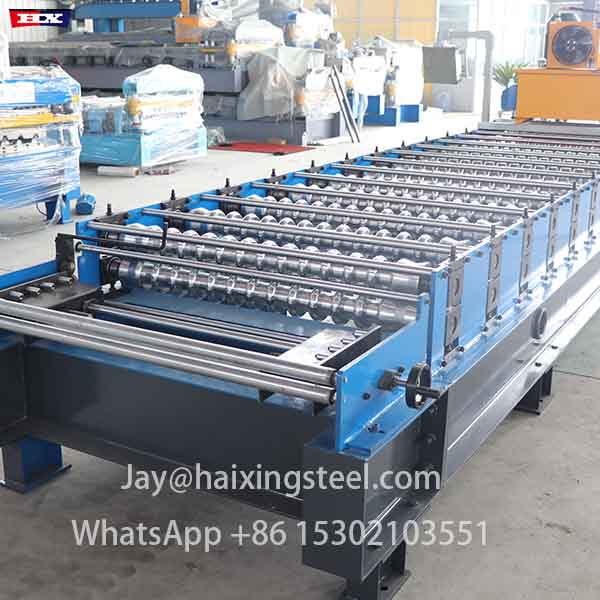

Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4300kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
