Develivery time:25-35 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp: 008615302103551
E-mail: jay@hx-machinery.com

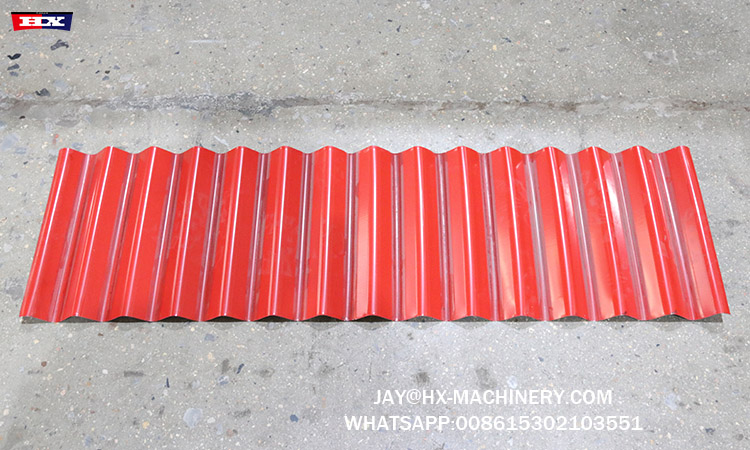

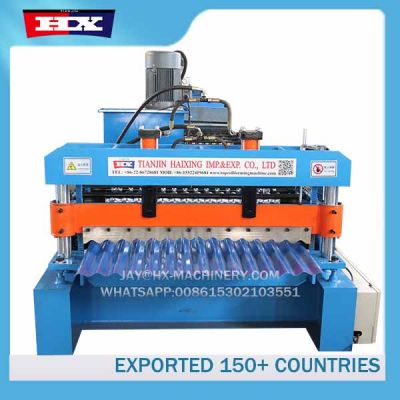

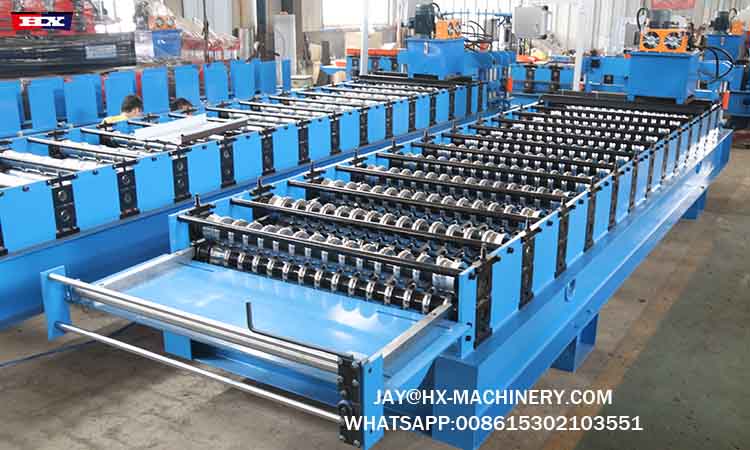

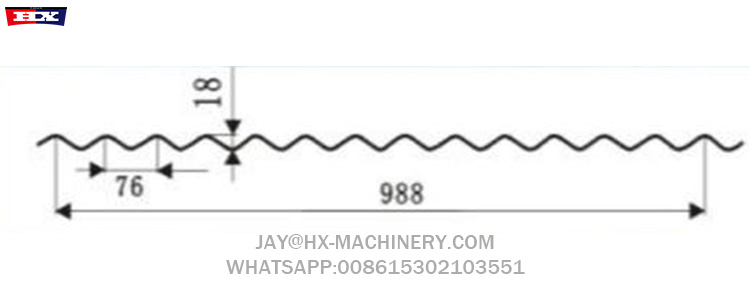

Corrugated Sheet Roll Forming Machine 988 Profile
The 988 Profile corrugated roll former is engineered for the precise production of corrugated metal sheets. It ensures minimal material waste and consistent results with every run. The advanced automation system enhances productivity, reduces labor costs, and ensures a smooth, reliable operation. Built with robust components, the machine offers long-lasting performance with low maintenance needs. Ideal for large-scale roofing and construction, it provides a cost-effective solution for corrugated sheet production.
Corrugated Sheet Roll Forming Machine 988 Profile
Detail
Corrugated Sheet Roll Forming Machine 988 Profile
|
No.
|
Corrugated Sheet Roll Forming Machine 988 Profile
|
|
|
1
|
Suitable to process
|
GI/GL, PPGI/PPGL
|
|
2
|

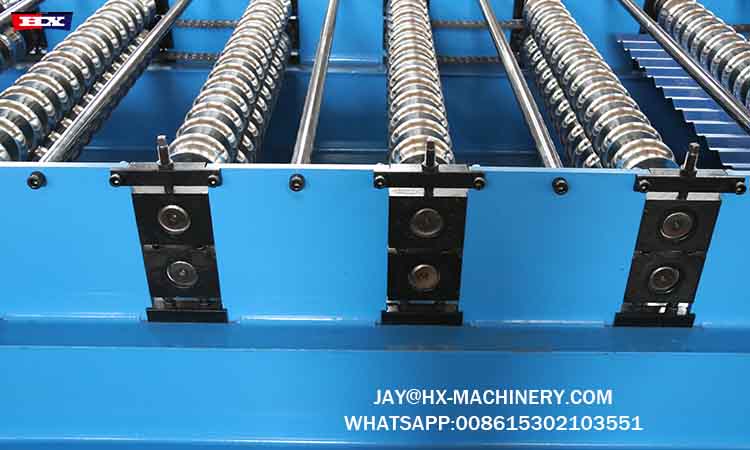

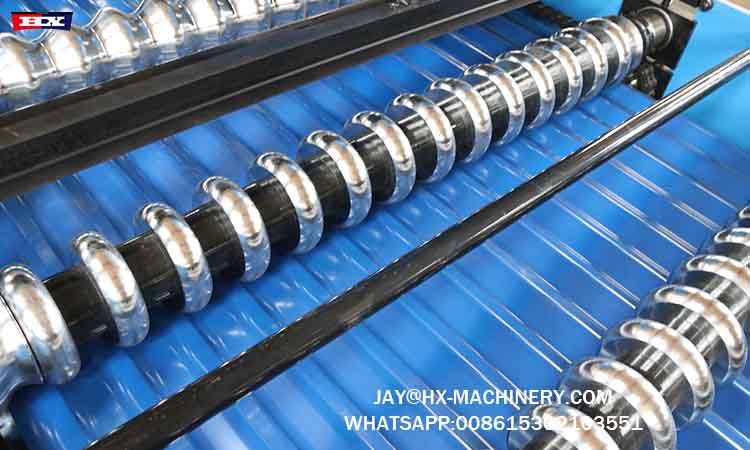

Roller
|
13 Rows
|
|
3
|
Dimensions
|
10*1.6*1.8m
|
|
4
|
Motor Power
|
5.5Kw(customized)
|
|
5
|

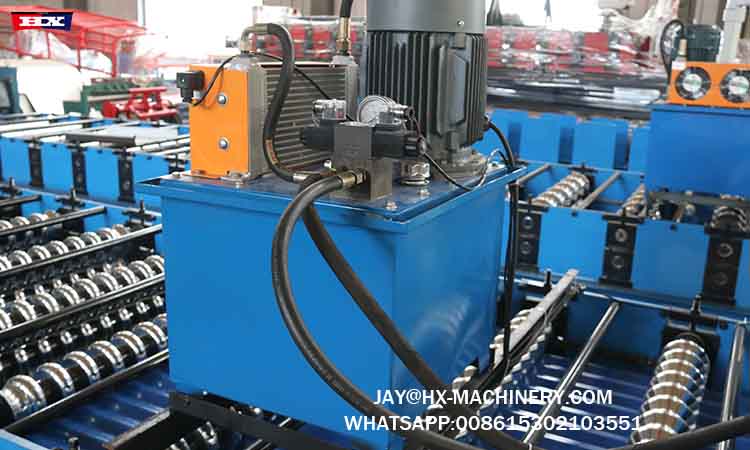

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.25-0.8mm
|
|
7
|
Productivity
|
8-15m/min(customized)
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 7800kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 60Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
