Model：HX-988
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

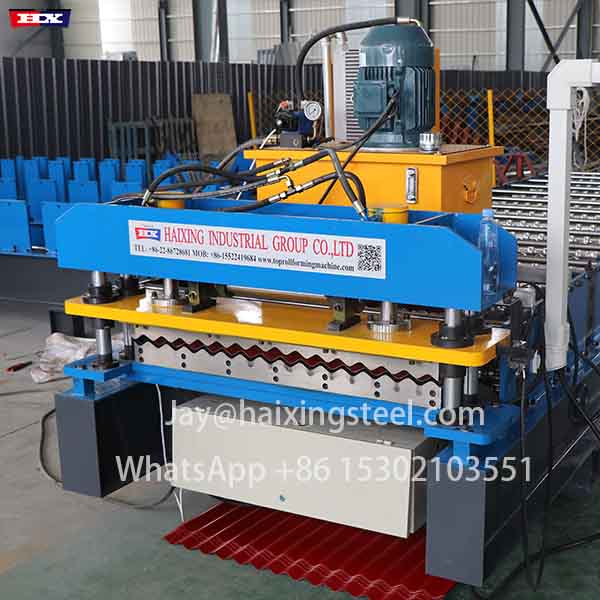

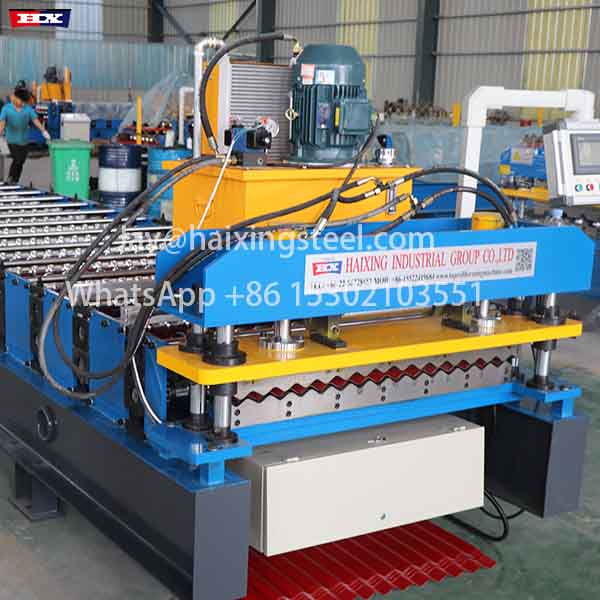

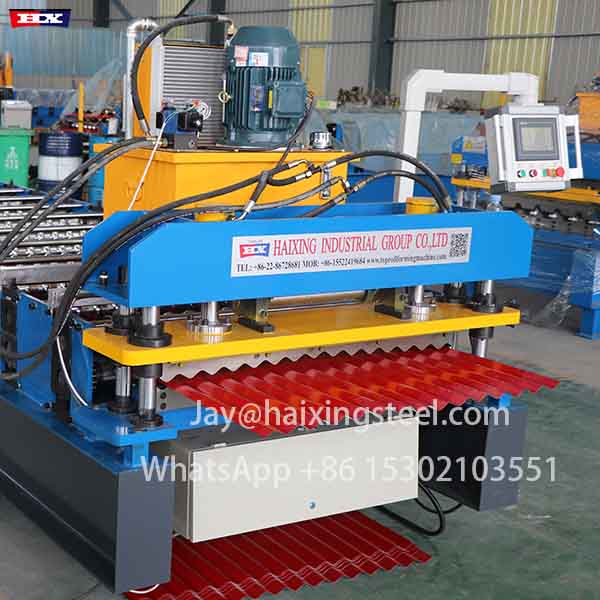

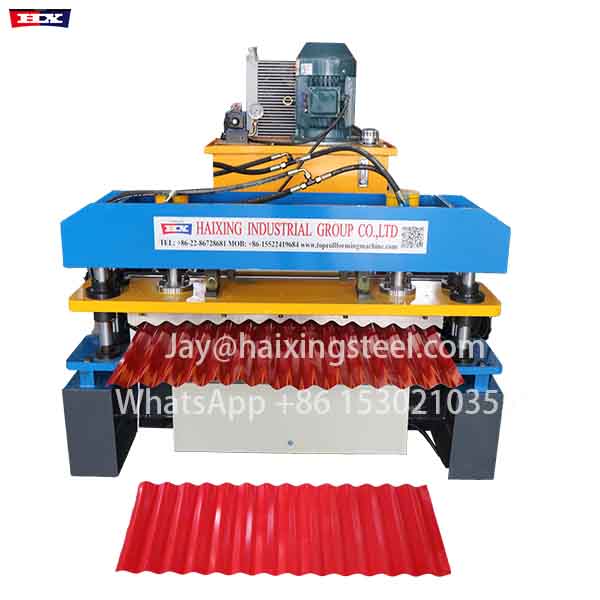

1064-Corrugated roll forming machine
This series of corrugated board forming equipment offers a variety of models to choose from. The roof panels it produces are widely used in various industrial plants, civil buildings and ancillary facilities construction, featuring exquisite appearance and long service life.
Detail
|
No.
|
Corrugated sheet rolling machine-988
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4300kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: What is our core competitiveness?
1. With 28 years of industry experience (founded in 1996), we have always led the technological innovation of roof roller pressing equipment.
2. High-end customized services, providing personalized solutions throughout the entire process from design to production.
3. Outstanding cost performance, offering top-notch performance at reasonable prices.
4. A global service network, with products exported to over 150 countries.
Q: What does pre-sales support include? Global customers witness together.
We offer professional one-stop pre-sale services: • Personalized solution design services • Professional technical parameter configuration guidance • Complete delivery process description • Issuance of business invitation letters. Welcome to visit our factory for on-site inspection. Q: What are the
