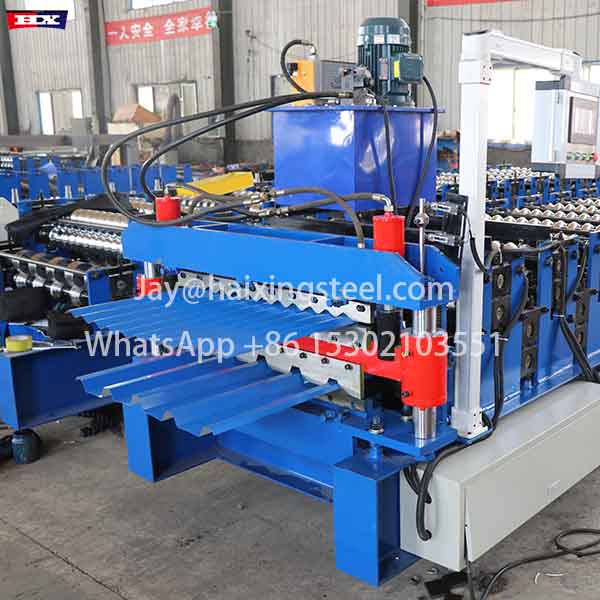

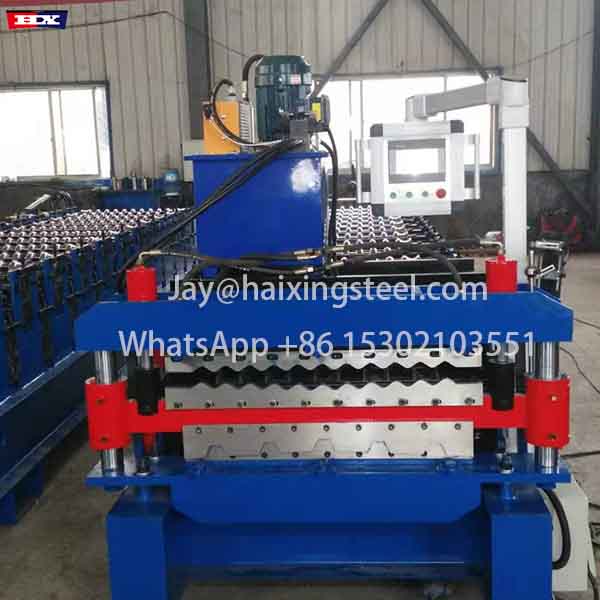

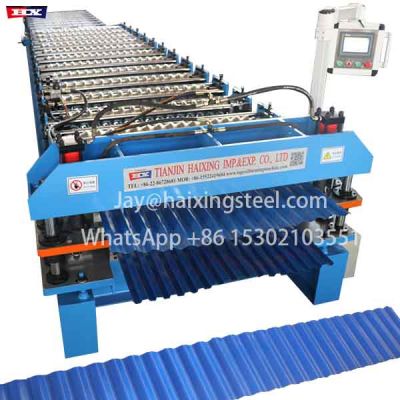

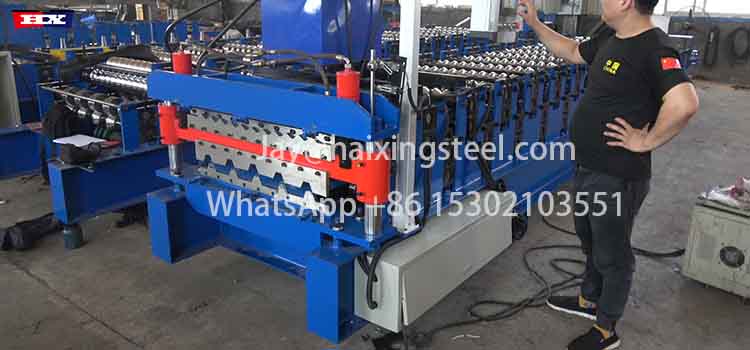

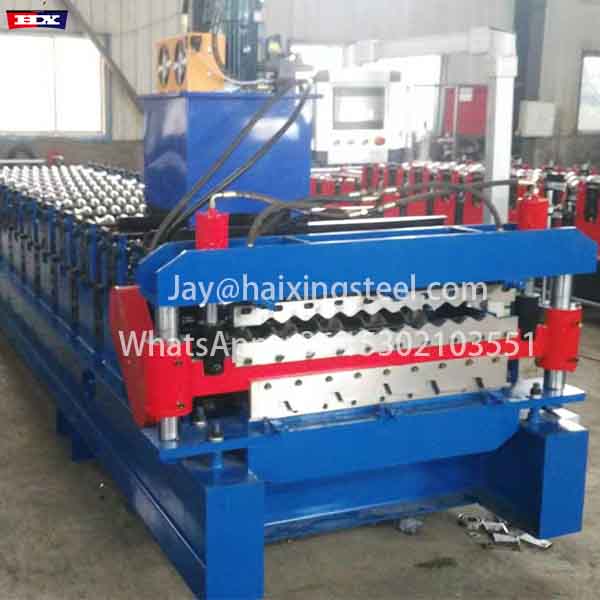

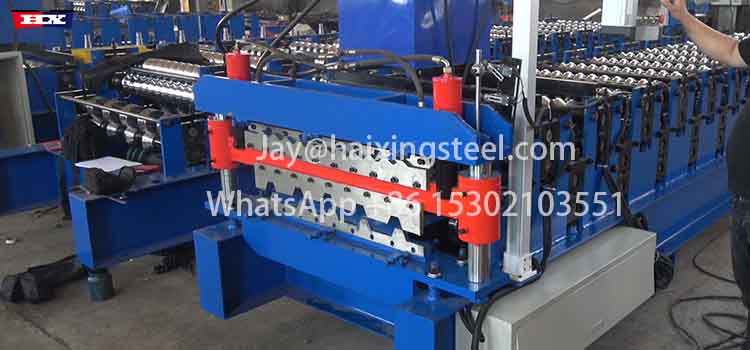

double layer roll forming machine IRB

Product ID : HX-double layer

Product Attributes :

Delivery time: 25-35 days

Model: double layer roll forming machine

Payment: 30% T/T deposit, 70% balance before shipment

Voltage: 22V 50HZ 1 phase or as per customer needs.

Product Description

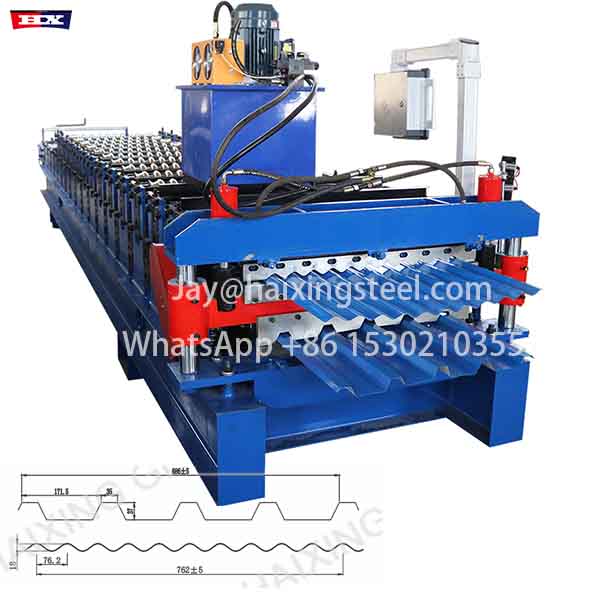

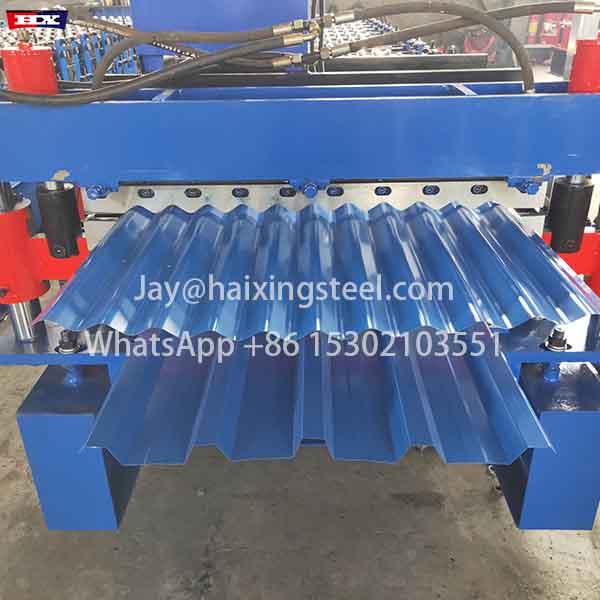

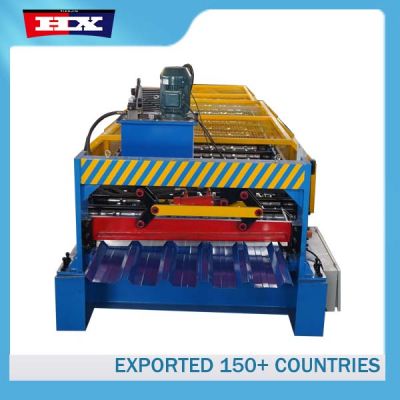

The IBR double-layer tile press machine is a highly efficient and intelligent metal roof/wall panel forming equipment, specially optimized for IBR panel types (corrugated panels specifically designed for industrial building roofs), and is also compatible with the production of various trapezoidal panels. It adopts a double-layer structure design, enabling rapid mold changing and dual-mode production, significantly enhancing production efficiency.

Detail

double layer roll forming machine IBR：

1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25-35 working days after deposit receipt your payment
3. Guarantee period: 24 months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.

double layer roll forming machine IBR
1	Suitable to process	Color alu-zinc steel coil

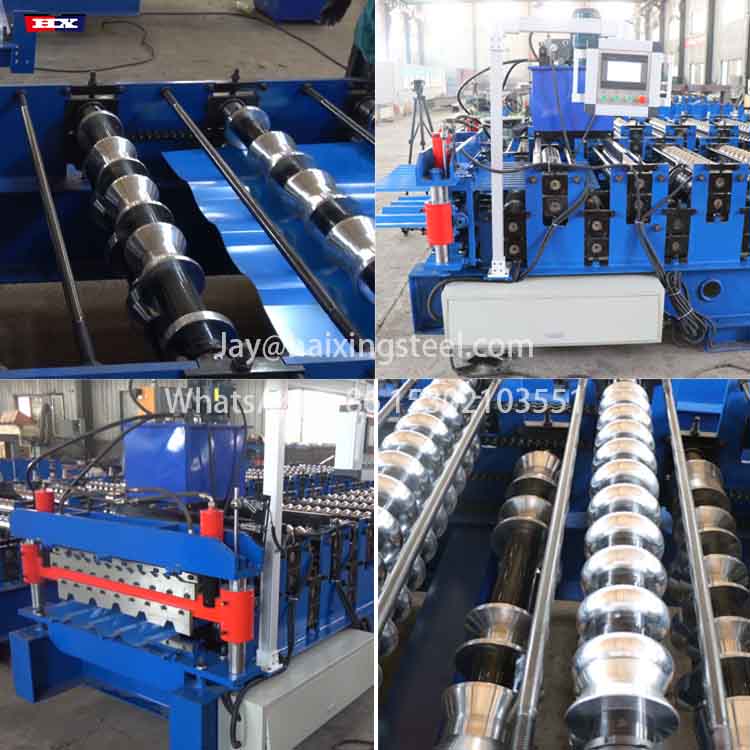

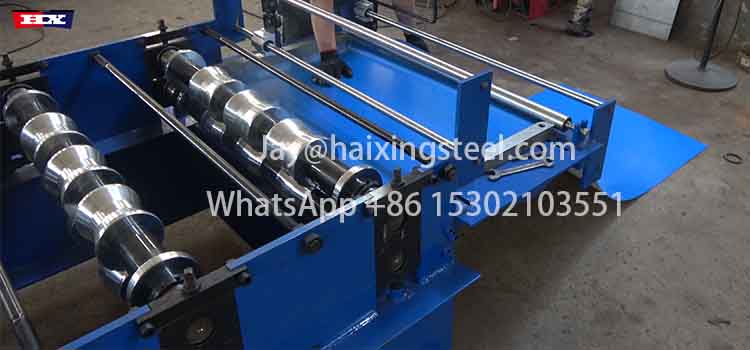

2	Roller	AG Panel : 12 Rows R panel/Pbr Panel :15Rows
3	Dimensions	7.61.61.7m
4	Motor Power	5.5Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ70mm
10	Weight	About 5500kgs
11	Main structure of the machine	350H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	220V 50Hz 1phases or as customer’s need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

FAQ:

Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
