double layer roofing sheet roll forming machine5V+762

Product ID : HX-5v+762

Product Attributes :

Delivery time: 25-35days

Model:double layer roofing sheet roll forming machine5V+762

Payment Method: 30% T/T

deposit, 70% balance before shipment Voltage: 380V 50HZ 3-phase or as per customer requirements Warranty: Mechanical warranty for 2 years

Product Description

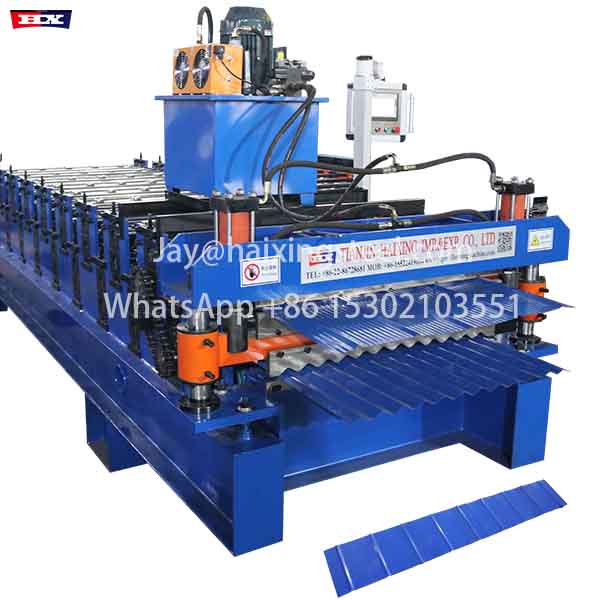

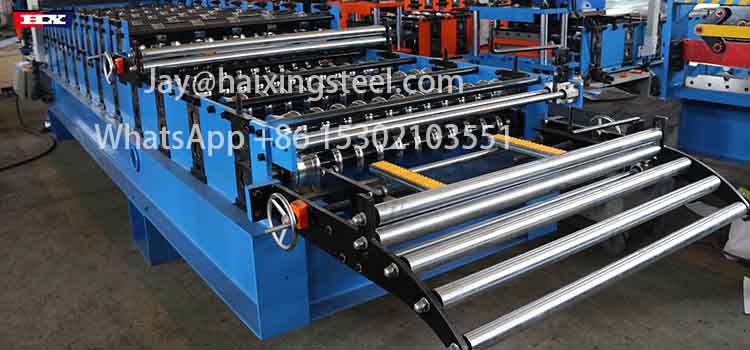

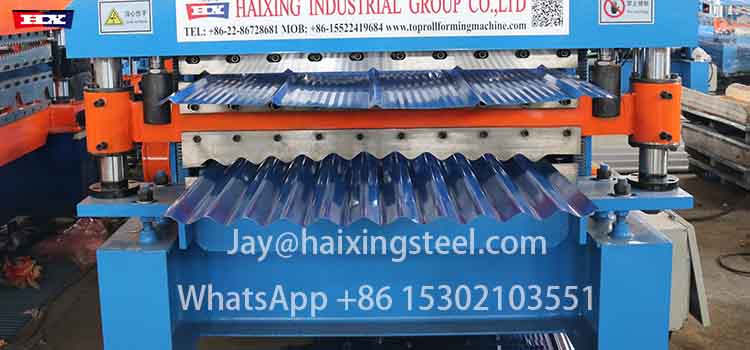

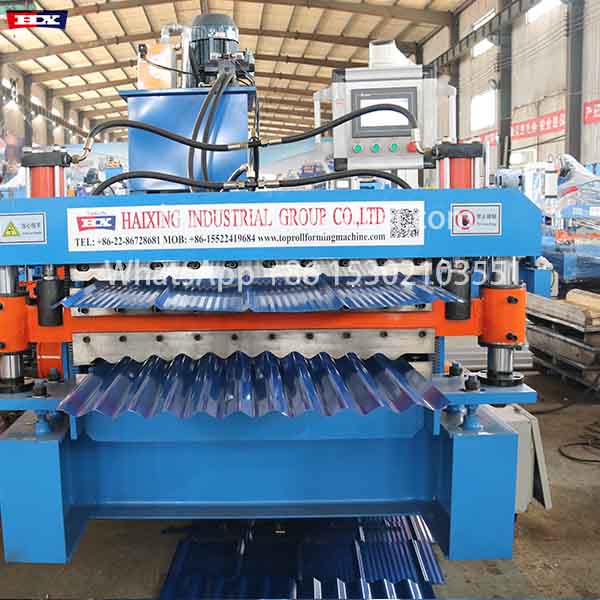

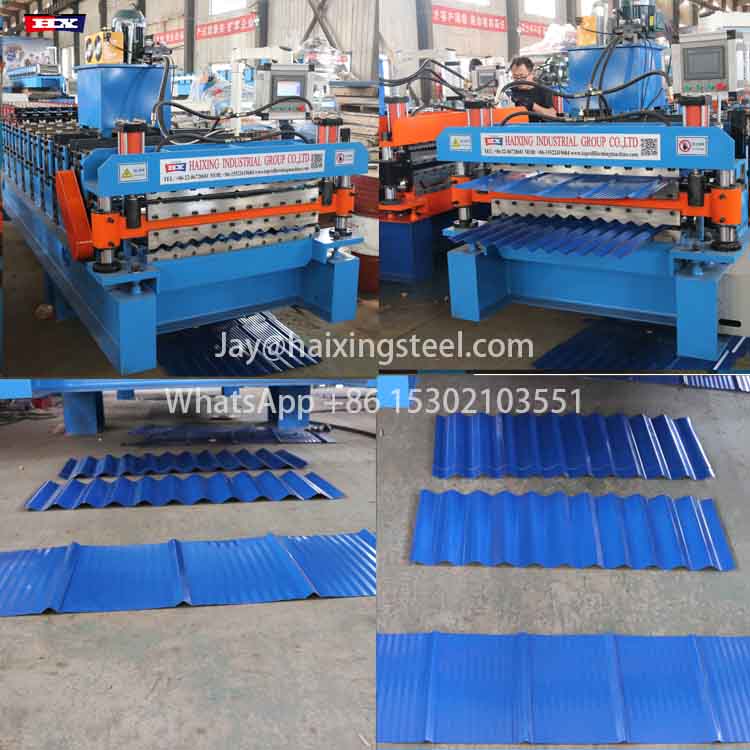

Bouble layer roofing sheet roll forming machine5V+762

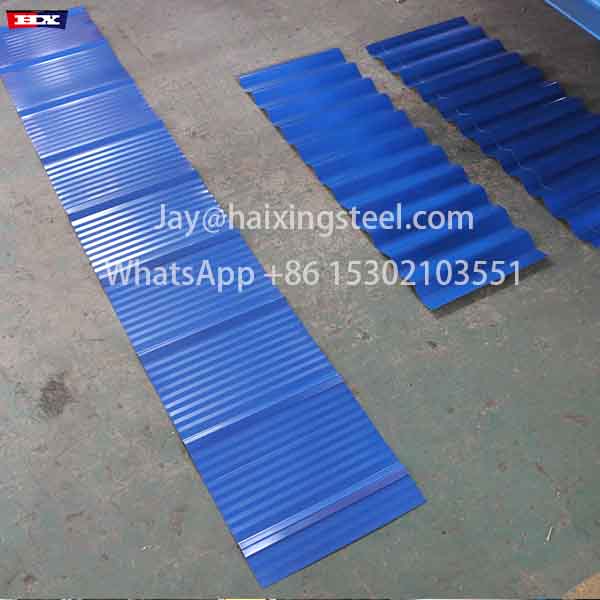

The price of roof tile production equipment varies according to different types and can be used to process corrugated boards and 5v+762. This type of roof panel is widely used in industrial plants, civil buildings and ancillary facilities. It not only has an exquisite appearance but also is durable.

Detail

Double-layer tile forming equipment - After-sales service guarantee and quality guarantee

The equipment comes with a 2-year warranty and offers lifetime technical support and supply cycle

The equipment delivery service scope will be completed within 25 working days after the payment is confirmed

We offer 24 months of free maintenance service (including parts and labor).

Optional technical guidance is available for paid maintenance services throughout the entire life cycle of the equipment

Customers who come to the factory for machine inspection can enjoy:

Professional engineers provide on-site installation guidance

One-on-one practical training for operators

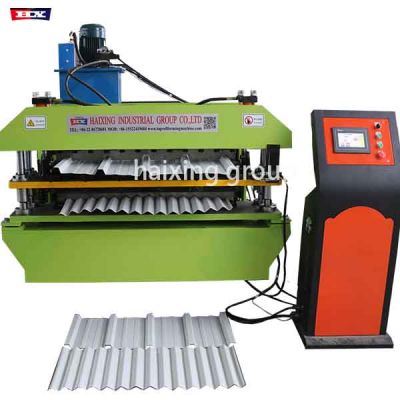

double layer roof tile making machine
1	Suitable to process	Color alu-zinc steel coil

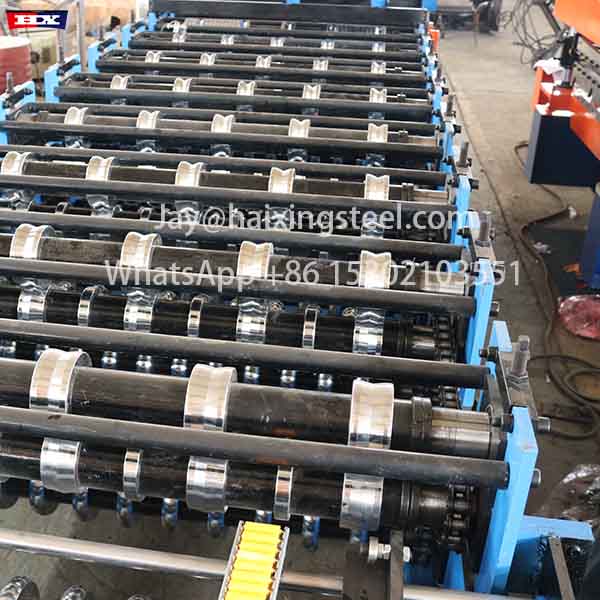

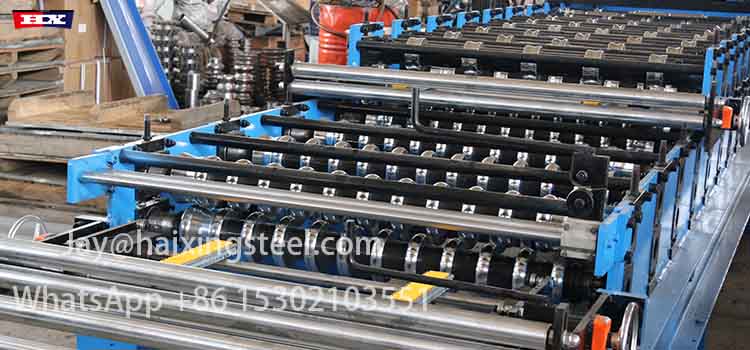

2	Roller	planchas 5v zincalum:11Rows zinc acanalado:13Rows
3	Dimensions	6.51.61.7m
4	Motor Power	5.5Kw

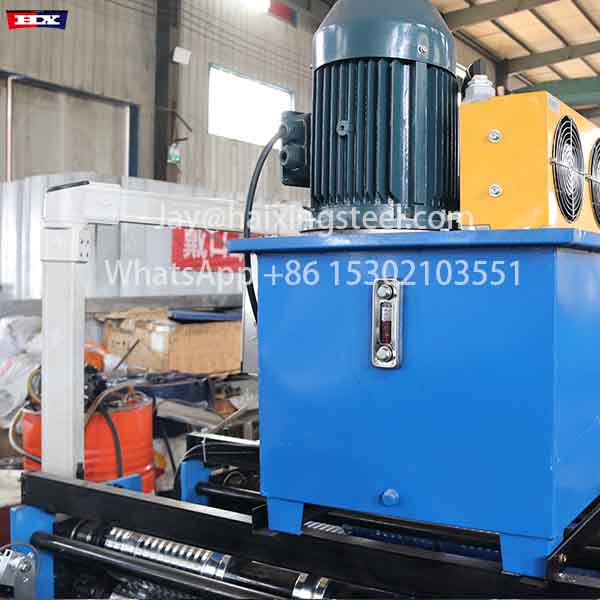

5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ70mm
10	Weight	About 4500kgs
11	Main structure of the machine	350H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer’s need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

FAQ:

Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
