Model：HX-glazed
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to useroduction more worry-free
Glazed roll forming machine manufacturers
The is designed for shaping curved glass with high accuracy. It utilizes adjustable rollers to form consistent arcs, ensuring uniform thickness and smooth surfaces for architectural and decorative applications
Detail
|
No.
|
Glazed roll forming machine manufacturers
|
|
|
1
|
Suitable to process
|

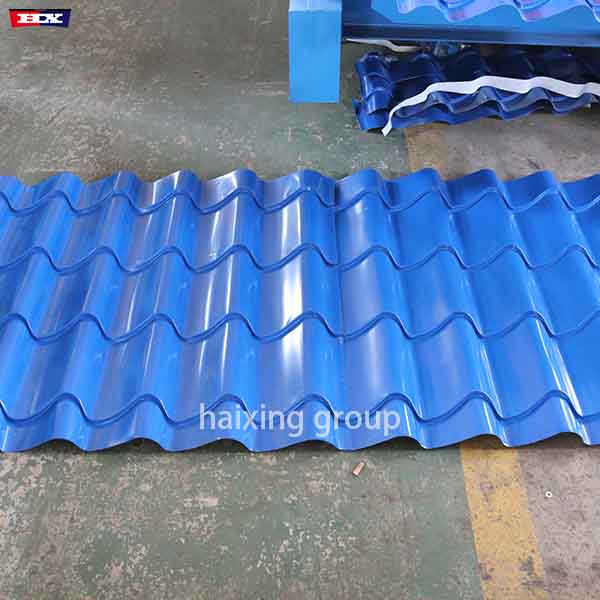

Color alu-zinc steel coil
|
|
2
|

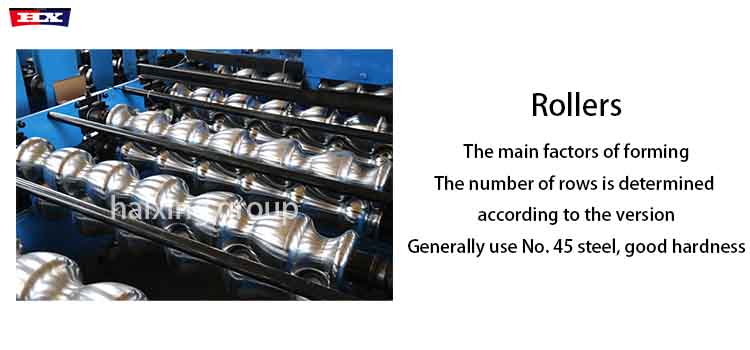

Roller
|
11-13Rows
|
|
3
|
Dimensions
|
5.8*1.55*1.6m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|

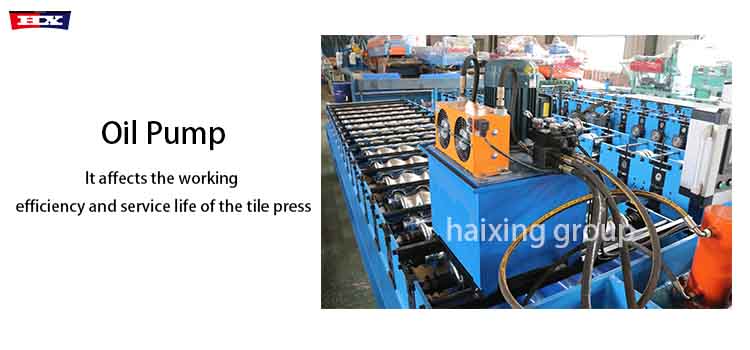

Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 3200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
