Develivery time:25-35 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp: 008615302103551
E-mail: Jay@hx-machinery.com

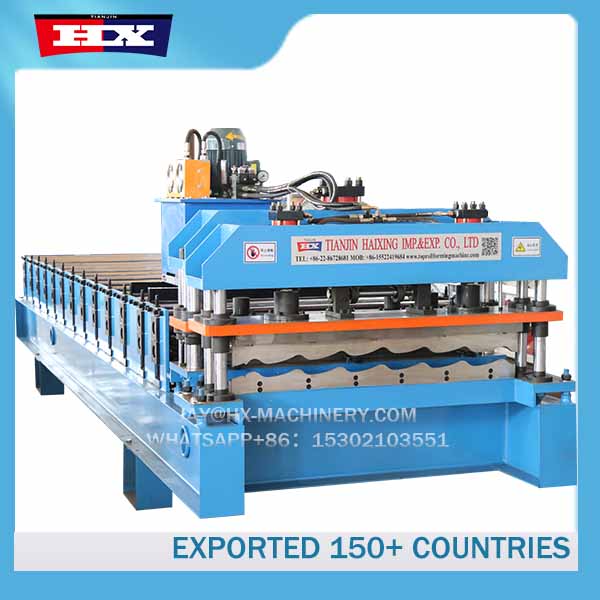

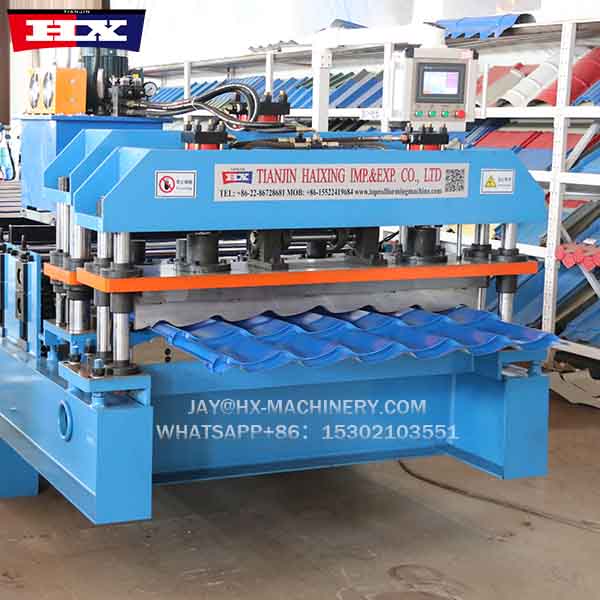

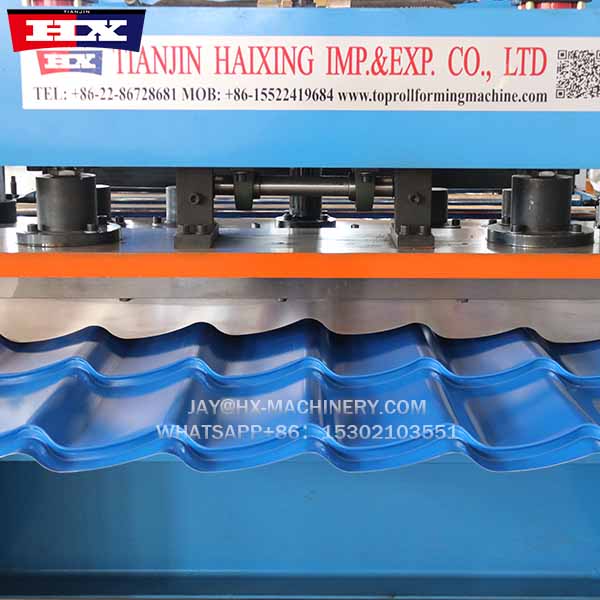

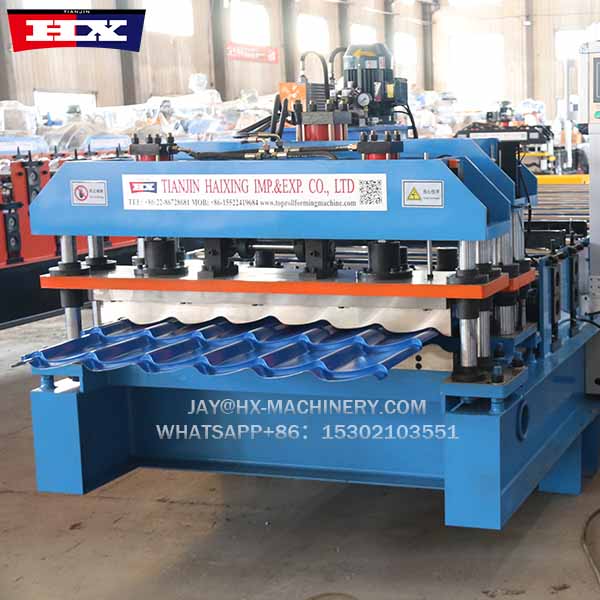

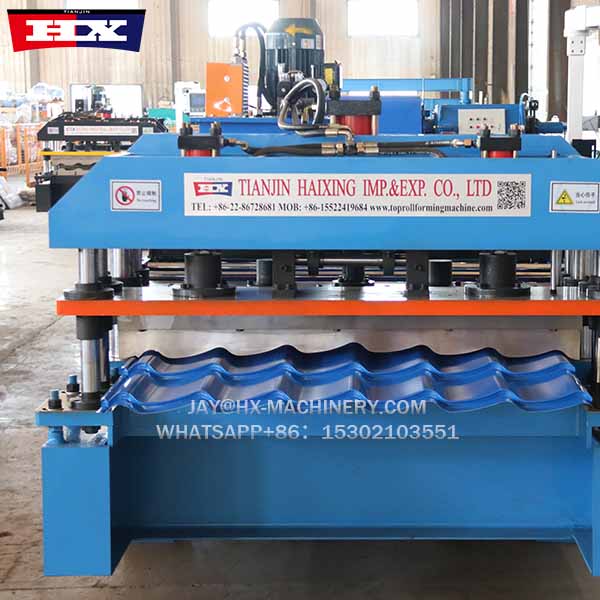

1100 glazed tile roof sheet roll forming machine
The 1100 glazed tile roof sheet roll forming machine is designed for fast, high-precision production of glazed roof tiles. It minimizes material waste and ensures smooth, consistent tile profiles. With its automated control system, the machine guarantees quality and reduces human error. The durable design ensures long-lasting performance, while the easy-to-operate interface and low maintenance make it an ideal choice for large-scale roofing projects. Its versatility and efficiency make it perfect for industrial and commercial applications.

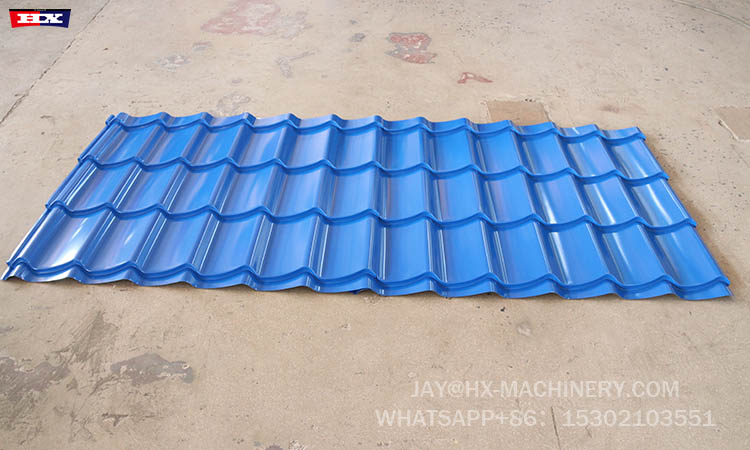

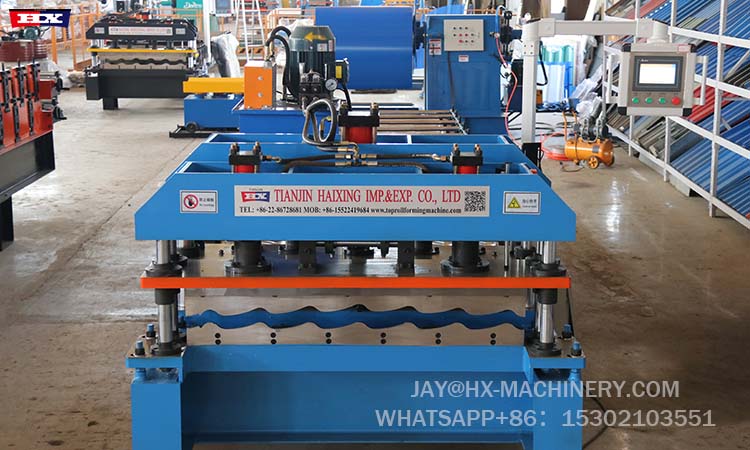

1100 glazed tile roof sheet roll forming machine Detail
1100 glazed tile roof sheet roll forming machine
|
No.
|
1100 glazed tile roof sheet roll forming machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.85*1.65*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|

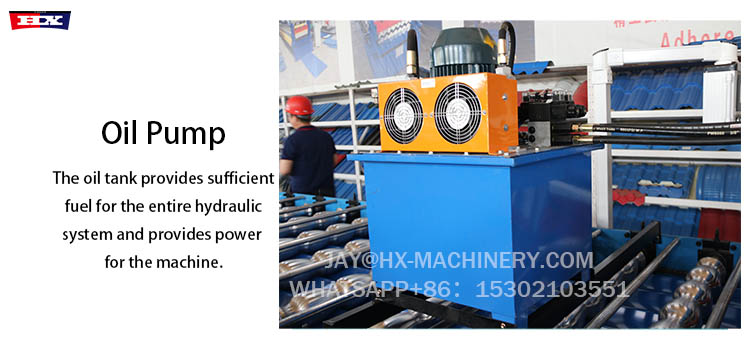

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4500kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|

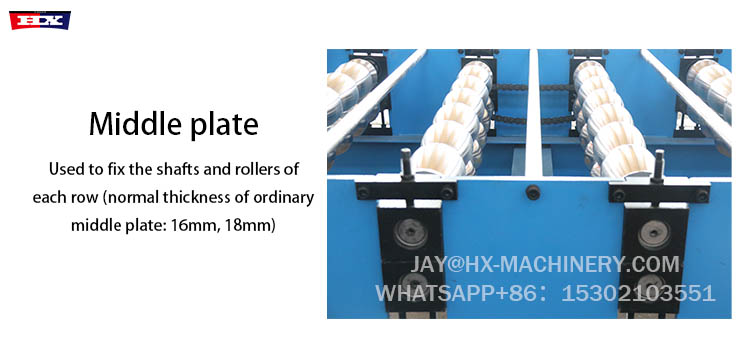

Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
