Roof and wall cladding: ◦ Production of trapezoidal profiles commonly found in industrial, commercial and agricultural buildings.
Detail
Warranty & Support
2-year warranty with lifetime technical support for the equipment.
Delivery Time
Machines are delivered within 25 days after payment confirmation.
Service Coverage
24 months of free service (spare parts & labor).
Paid service available throughout the machine’s lifespan.
Installation & Training
If buyers inspect the machine at our factory, we provide:
On-site installation guidance.
Hands-on training for operators/technicians.
|

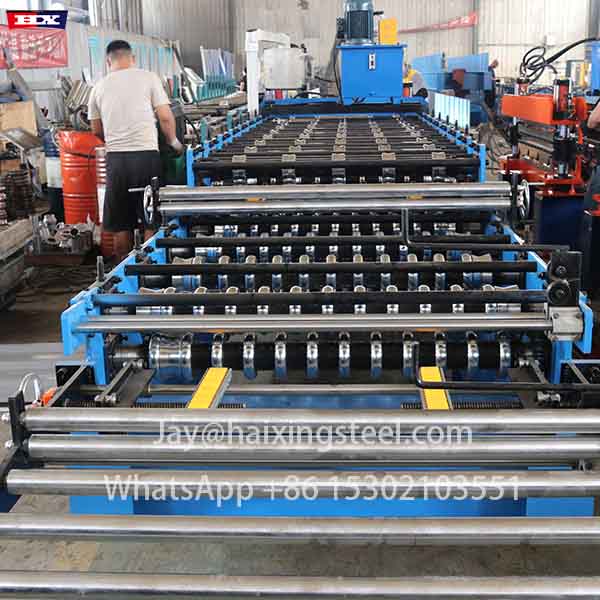

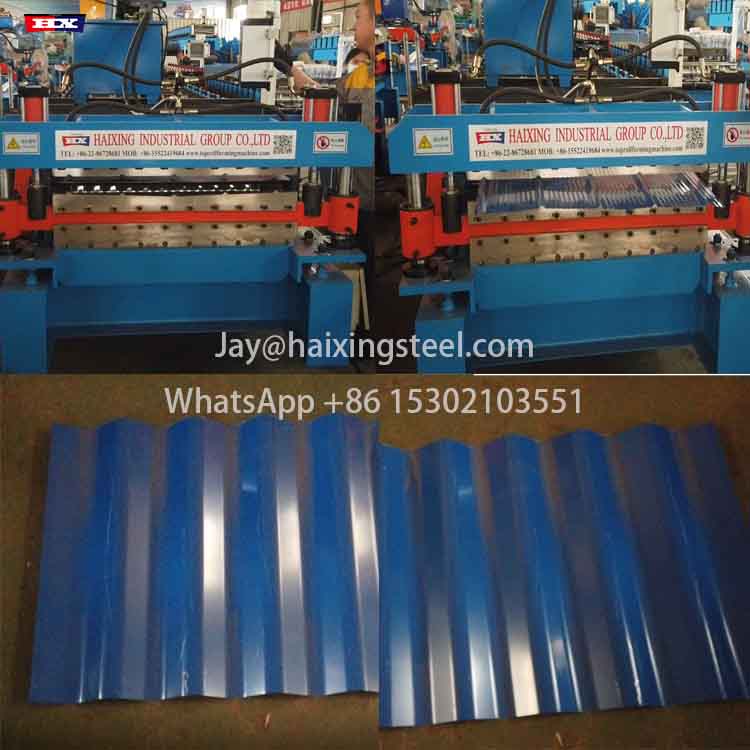

double layer roof tile making machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
planchas 5v zincalum:11Rows zinc acanalado:13Rows
|
|
3
|
Dimensions
|
6.5*1.6*1.7m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|

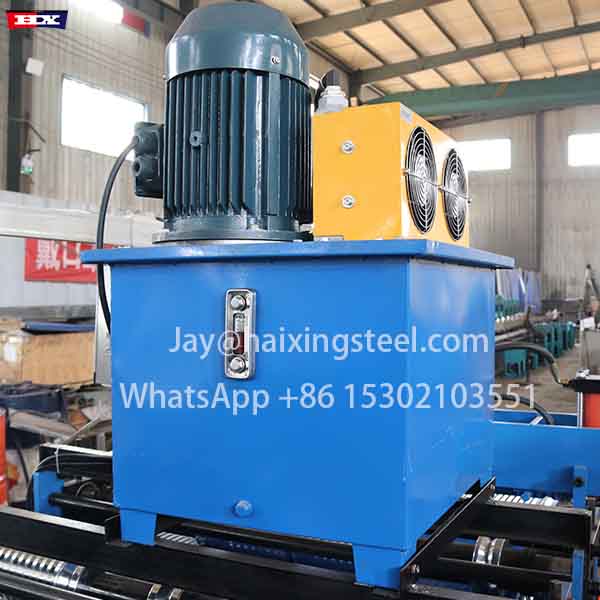

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|

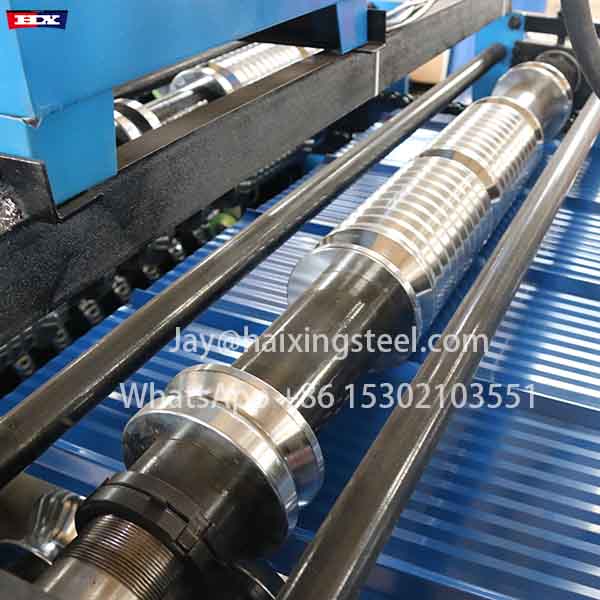

Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4500kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
