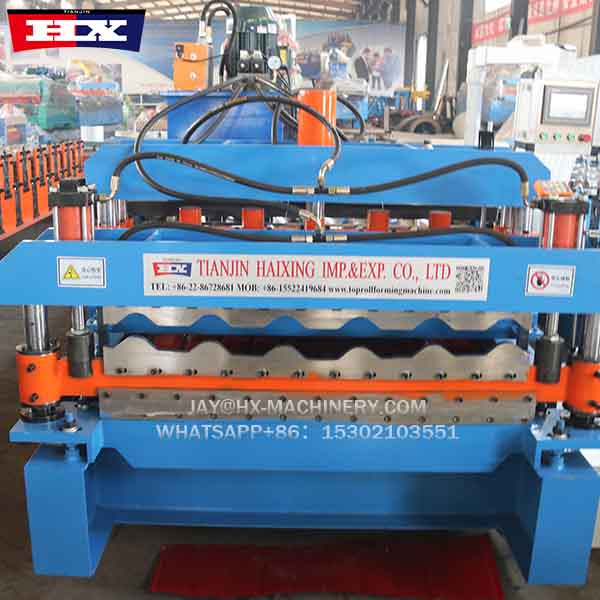

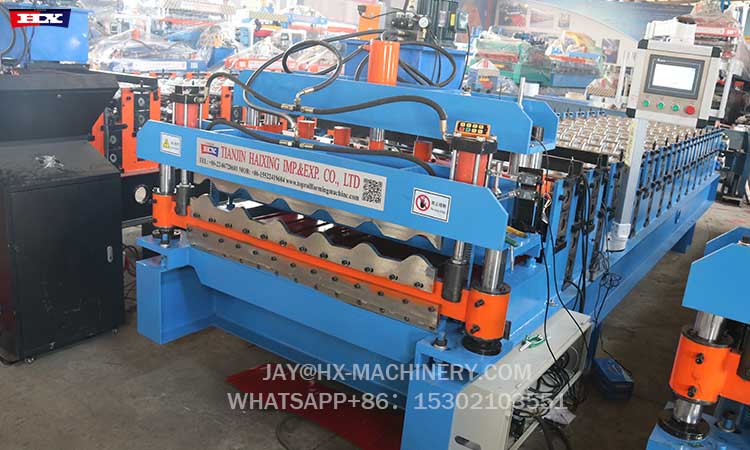

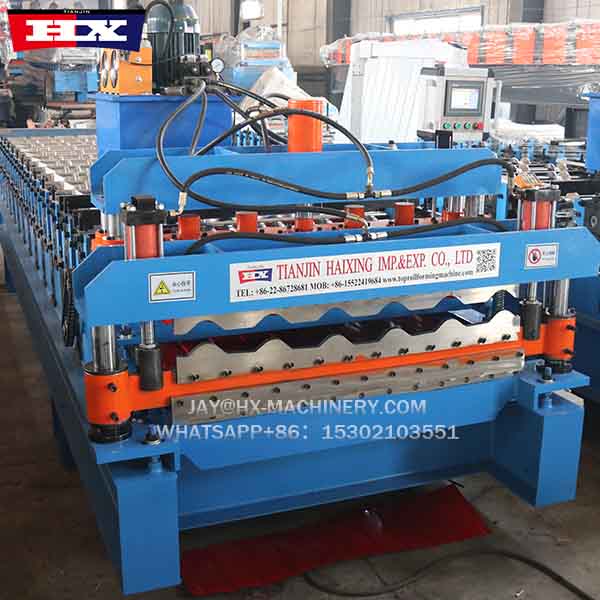

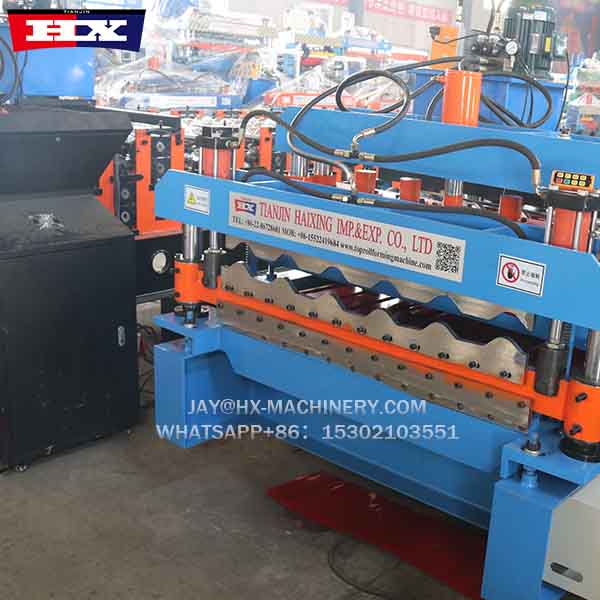

1178 roll forming metal roofing machines
The 1178 roll forming metal roofing machine ensures fast, high-quality metal sheet production with precise dimensions. Its robust design minimizes downtime and material waste, while offering excellent energy efficiency. Perfect for large and continuous roofing operation
1178 roll forming metal roofing machines
Detail
1178 roll forming metal roofing machines
|

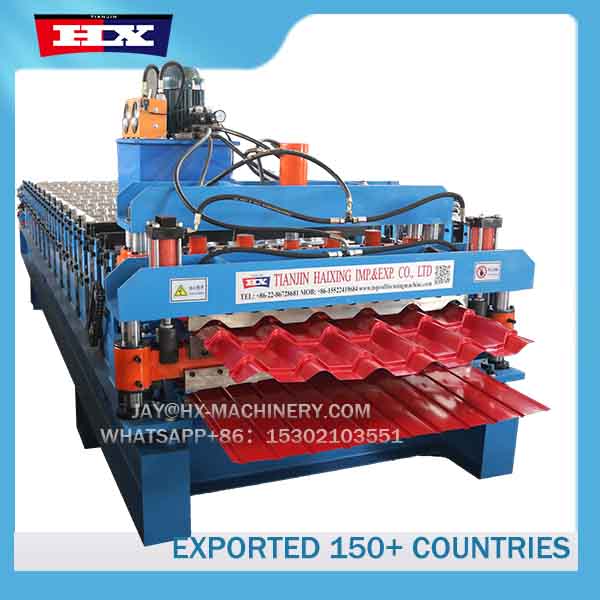

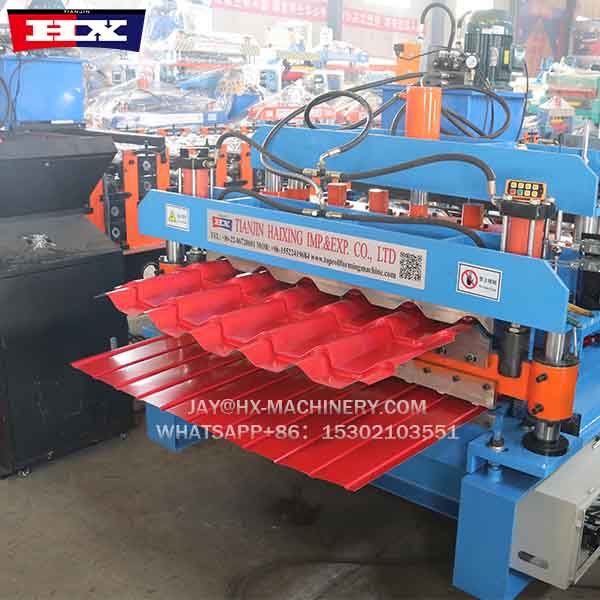

double layer roll forming machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

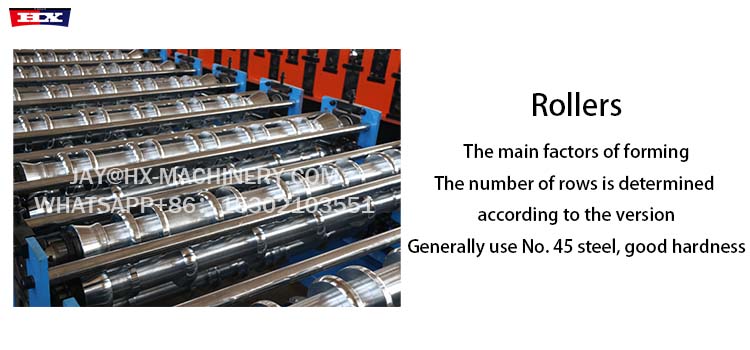

Roller
|
Trapezoid:15 Rows,13Rows
|
|
3
|
Dimensions
|
7.75*1.65*1.7m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 7800kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|

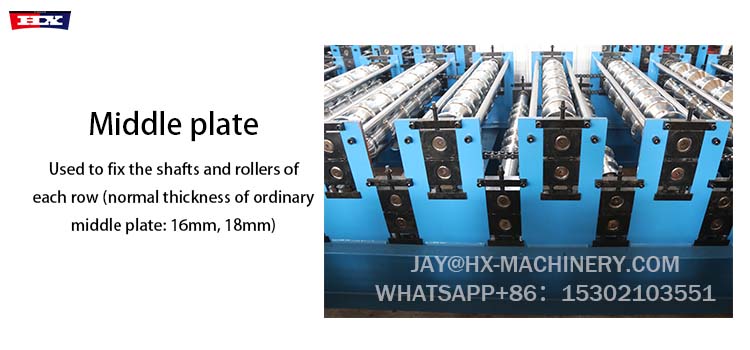

Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 50Hz 1phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
double layer roll forming machine IBR：
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25-35 working days after deposit receipt your payment
3. Guarantee period: 24 months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
