Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

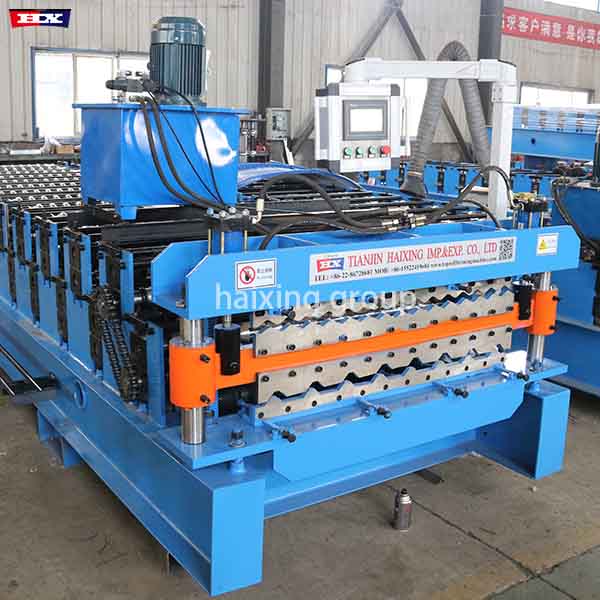

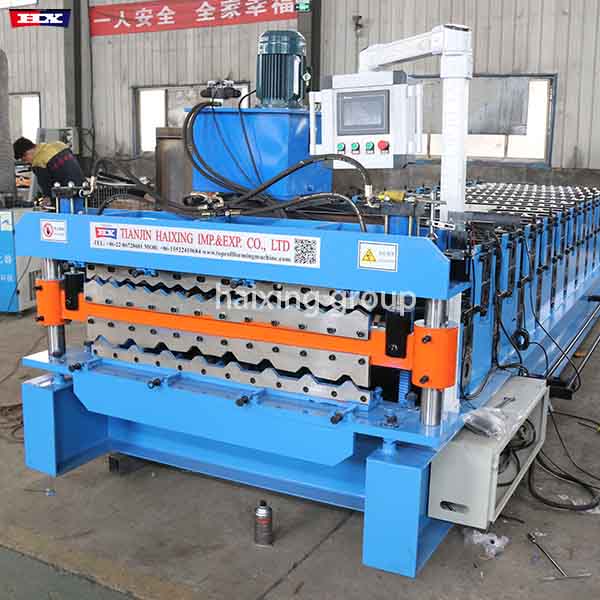

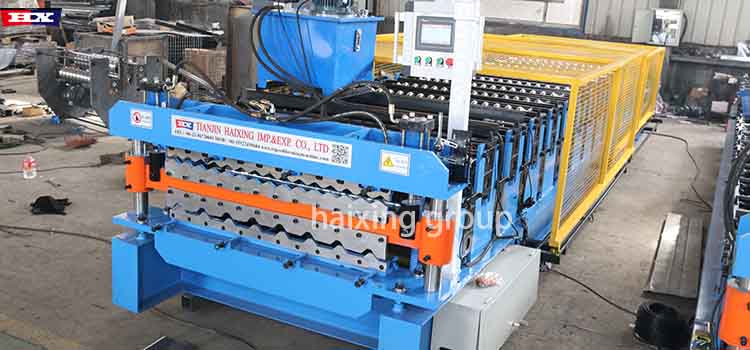

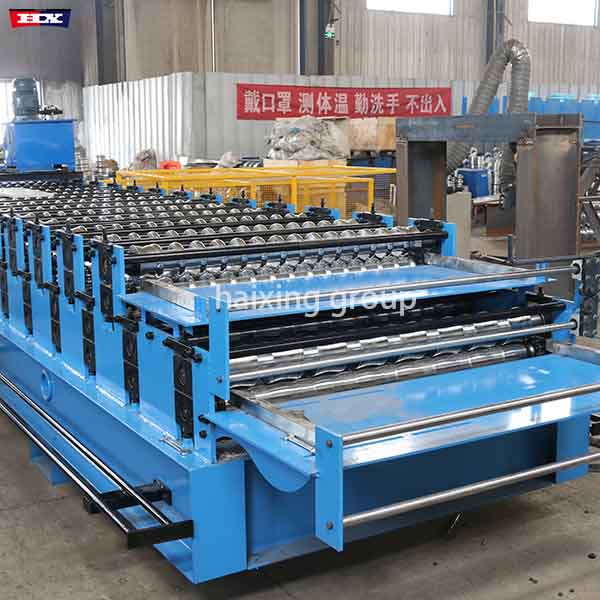

Double iron sheet making machine

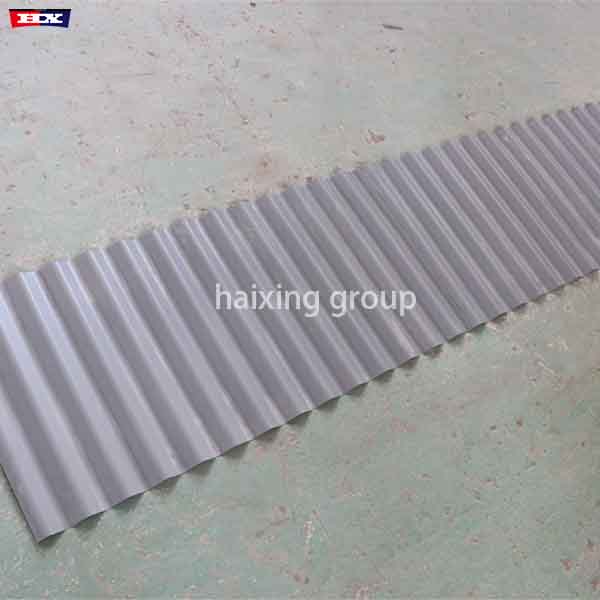

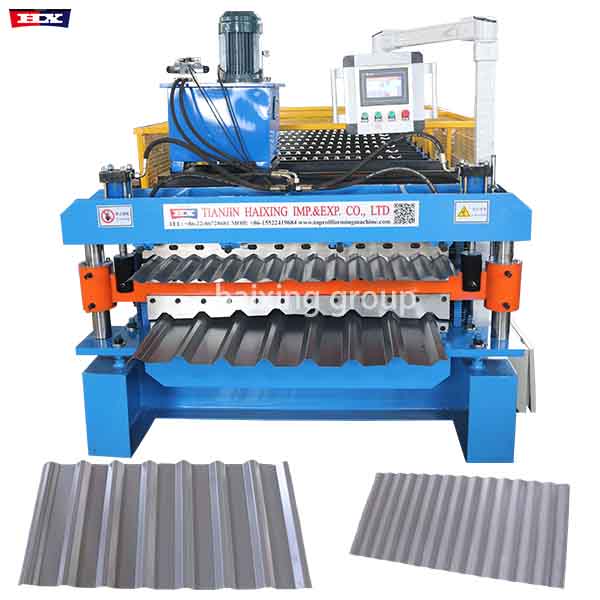

The double-layer trapezoidal corrugation roll-forming machine is a highly efficient machine specialized in the production of composite metal roofing panels. Utilizing intelligent synchronous rolling technology, it precisely forms both upper and lower layers of trapezoidal corrugated panels in a single pass. Equipped with a high-precision servo control system, the machine ensures a perfect fit between the two layers, maintaining a forming tolerance of within ±0.3mm. The resulting double-layer trapezoidal composite panels offer exceptional structural strength (with 50% increased wind pressure resistance), excellent thermal and sound insulation, and 100% waterproofing, making them particularly suitable for large industrial plants, logistics warehouses, stadiums, and other structures. It supports processing a variety of materials, including 0.3-1.5mm thick galvanized steel sheets and color-coated steel sheets, making it an ideal production solution for modern metal roofing systems.

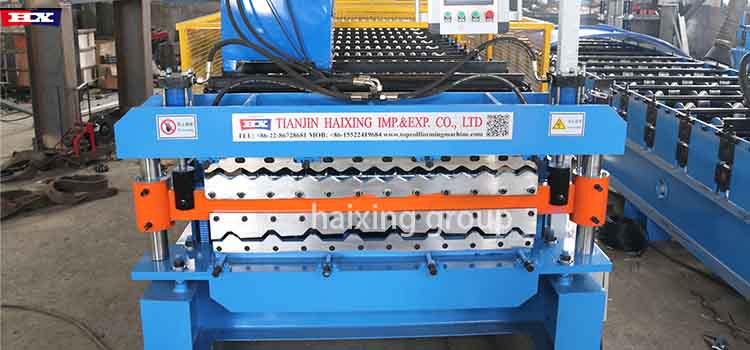

Detail
|

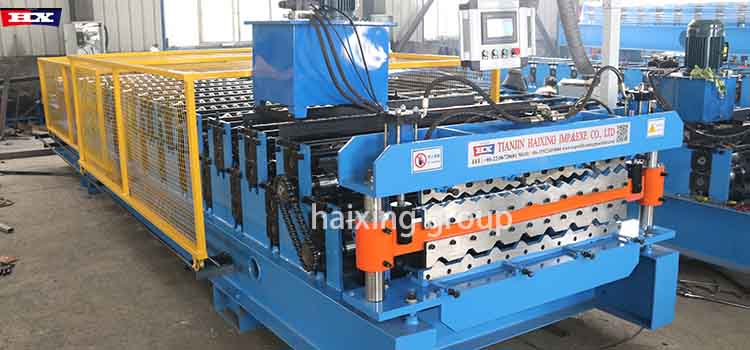

Double iron sheet making machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

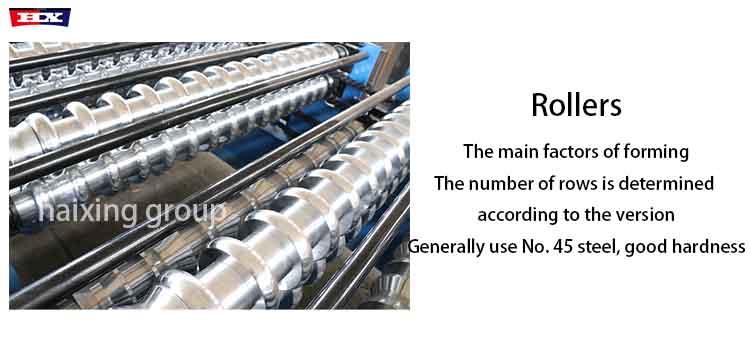

Roller
|
AG Panel : 13 Rows
R panel/Pbr Panel :15Rows
|
|
3
|
Dimensions
|
7.5*1.6*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|

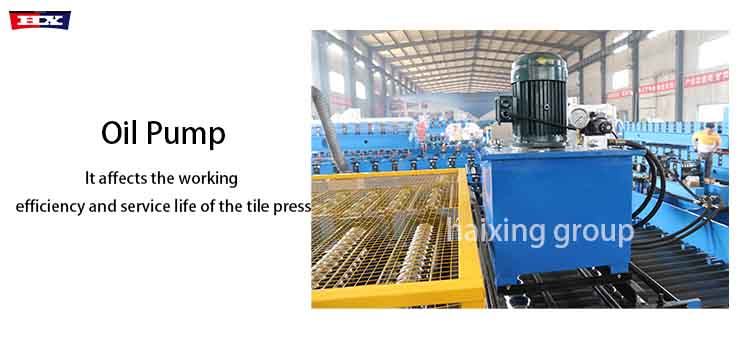

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 6000kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 50Hz 1phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
About us-TIANJIN HAIXING
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face
