Model：HX-glazed
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

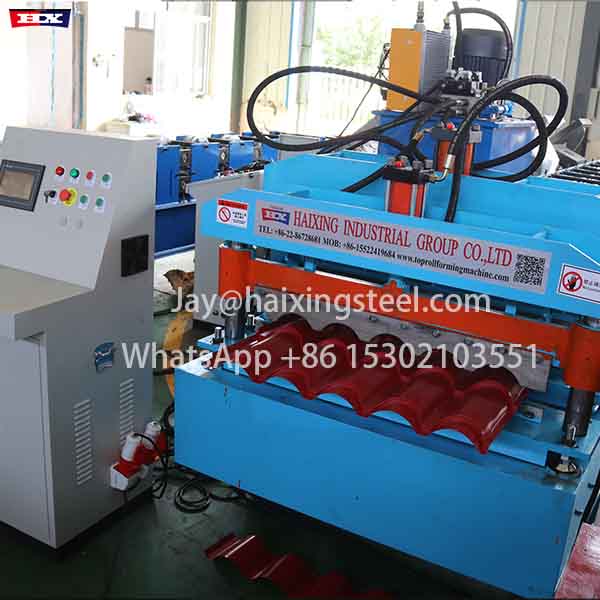

Glazed roof tile making machine
It is applicable to fields such as handicrafts, architectural decoration, and lighting manufacturing, helping enterprises expand their markets and enhance their competitiveness
Detail
|
No.
|

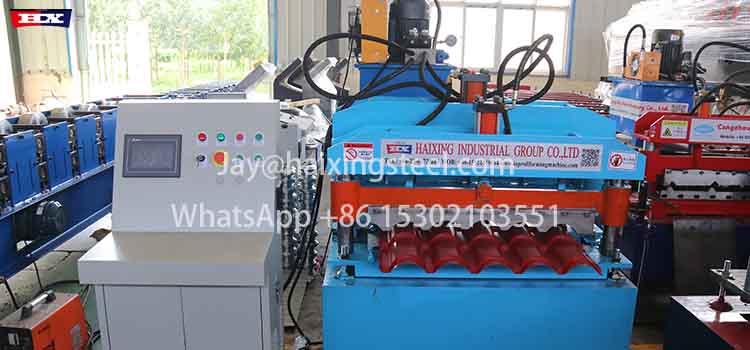

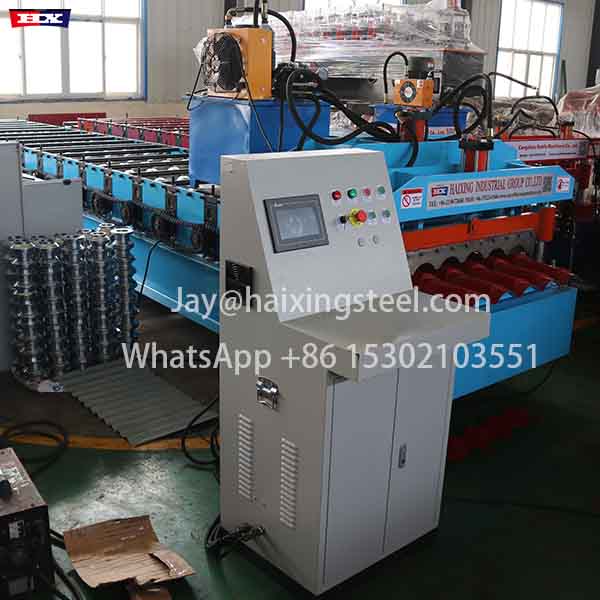

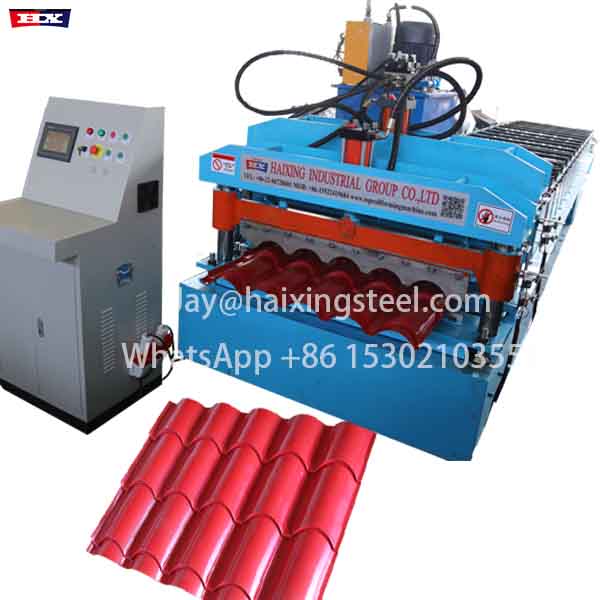

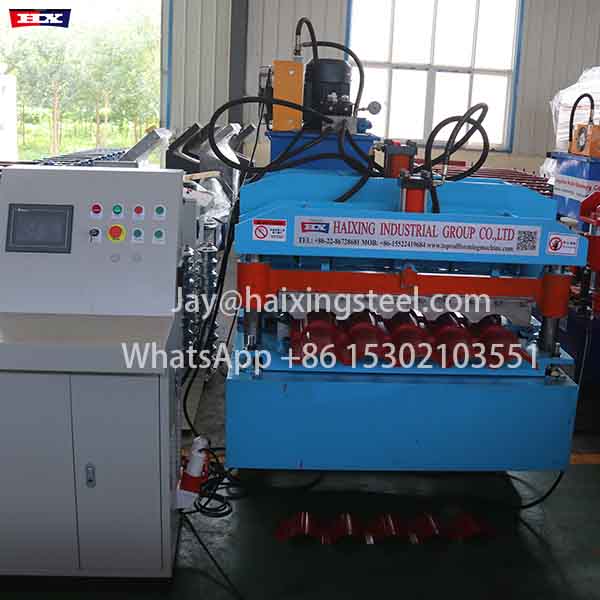

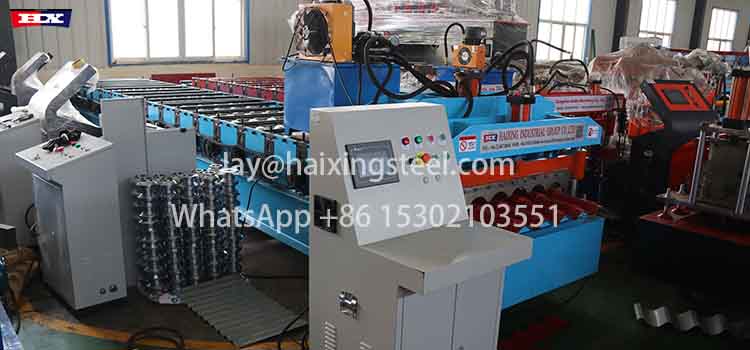

Glazed roof tile making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

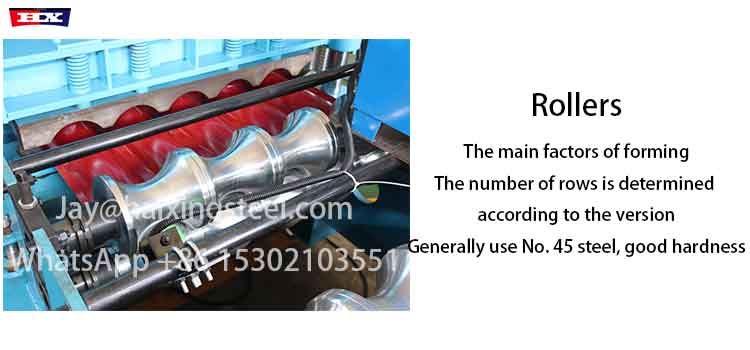

Roller
|
11-13Rows
|
|
3
|
Dimensions
|
5.8*1.55*1.6m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|

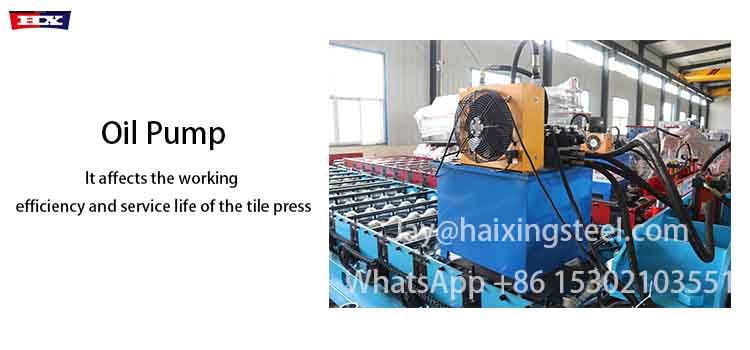

Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 3200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|

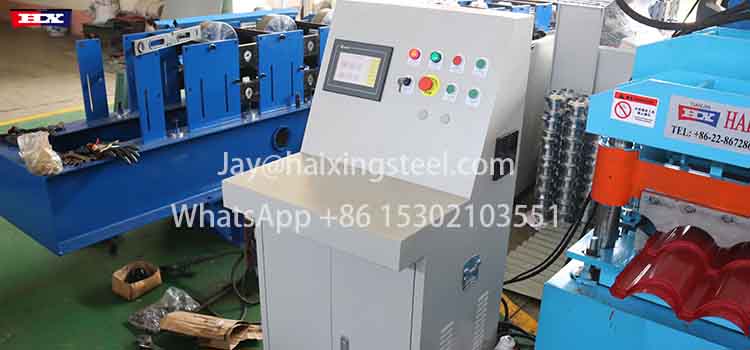

Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
TIANJIN HAIXING - Your Reliable Industrial Partner
• Comprehensive Warranty: 2-year protection with lifetime technical support
• Guaranteed Delivery: Within 25 days after deposit confirmation
• Service Commitment: 24 months free maintenance with lifetime service options
• Hands-on Training: Factory visits include equipment installation guidance and operator training
