Product Attributes :
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email:jay@hx-machinery.com
WhatsApp+86:15302103551
Corrugated roof profile corrugated making machine
Our CNC trapezoidal roof machine redefines manufacturing excellence. The heart of the system is a powerful CNC controller that synchronizes every operation, from high-speed servo punching of holes and notches to precision cutting, ensuring each panel is perfectly formed and dimensionally accurate. This eliminates human error and guarantees consistent, repeatable quality. Advantages include a drastic reduction in labor costs, minimal material waste, incredibly fast production speeds, and the flexibility to switch between different panel designs with simple program changes. Built with a heavy-duty frame and high-quality components, this machine is engineered for reliable, low-maintenance, and high-volume production, delivering a superior return on investment.

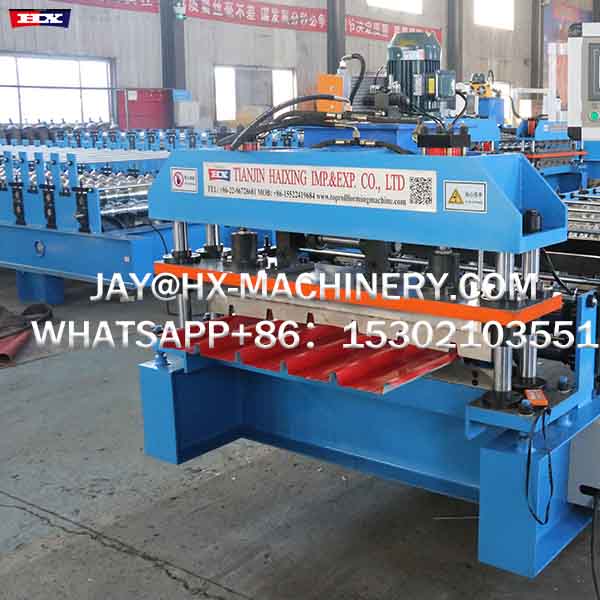

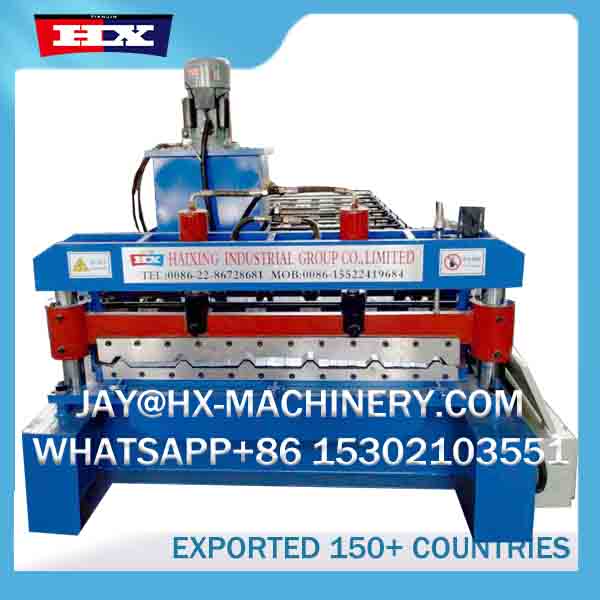

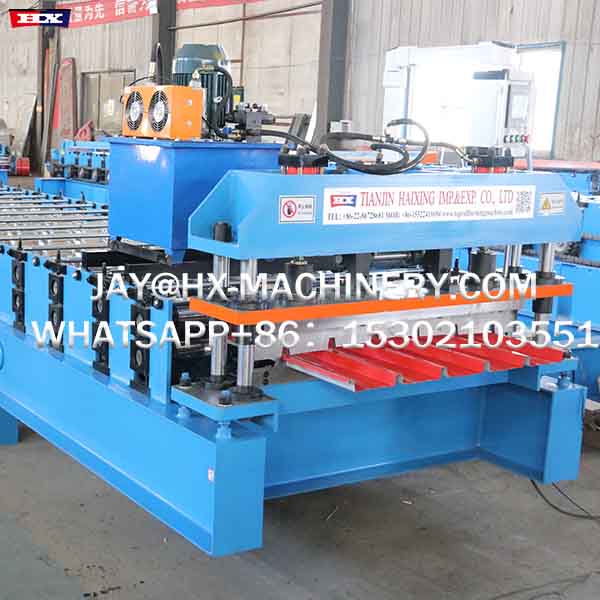

CNC trapezoidal roof machine
Detail
CNC trapezoidal roof machine
No.
|
CNC trapezoidal roof machine
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
2
|

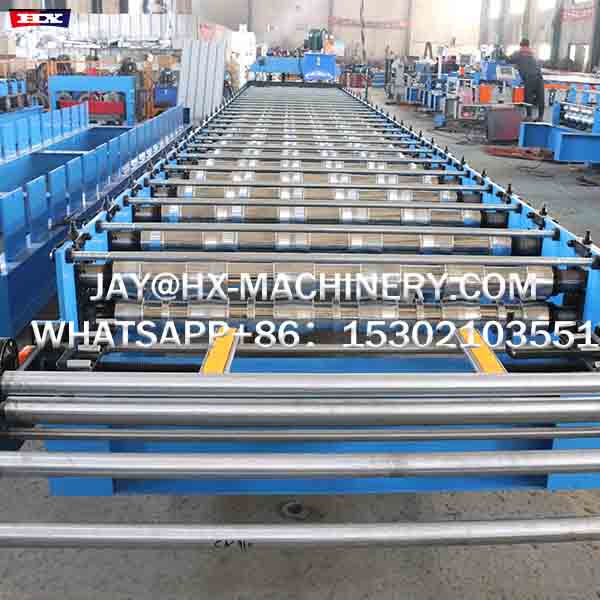

Roller
|
13 Rows
|
3
|
Dimensions
|
6.75*1.6*1.8m
|
4
|
Motor Power
|
4Kw
|
5
|

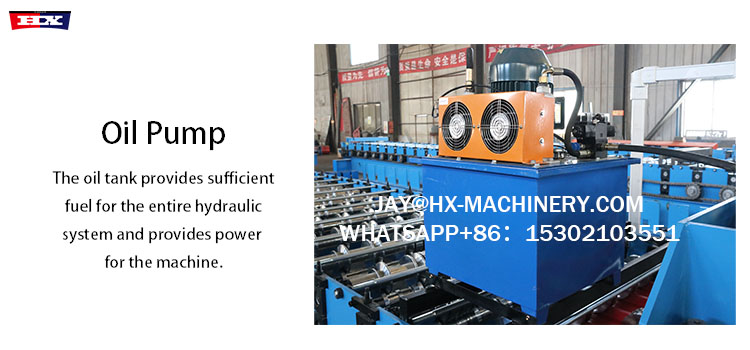

Pump Station Motor
|
4Kw.Lichao Brand
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
7
|
Productivity
|
10-15m/min
|
8
|

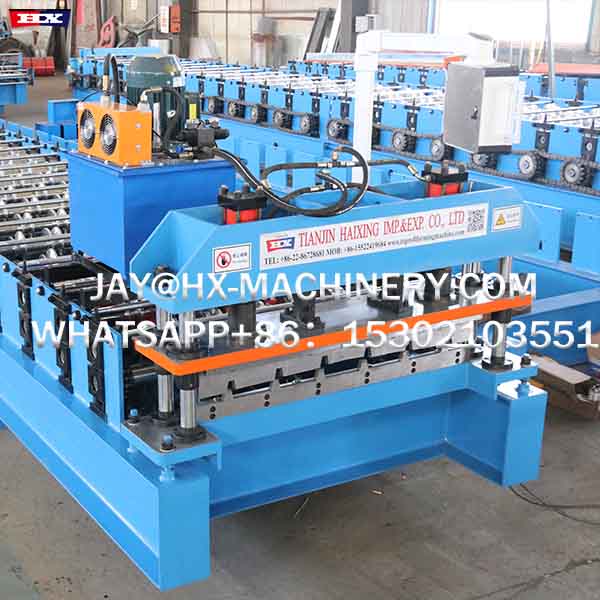

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
9
|
Diameter of the roller
|
Φ70mm
|
10
|
Weight
|
About 4300kgs
|
11
|
Main structure of the machine
|
350H beams
|
12
|
Processing precision
|
Within 1.0mm
|
13
|
Side panel of machine
|
16mm
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
16
|
Control system
|
PLC control (Delta)
|
17
|
Frequency system
|
Delta
|
18
|
Drive mode
|
Motor driver
|
19
|
Touch screen
|
Delta
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
21
|
Length Tolerance
|
±2mm
|
