Develivery time:20- 25days
Model:HX- 10Tons decoiler machine
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need
Warranty :2 years for machinery warranty|

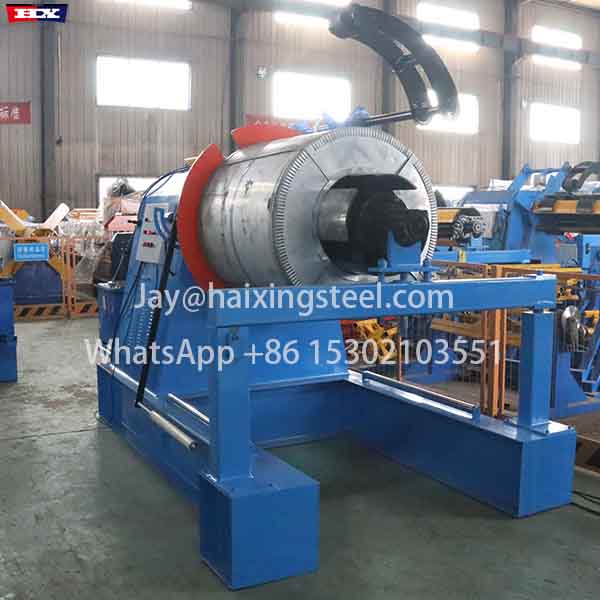

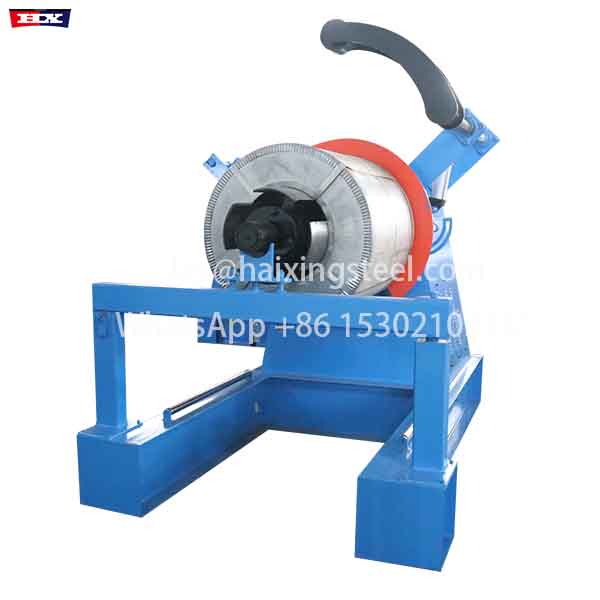

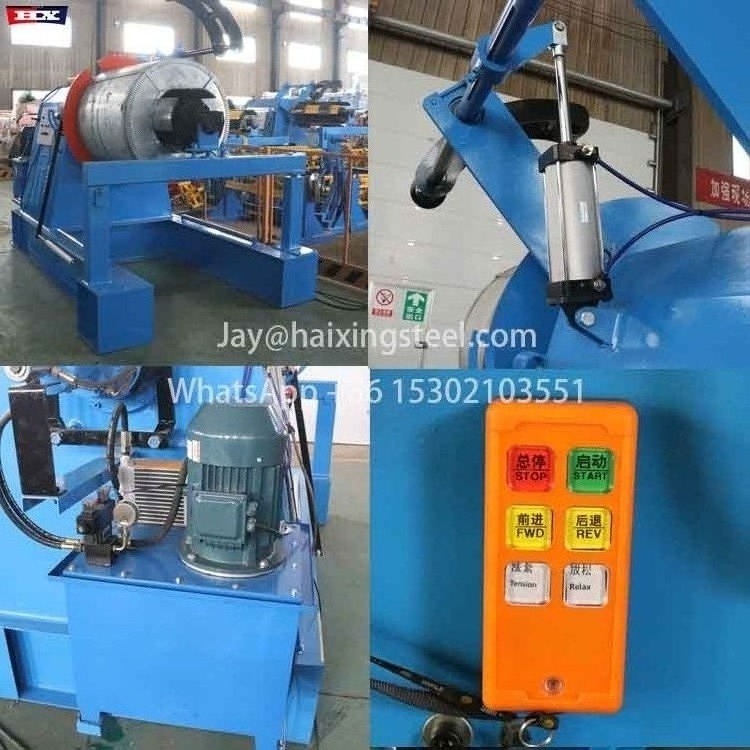

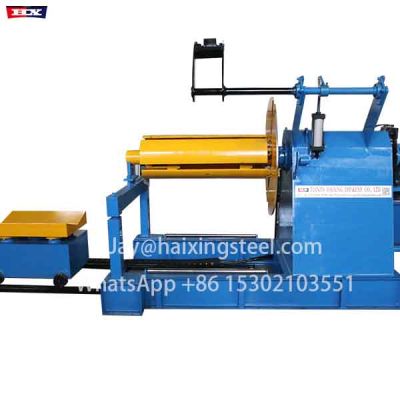

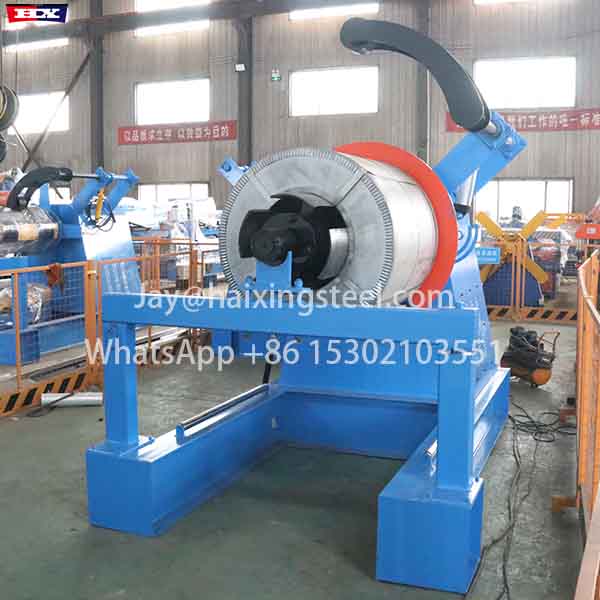

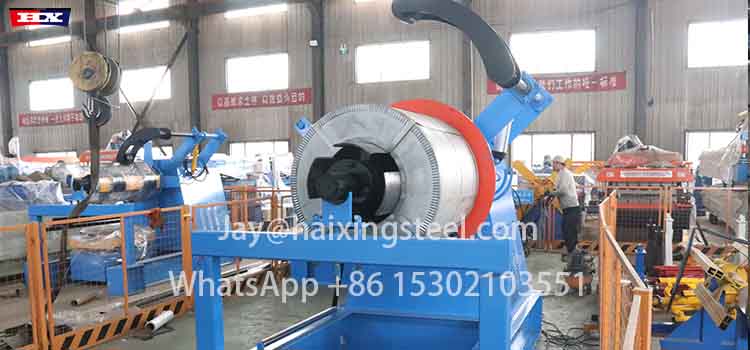

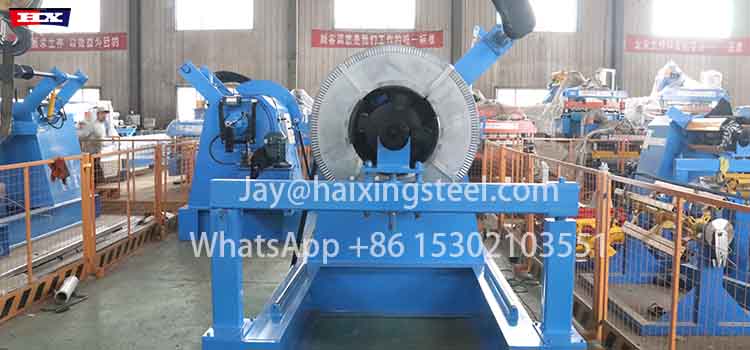

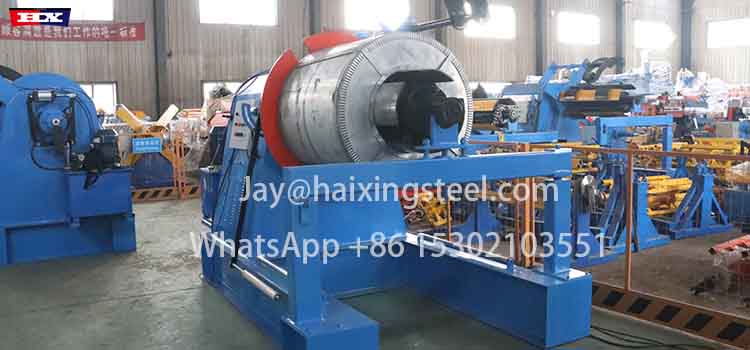

The 10-ton hydraulic uncoiler is a highly efficient and stable metal coil feeding equipment, specially designed for the medium and heavy plate processing industry. It is suitable for the automatic uncoiling of steel coils, aluminum coils and other materials. The hydraulic expansion system is adopted to ensure the stable clamping of the rolls, and in combination
Detail
|
No.
|
10 Tons hydraulic decoiler machine
|
|
|
1
|
Size
|
3.5*1.75*1.8meters
|
|
2
|
Weight
|
3.25Tons (Include loading trolley)
|
|
3
|
Main axis
|
200mm
|
|
4
|
Motor Power
|
5.5Kw
PM250 Steel reducer,Speed ratio 40:17 |
|
5
|
Pump Station Motor
|
5.5Kw ,Brand Lichao,Shanghai
|
|
6
|
Frequency Inverter
|
7.5Kw,Sanjing
|
|
7
|

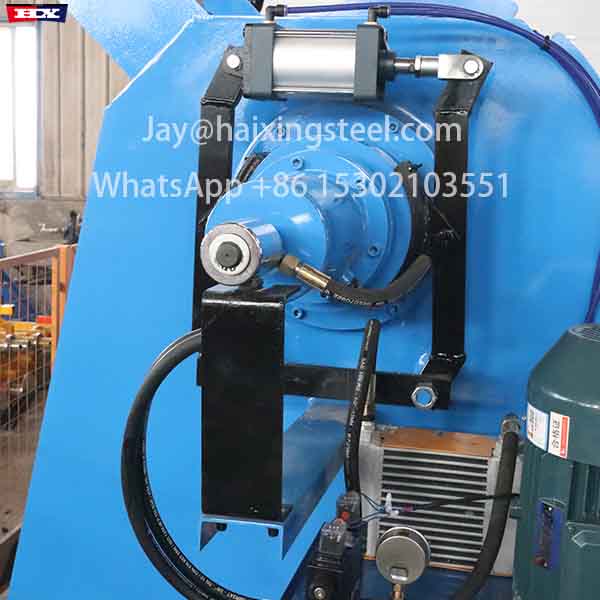

Cylinder type
|
125 Rotating cylinder
|
|
8
|
Bottom shelf
|
350 H Beams
|
|
9
|
The whole box iron plate
|
16mm
|
|
10
|
Max put weight
|
10Tons
|
|
11
|
Max coil width
|
1250mm(or according to your need)
|
|
12
|
Coil diameter
|
470-530mm or customer’s need
|
|
13
|
Control Box
|
Delta ,Taiwan
|
|
14
|
Power
|
380V 50HZ 3Phase or customer’s need
|
Quality assurance:
12-month warranty for the whole machine
Technical support:
7×24-hour emergency response:
✓ Telephone technical support
✓ Email remote diagnosis
✓ Video conference guidance
Maintenance service:
Free fault repair within two years
Lifetime paid maintenance service
