Develivery time:20- 25days
Model:HX- 10Tons decoiler machine
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need
Warranty :2 years for machinery warranty|

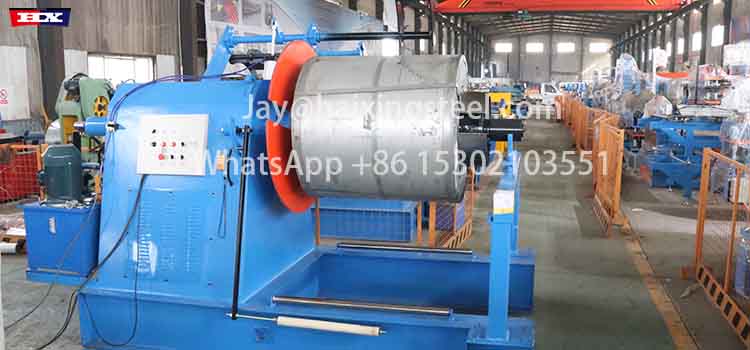

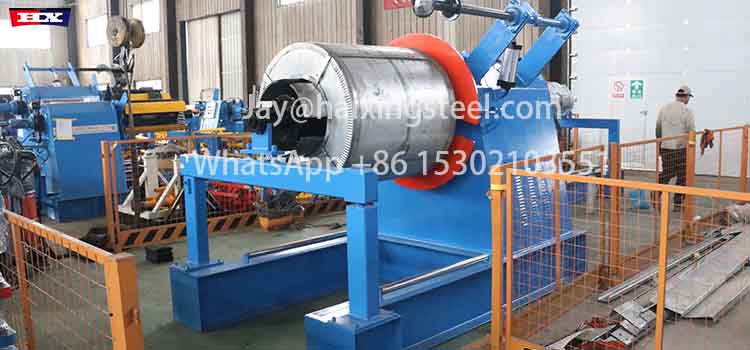

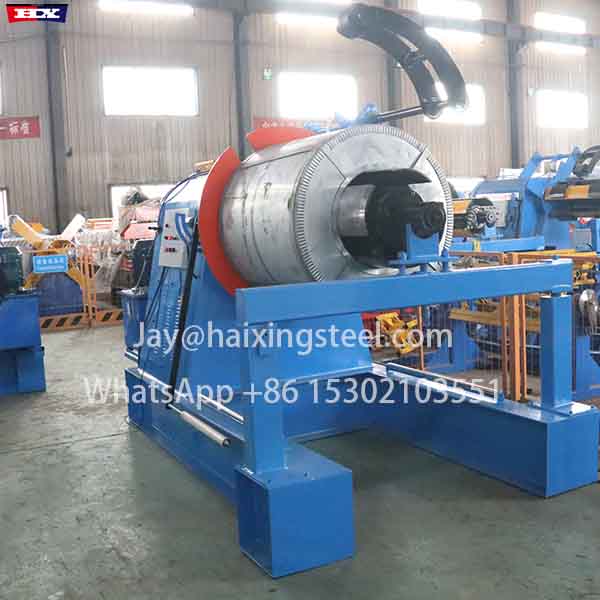

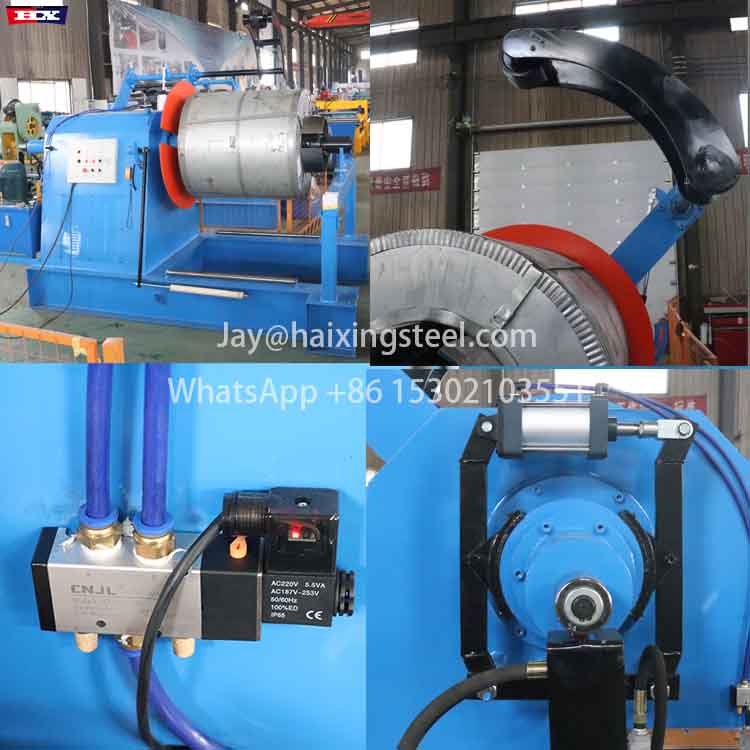

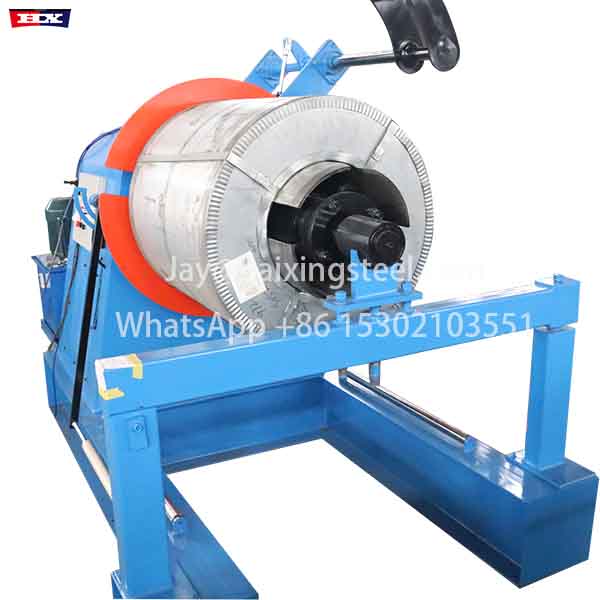

The 10-ton hydraulic uncoiler is an efficient and stable metal coil feeding equipment designed for the medium and thick plate processing industry. It adopts a hydraulic tensioning system to ensure the stable clamping of the coil, and is suitable for the automatic uncoiling of various materials such as steel coils and aluminum coils. The equipment has the characteristics of strong load-bearing capacity and stable operation. It uses hydraulic expansion technology to achieve uniform and reliable clamping force. At the same time, it is equipped with an automatic centering device to ensure accurate positioning of the material. The modular design makes maintenance easier and can meet the continuous processing needs of various metal coils.
Detail
|
No.
|
10 Tons hydraulic decoiler machine
|
|
|
1
|
Size
|
3.5*1.75*1.8meters
|
|
2
|
Weight
|
3.25Tons (Include loading trolley)
|
|
3
|
Main axis
|
200mm
|
|
4
|
Motor Power
|
5.5Kw
PM250 Steel reducer,Speed ratio 40:17 |
|
5
|

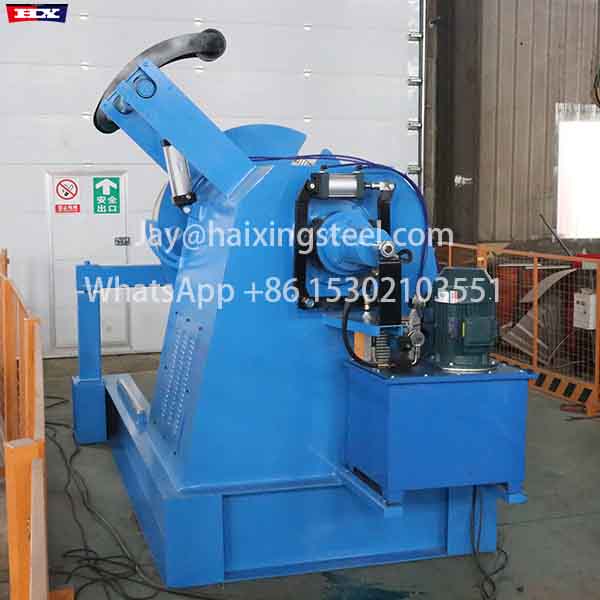

Pump Station Motor
|
5.5Kw ,Brand Lichao,Shanghai
|
|
6
|
Frequency Inverter
|
7.5Kw,Sanjing
|
|
7
|
Cylinder type
|
125 Rotating cylinder
|
|
8
|
Bottom shelf
|
350 H Beams
|
|
9
|
The whole box iron plate
|
16mm
|
|
10
|
Max put weight
|
10Tons
|
|
11
|
Max coil width
|
1250mm(or according to your need)
|
|
12
|
Coil diameter
|
470-530mm or customer’s need
|
|
13
|

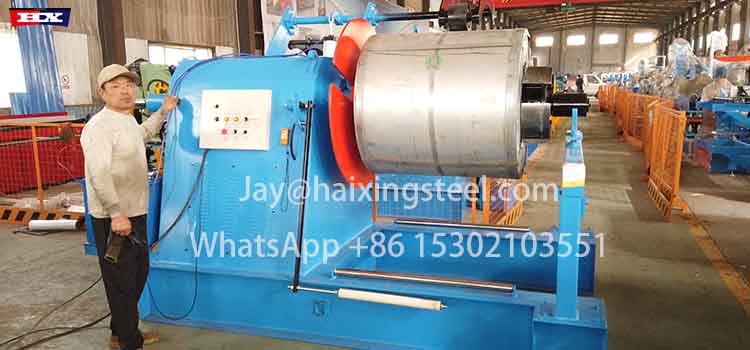

Control Box
|
Delta ,Taiwan
|
|
14
|
Power
|
380V 50HZ 3Phase or customer’s need
|
Quality assurance:
12-month warranty for the whole machine
Technical support:
7×24-hour emergency response:
✓ Telephone technical support
✓ Email remote diagnosis
✓ Video conference guidance
Maintenance service:
Free fault repair within two years
Lifetime paid maintenance service
