1035ibr roof sheet making machine
1035ibr roof sheet making machine 1035ibr roof sheet making machine 1035ibr roof sheet making machine 1035ibr roof sheet making machine 1035ibr roof sheet making machine

1035ibr roof sheet making machine

Product ID : HX-1035
Product Attributes :

Product Attributes :



Various shapes can be customized, beautiful version



Fast production speed and high work efficiency



Automatic control to reduce labor costs



Processed by stable operation, high precision and long service life.



Email:jay@hx-machinery.com

WhatsApp+86:15302103551

Product Description

ibr roof sheet making machine

Our 1035IBR roof sheet making machines exemplify engineering excellence through robust construction and precision manufacturing. Built with reinforced steel frames and precision-machined forming stations, these machines guarantee consistent profile accuracy and superior panel quality. The integrated PLC control system enables seamless operation with automatic length measurement and cutting precision. Significant advantages include high production output (reaching 45-50 meters/minute), minimal material waste through optimized design, quick tooling adjustments for different specifications, and exceptionally low maintenance requirements. Energy-efficient operation reduces power consumption while maintaining peak performance. Each machine comes with complete installation guidance, operator training, and ongoing technical support to ensure optimal performance in your ibr roof sheet making machine

ibr roof sheet making machine

ibr roof sheet making machine

ibr roof sheet making machine





Come and add WhatsApp for consultation, exclusive customer service online answers, limited-time discounts are waiting for you!



ibr roof sheet making machine

Detail

ibr roof sheet making machine

ibr roof sheet making machine

ibr roof sheet making machine

No.
ibr roof sheet making machine
1
Suitable to process
Color alu-zinc steel coil
2
Roller
AG Panel : 12 Rows
R panel/Pbr Panel :15Rows
3
Dimensions
6.75*1.6*1.8m
4
Motor Power
4Kw
5

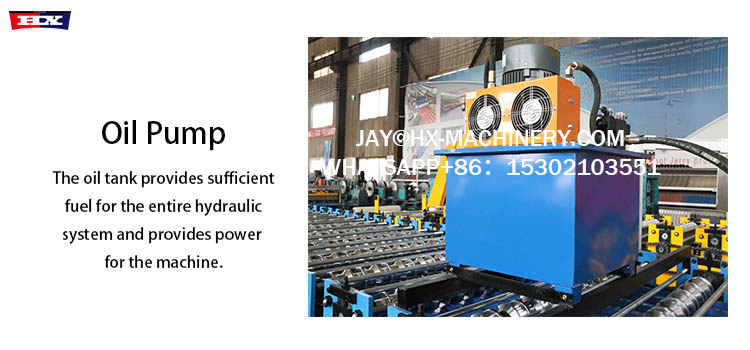

Pump Station Motor
4Kw.Lichao Brand
6
Thickness of the plate
0.3-0.8mm
7
Productivity
10-15m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ70mm
10
Weight
About 4300kgs
11
Main structure of the machine
350H beams
12
Processing precision
Within 1.0mm
13

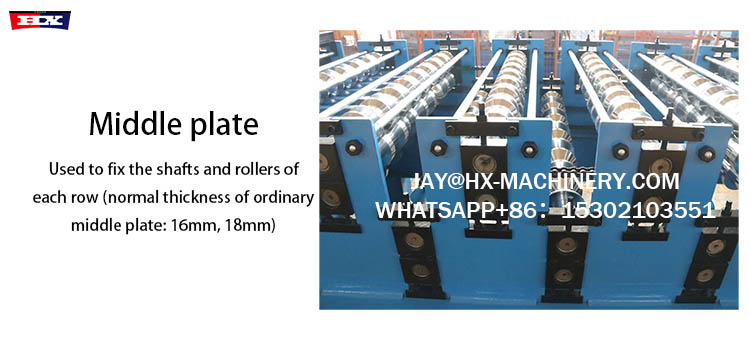

Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer’s need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Motor driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm



steel roof machine

metal roof making machine

Q: Why choose us?



28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment



Customized high-end equipment, providing professional design and personalized solutions



High cost-effective choice, combining excellent performance and competitive advantages



Serving 150+ countries around the world, your most reliable roll forming equipment partner

Q: What services are provided before placing an order?

We provide a full range of pre-sales technical support, including:

Personalized solution design

Professional technical parameter configuration

Complete delivery process description

Issuance of factory inspection invitation letter, on-site factory inspection
