Model：HX-double
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use
Double roof sheet making machine suppliers
According to different customer demands, we offer personalized double-layer roll forming machine customization services. From roller configuration to control systems, we tailor exclusive solutions to help you achieve dual breakthroughs in production efficiency and product quality
Detail
|

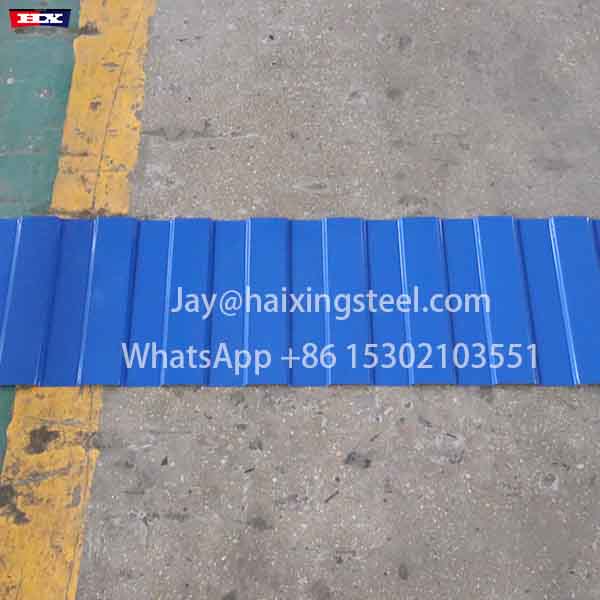

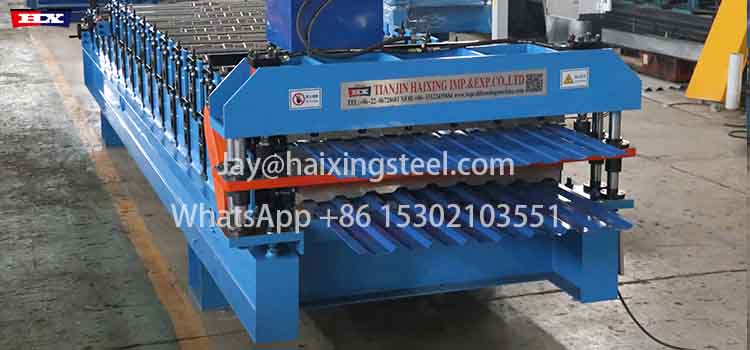

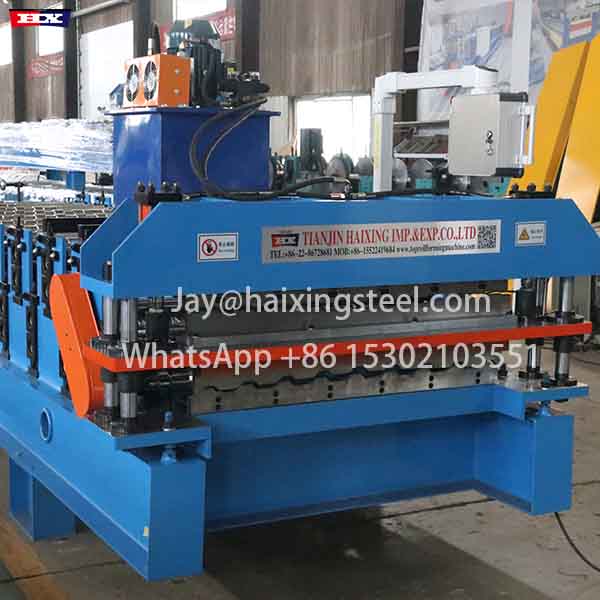

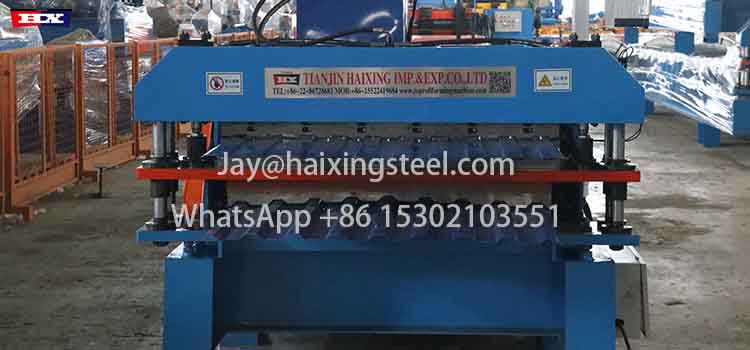

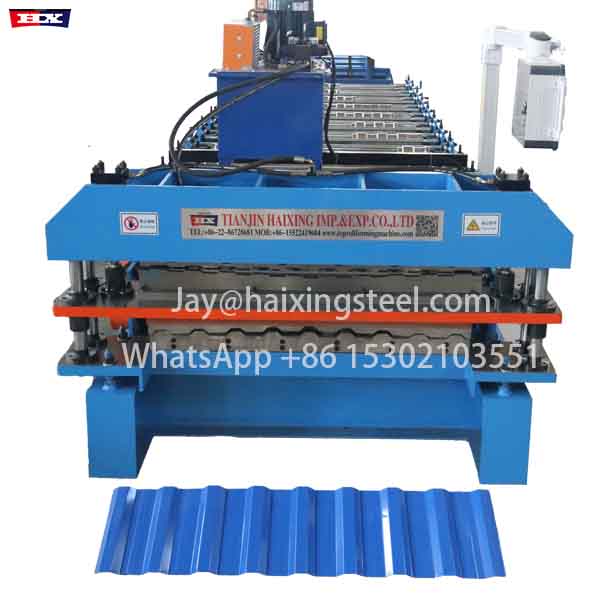

double metal roof tile making machine
|
||
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

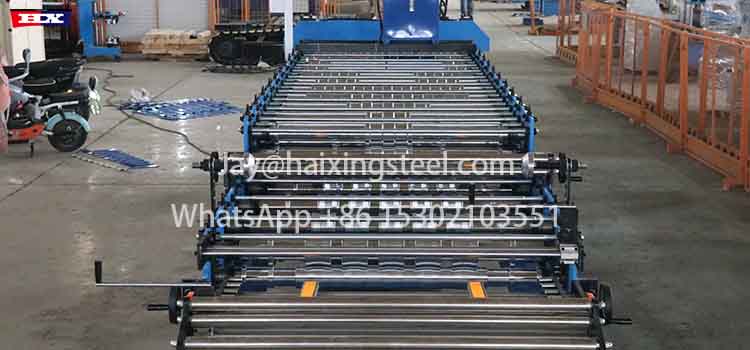

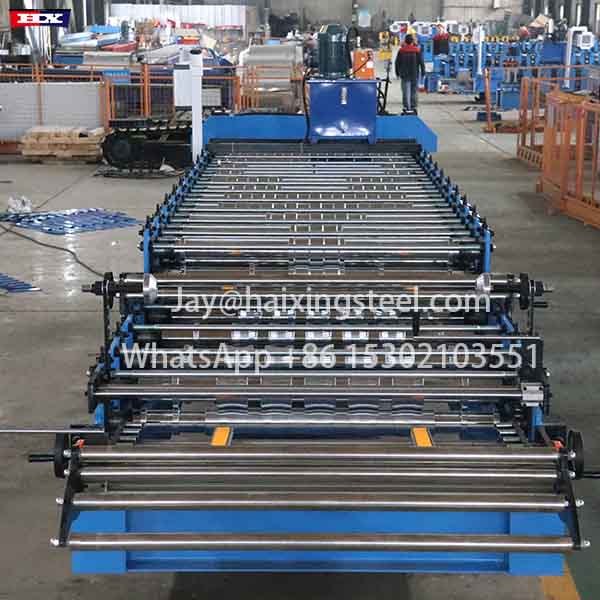

Roller
|
AG Panel : 15 Rows
R panel/Pbr Panel :18Rows
|
|
3
|
Dimensions
|
8.9*1.8*1.8m
|
|
4
|
Motor Power
|
5.5Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 70000kg
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|

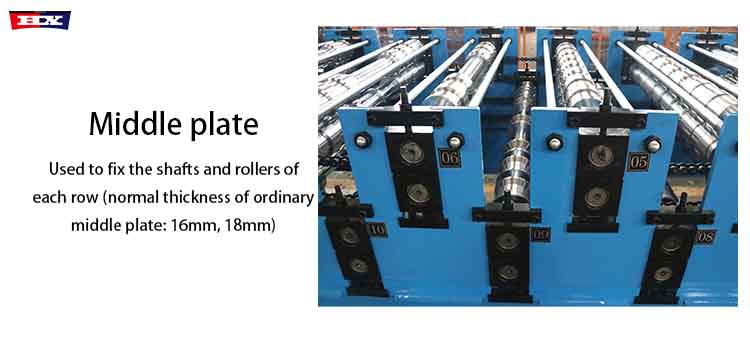

Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
220V 50Hz 1phases or as customer’s need
|
|
16
|

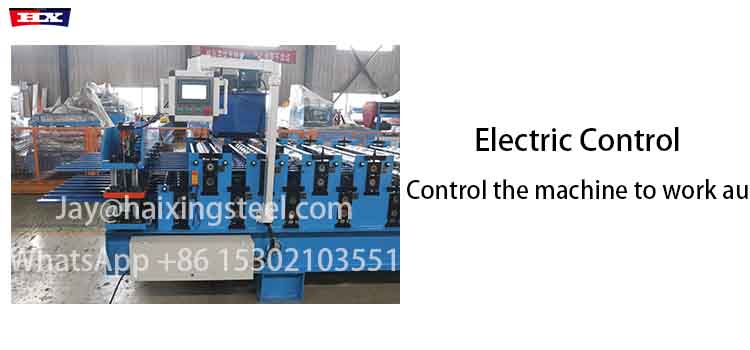

Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|

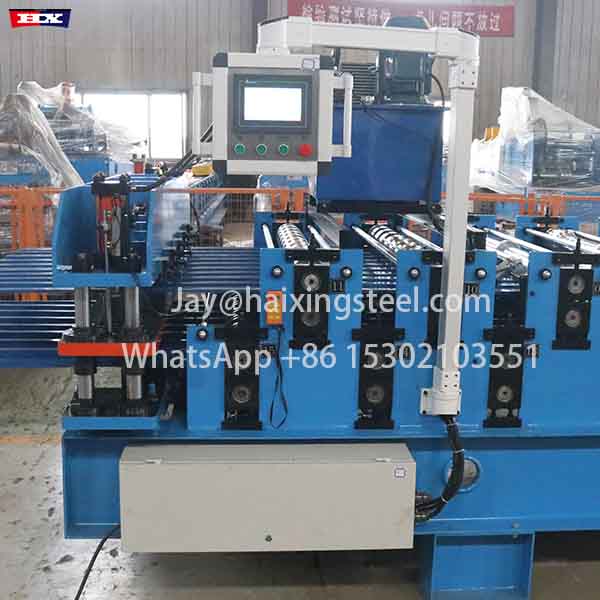

Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Professional Corporate Version
TIANJIN HAIXING - Your Reliable Industrial Partner
• Comprehensive Warranty: 2-year protection with lifetime technical support
• Guaranteed Delivery: Within 25 days after deposit confirmation
• Service Commitment: 24 months free maintenance with lifetime service options
• Hands-on Training: Factory visits include equipment installation guidance and operator training
