Product Attributes :
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email:jay@hx-machinery.com
WhatsApp+86：15302103551

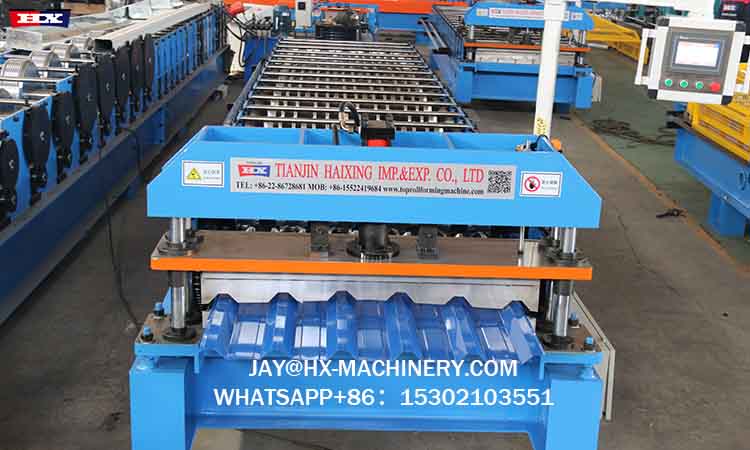

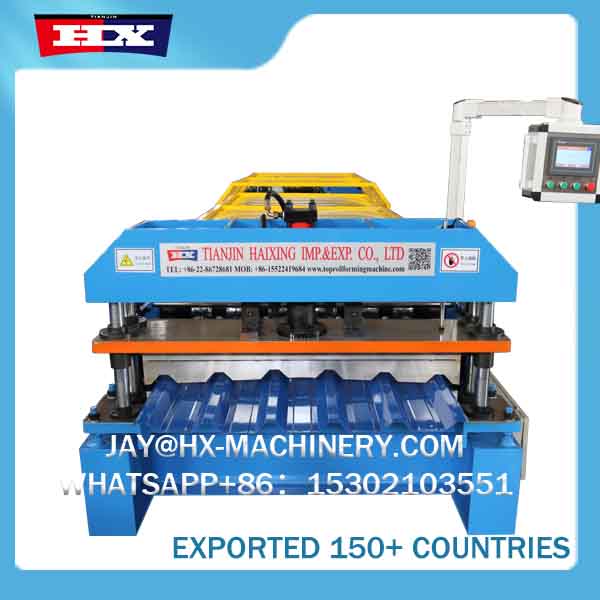

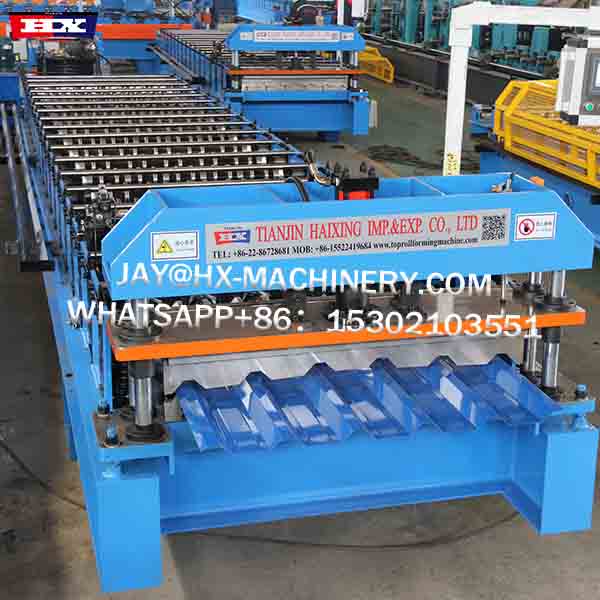

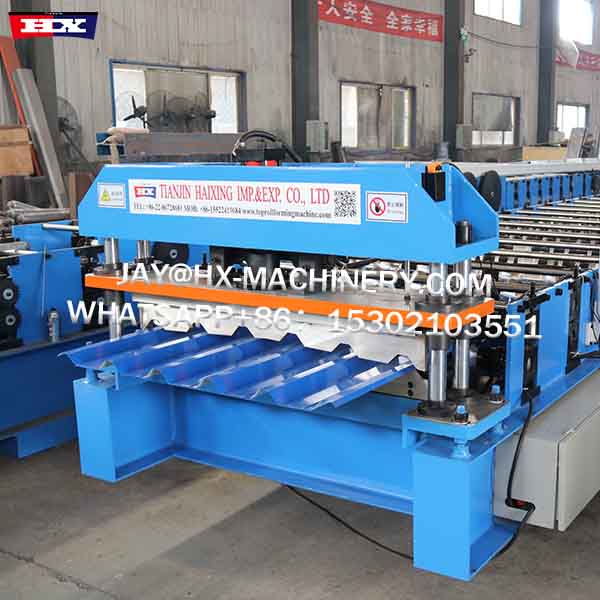

TP40 metal roof sheet making machine
Our TP40 roof sheet machine features innovative dual-pressure roll system that ensures perfect profile formation with minimal material stress. The machine boasts German-engineered guide mechanisms and Japanese servo motors for exceptional precision. Key benefits include: automatic fault detection system, production capacity of 55 meters/minute, precision cutting with ±0.3mm tolerance, and energy recovery technology that reduces power consumption by 30%. The thermally stabilized frame maintains accuracy across varying operating conditions
TP40 metal roof sheet making machine
Detail
TP40 metal roof sheet making machine
|
No.
|
TP40 metal roof sheet making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

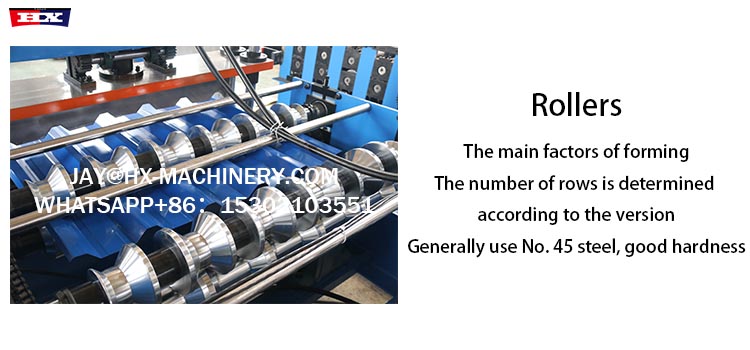

Roller
|
18 Rows
|
|
3
|
Dimensions
|
8.1*1.65*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Q: Why choose us?
28 years of industry experience (since 1996), leading the quality benchmark of roof roll forming equipment
Customized high-end equipment, providing professional design and personalized solutions
High cost-effective choice, combining excellent performance and competitive advantages
Serving 150+ countries around the world, your most reliable roll forming equipment partner
Q: What services are provided before placing an order?
We provide a full range of pre-sales technical support, including:
Personalized solution design
Professional technical parameter configuration
Complete delivery process description
Issuance of factory inspection invitation letter, on-site factory inspection
