Model：HX-glazed
Delivery time: 25-30 working days
Payment method: bank transfer or letter of credit
Warranty period: 2 years
Advantages: Automation, easy to use

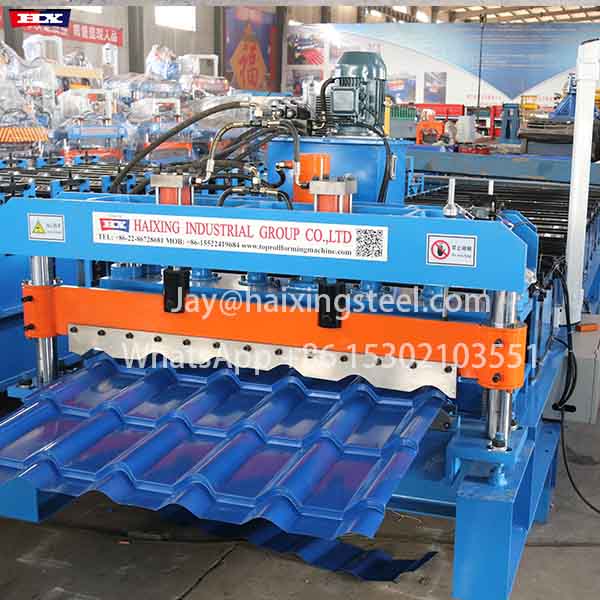

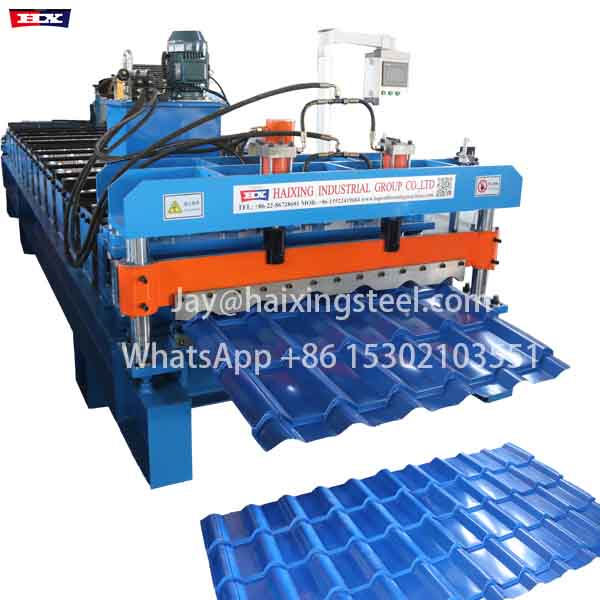

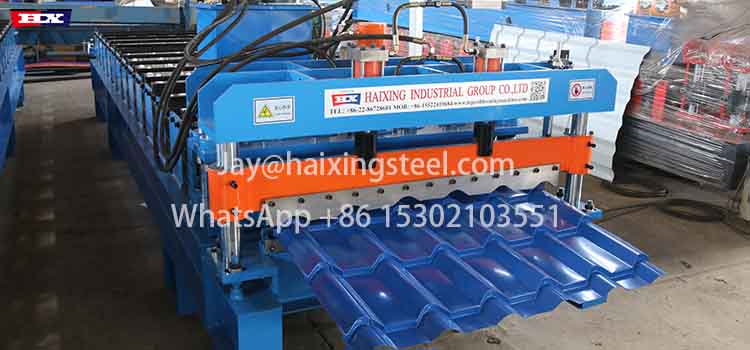

Glazed roof sheet roll forming machine

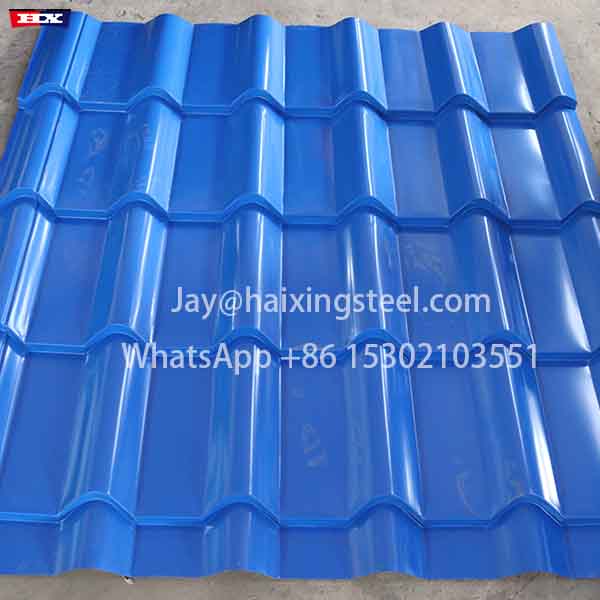

Selected high-quality materials and precise structural design ensure the long-term stable operation of the equipment and guarantee the high-quality output of glazed products
Detail
|
No.
|
Glazed roof sheet roll forming machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|

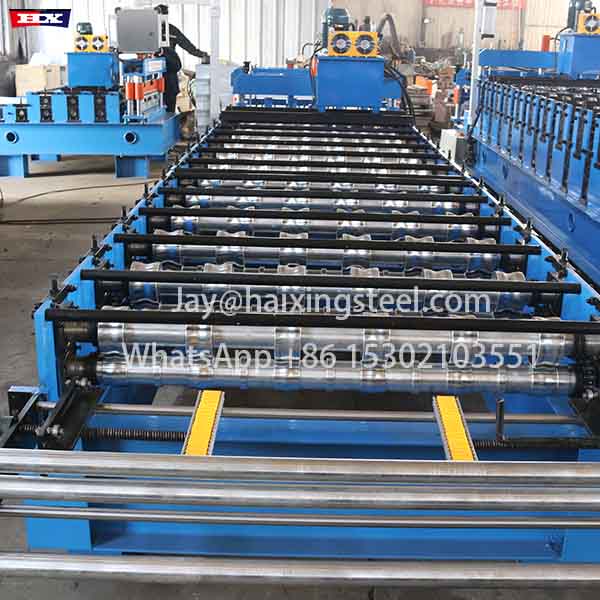

Roller
|
11-13Rows
|
|
3
|
Dimensions
|
5.8*1.55*1.6m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|

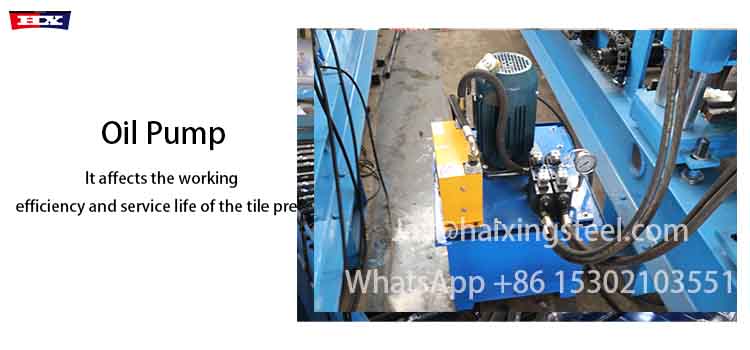

Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 3200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
TIANJIN HAIXING - Your Reliable Industrial Partner
• Comprehensive Warranty: 2-year protection with lifetime technical support
• Guaranteed Delivery: Within 25 days after deposit confirmation
• Service Commitment: 24 months free maintenance with lifetime service options
• Hands-on Training: Factory visits include equipment installation guidance and operator training
